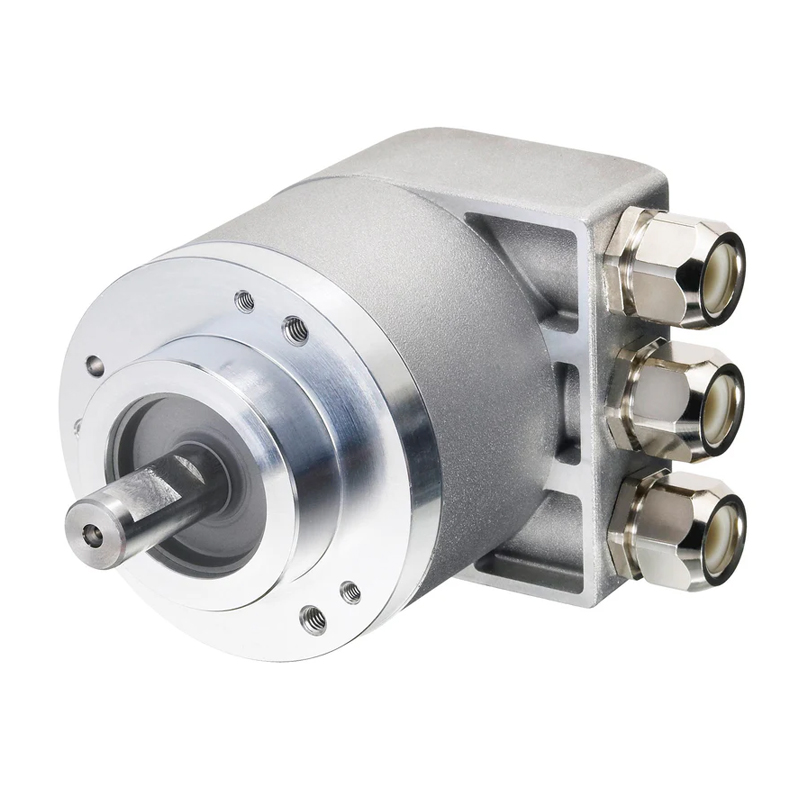

Hengstler AC58 Series 0566140 Optical Absolute Rotary Encoder - Binary Output, IP64, Flange Mount
The Hengstler AC58 Series 0566140 is an industrial-grade optical absolute rotary encoder delivering high-precision binary-coded position feedback for automation, robotics, and CNC machinery. It operates on a 10-30 VDC supply and features a robust IP64-rated housing for reliable performance in demanding environments.
Features
- Absolute optical encoder with binary code output for precise angular position detection.
- High-speed operation capable of up to 10,000 RPM for dynamic motion control applications.
- Wide operating voltage range of 10-30 VDC for industrial PLC and control system compatibility.
- Robust IP64-rated housing ensures protection against dust and water splashes.
- Extended operating temperature range from -40°C to +85°C for harsh environment reliability.
Out of stock
The Hengstler AC58 Series 0566140 utilizes advanced optical sensing technology to provide absolute position feedback without the need for a homing sequence after power loss. Its binary-coded output delivers a unique digital value for each shaft position, ensuring accurate and reliable data for closed-loop control systems.
Engineered for industrial durability, the encoder’s flange-mounted design provides secure mechanical integration, while its IP64 rating protects the internal optics from contaminants. The wide supply voltage and temperature ranges make it a versatile component for high-performance automation, robotics, CNC machining, and material handling equipment.
Additional Information
| Weight | 0.4 kg |
|---|---|
| Dimensions | 6.65 × 6.35 cm |
