SKU: DRFC-2462
📋 GST Invoice Available

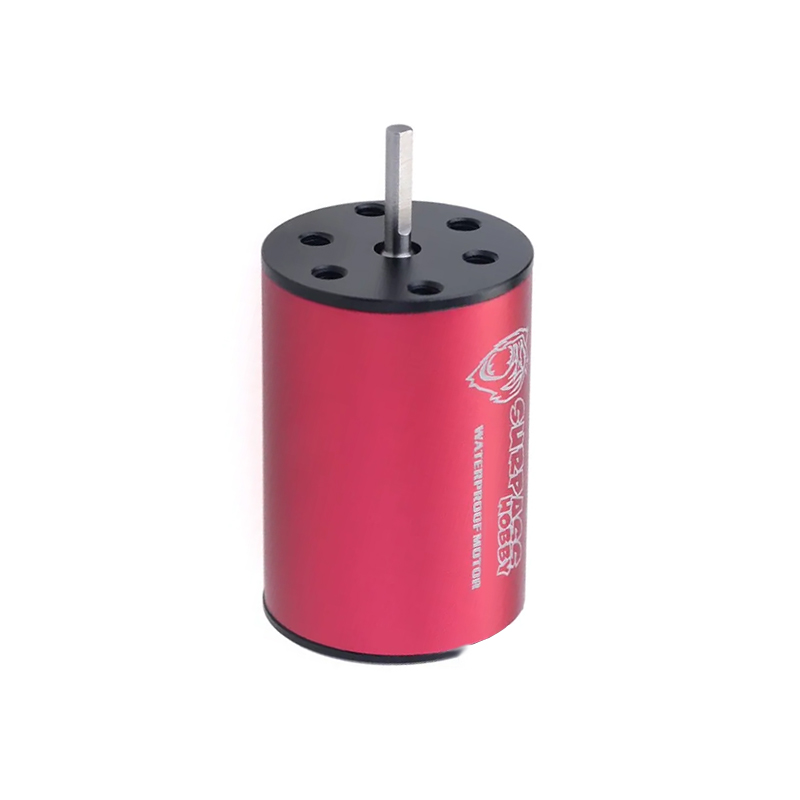

Surpass Hobby 2030 Brushless Motor (4500KV) - Red & Black

₹1,159.00 (Inclusive of all taxes)
Out of Stock

The Surpass Hobby 2030 is a compact 4500KV brushless motor featuring a waterproof design, engineered for high-RPM performance in small-scale FPV drones and micro RC vehicles compatible with 2S-3S LiPo battery systems.

Features

  • High-speed 4500KV brushless motor for rapid acceleration and top-end RPM.
  • Waterproof construction protects internal components from moisture and debris.
  • Compact 2030 motor size (20mm diameter, 30mm height) ideal for lightweight builds.
  • Durable red and black housing with robust internal bearings for longevity.
  • Supports 2-3S LiPo input voltage for micro drones and high-performance RC models.

Out of stock

Description

The Surpass Hobby 2030 brushless motor delivers high-RPM performance in a compact, durable package. Its 4500KV rating provides exceptional speed and throttle response, making it suitable for micro FPV racing drones, CineWhoops, and small-scale RC vehicles where power-to-weight ratio is critical.

Engineered with a waterproof housing, the motor is protected against environmental ingress, ensuring reliable operation in damp or dusty conditions. The robust construction and precision-balanced components minimize vibration for smooth flight characteristics and extended service life.

Key Features

  • High-KV 4500 RPM/V brushless design optimized for speed and acceleration.
  • Fully waterproof motor casing for all-weather and off-road durability.
  • Precision-wound stator and high-grade magnets for efficient power delivery.
  • Low-resistance gold-plated connectors ensure optimal electrical conductivity.
  • Dual ball bearing system supports smooth rotation and reduces axial play.
  • Lightweight aluminum alloy housing aids in thermal dissipation.
  • Compatible with standard 1.5mm or 2mm motor shaft prop adapters.

Applications

  • High-performance 2-3 inch micro FPV racing and freestyle drones.
  • Indoor and outdoor CineWhoop builds requiring waterproof components.
  • Small-scale RC car and boat applications needing high-RPM brushless power.
  • Lightweight DIY micro quadcopters and experimental UAV platforms.
  • FPV drone builds where compact motor size and high KV are prioritized.

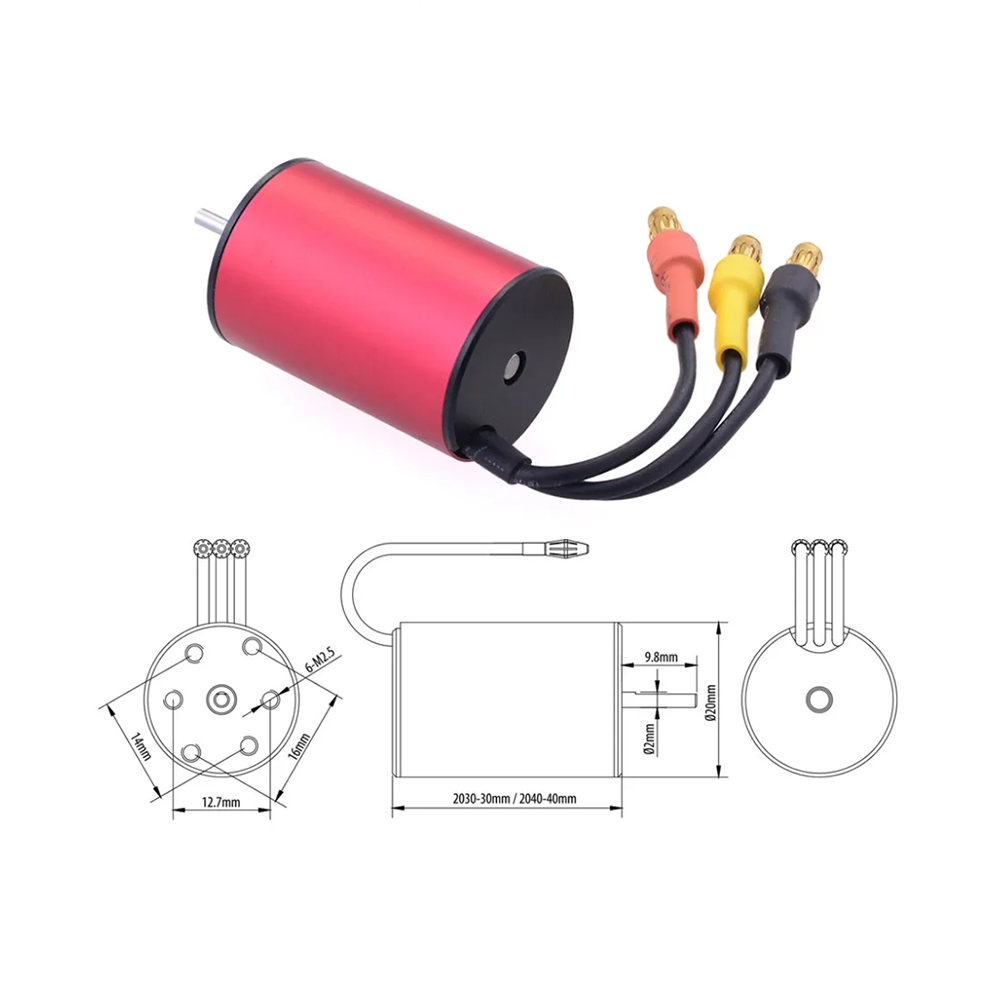

Technical Specifications

Motor ModelSurpass Hobby 2030
Motor TypeBrushless Outrunner
KV Rating4500 KV
Stator Size20mm x 30mm
WaterproofYes
Max Voltage11.1V (3S LiPo)
Max Current (Continuous)~12A
Max Power~130W
Shaft Diameter1.5mm
Mounting Hole PatternM2 x 12mm x 9mm
Weight (approx.)18g
ColorRed & Black

Frequently Asked Questions

What is the recommended battery voltage for this 4500KV motor?

The Surpass Hobby 2030 4500KV motor is optimized for 2S to 3S LiPo battery packs (7.4V to 11.1V). Exceeding 3S (12.6V) is not recommended as it may overheat the windings and demagnetize the core. Always pair with a suitably rated ESC and monitor motor temperatures during initial flights.

Is this motor truly waterproof, and can it be submerged?

Yes, the motor features a waterproof sealed housing designed to protect against splashes, light rain, and dust ingress typical in off-road RC and damp FPV environments. It is not intended for prolonged submersion or high-pressure water jets. After exposure to moisture, allow the motor to dry completely before storage.

What propeller size is compatible with this 2030 4500KV motor?

This motor is best paired with small, lightweight propellers suitable for micro drones. For 2S setups, 2-3 inch bi-blade or tri-blade props (e.g., 2.5x2.5) are ideal. For 3S, use smaller, lower-pitch props (e.g., 2x3) to manage current draw. Always use a 1.5mm shaft adapter and secure the propeller nut firmly to prevent slippage at high RPM.

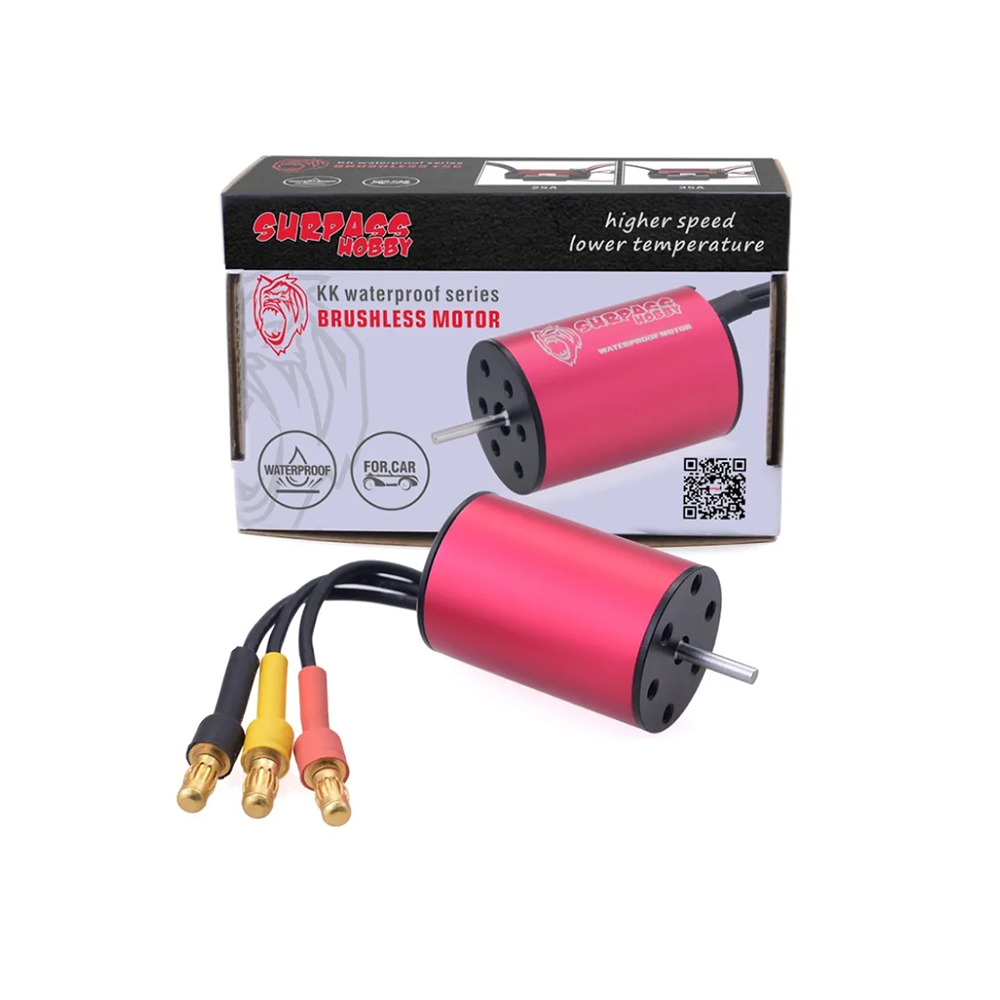

Package Includes

  • 1 x Surpass Hobby Waterproof 2030 Brushless Motor (4500KV) - Red & Black

Additional Information

Weight 0.06 kg
Dimensions 10 × 6 × 4 cm
