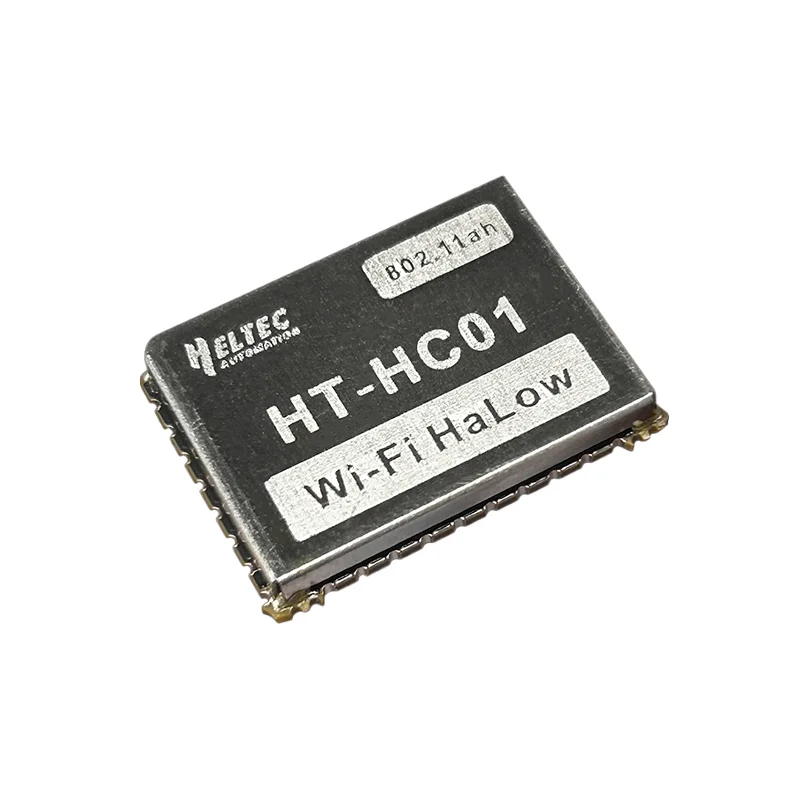

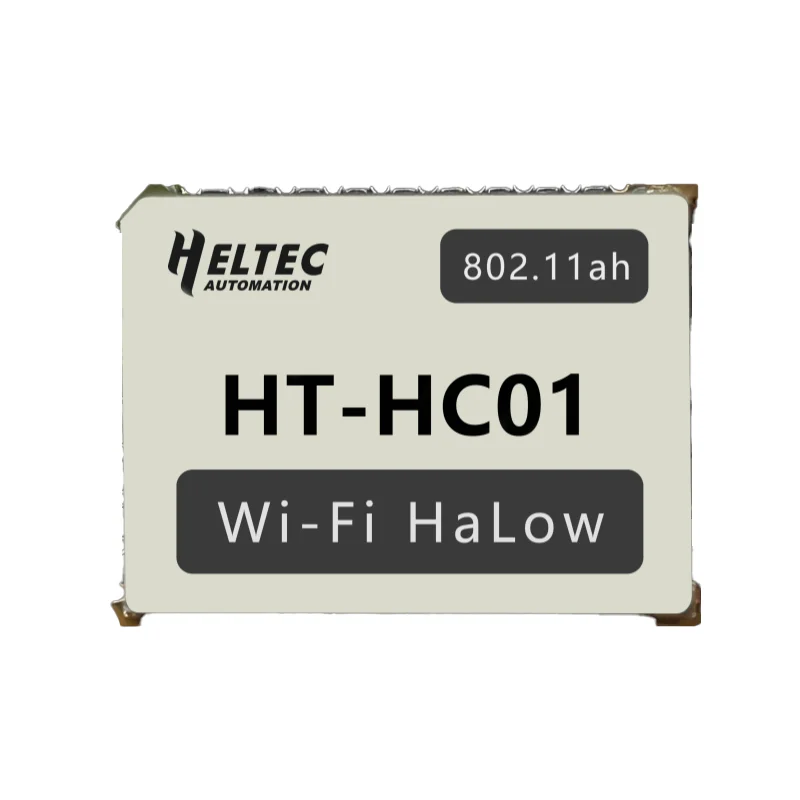

Heltec Automation Automation HT-HC01 WiFi HaLow Module 902-928MHz w/ TFT Display
The Heltec Automation Automation HT-HC01 is a long-range Wi-Fi HaLow (IEEE 802.11ah) module operating in the 902-928MHz band, designed for IoT applications requiring extended range up to 2km and low power consumption, featuring an onboard 1.14-inch TFT-LCD display for status monitoring.
Features
- Operates on 902-928MHz Wi-Fi HaLow (IEEE 802.11ah) for long-range IoT connectivity up to 1-2km.
- High output power of 21 dBm with integrated PA/LNA for robust signal transmission and reception.
- Supports multiple channel bandwidths (1/2/4/8 MHz) with a max data rate of 32.5 Mbps.
- Features ultra-low power hibernate mode with internal/external wake-up for battery-operated deployments.
- Integrated 1.14-inch TFT-LCD display provides immediate visual status and debugging feedback.
Out of stock
The Heltec Automation Automation HT-HC01 WiFi HaLow module leverages the IEEE 802.11ah standard in the 902-928MHz ISM band to deliver superior range and penetration compared to traditional 2.4GHz Wi-Fi. Its integrated high-linearity PA and LNA enable a strong 21 dBm output power, extending reliable data links up to 2 kilometers in line-of-sight conditions while maintaining low power consumption through advanced sleep and wake modes.

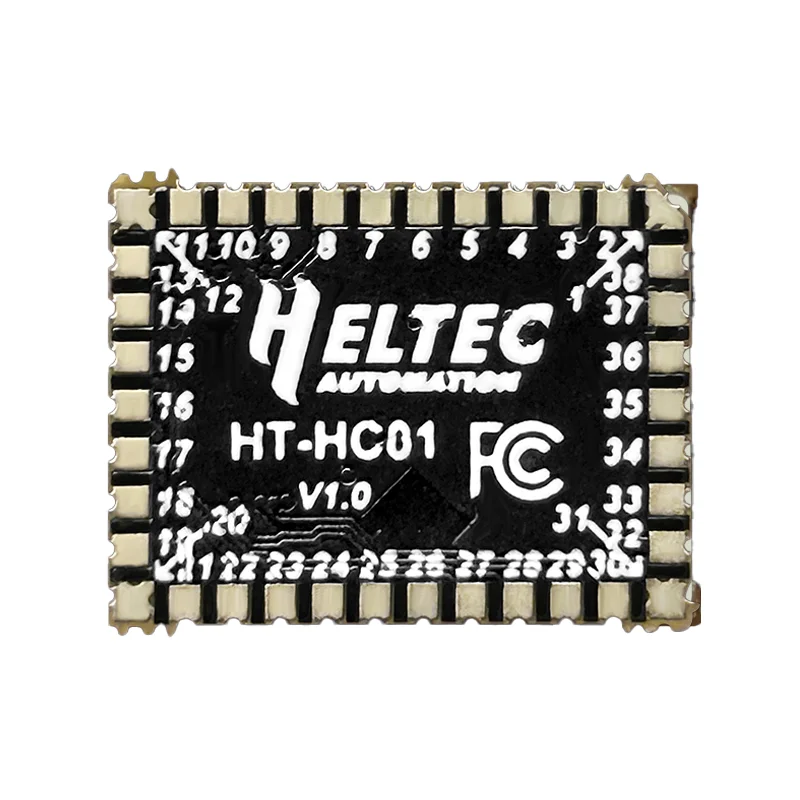

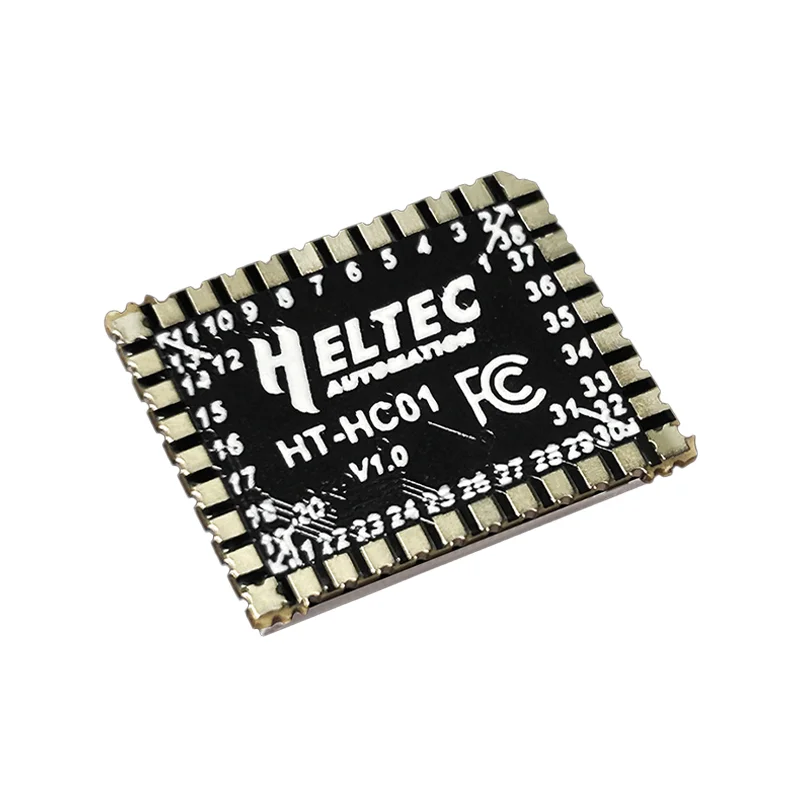

Designed for seamless integration into IoT systems, the module comes in a compact LLC package with 38 header pins, providing flexible connectivity via SDIO 2.0 and dual UART interfaces. The onboard 1.14-inch TFT display offers real-time operational feedback, simplifying development and field diagnostics. With robust security features and an operating temperature range of -40°C to 85°C, the HT-HC01 is built for demanding industrial, smart agriculture, and remote monitoring applications.
Additional Information
| Weight | 0.006 kg |
|---|---|
| Dimensions | 1.85 × 1.426 cm |
