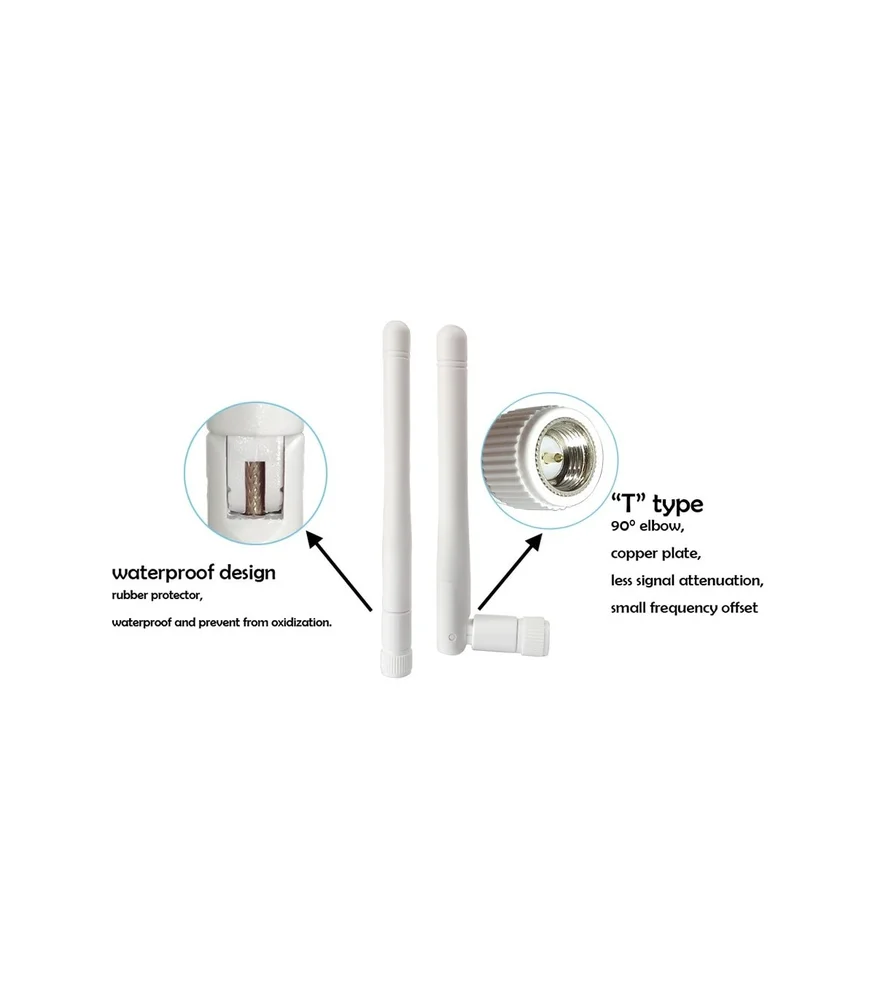

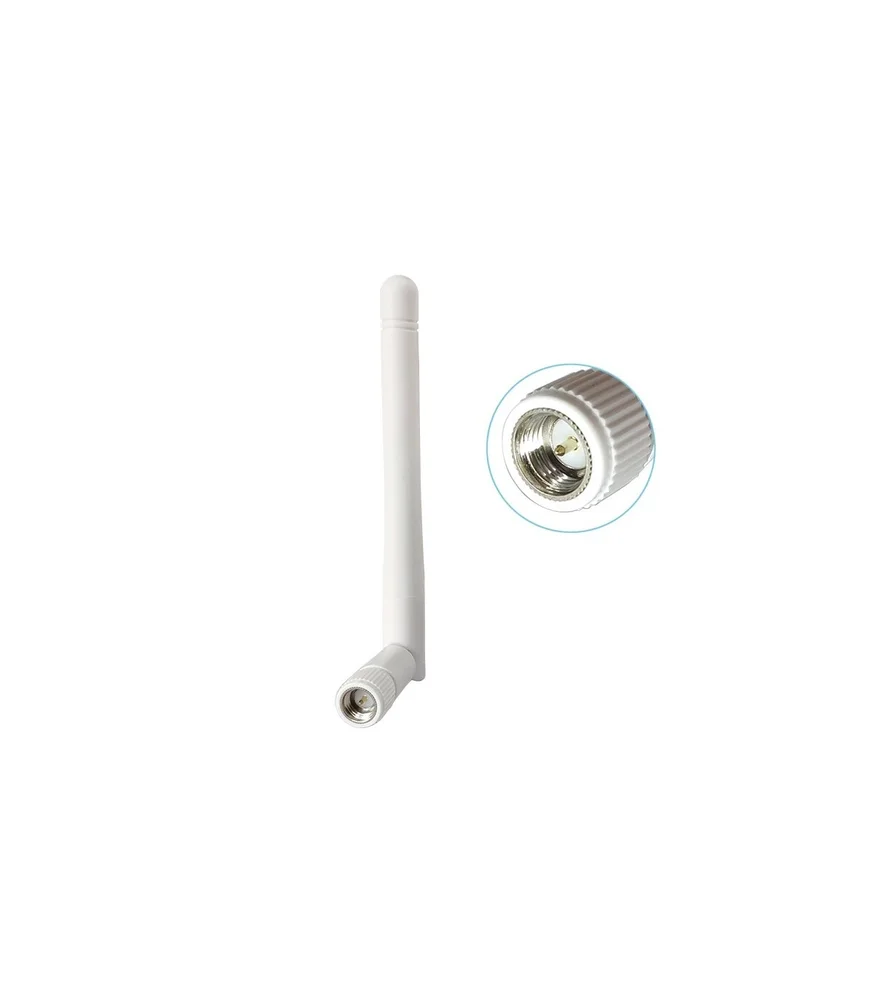

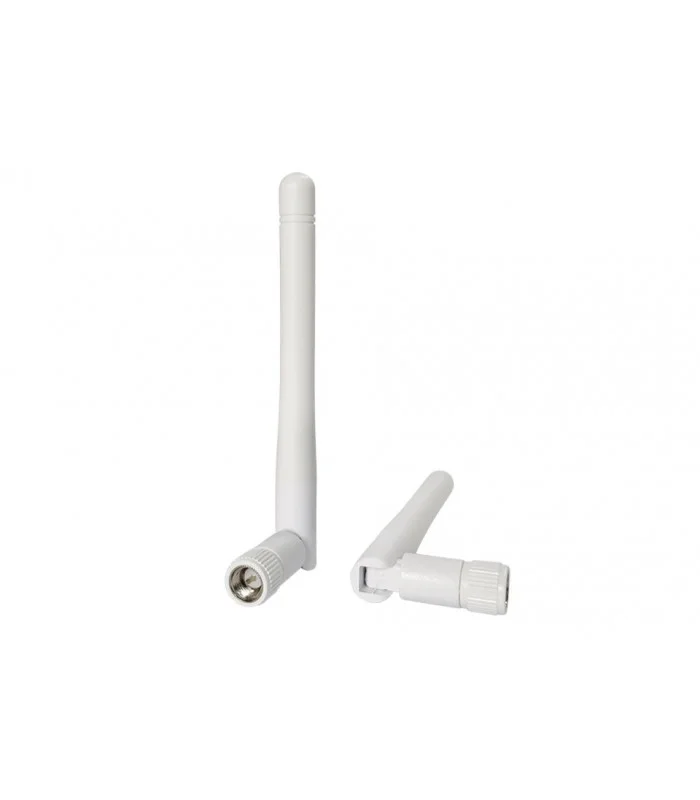

LoRa Antenna 868MHz 0.6dBi RP-SMA
A ¼-wave, 50-ohm RP-SMA LoRa antenna tuned for the 868MHz ISM band, providing a peak gain of 0.6dBi for extending the range of LoRaWAN nodes, gateways, and compatible wireless modules.
Features
- 868MHz Tuned LoRa Antenna: Optimized for the European 868MHz ISM band, ideal for LoRa, LoRaWAN, and other sub-1GHz wireless applications.
- 0.6dBi Peak Gain & Low VSWR: Provides a modest gain boost with a typical VSWR ≤1.9 for efficient RF power transfer and minimal signal reflection.
- RP-SMA Male Connector: Standard connector for direct compatibility with many LoRa modules, development boards, and wireless routers.
- Compact ¼-Wave Design: Small form factor suitable for space-constrained IoT devices, portable trackers, and embedded systems.
- Wide Temperature Range: Operates reliably from -20°C to +85°C for use in both indoor and challenging outdoor environments.
Out of stock
This 868MHz LoRa antenna is a fundamental RF component designed to enhance the wireless link budget of IoT transceivers. Its ¼-wave monopole design and 50-ohm impedance are engineered to match the output stage of common LoRa modules, ensuring efficient radiated power and improved receiver sensitivity.
With a peak gain of 0.6dBi and a low VSWR profile, it offers a reliable balance between omnidirectional coverage and signal strength, making it a practical choice for deploying sensor networks, asset trackers, and smart agriculture systems across the 868MHz band. The RP-SMA male connector provides a secure, screw-on interface for stable long-term connections.
Additional Information
| Weight | 0.008 kg |
|---|---|

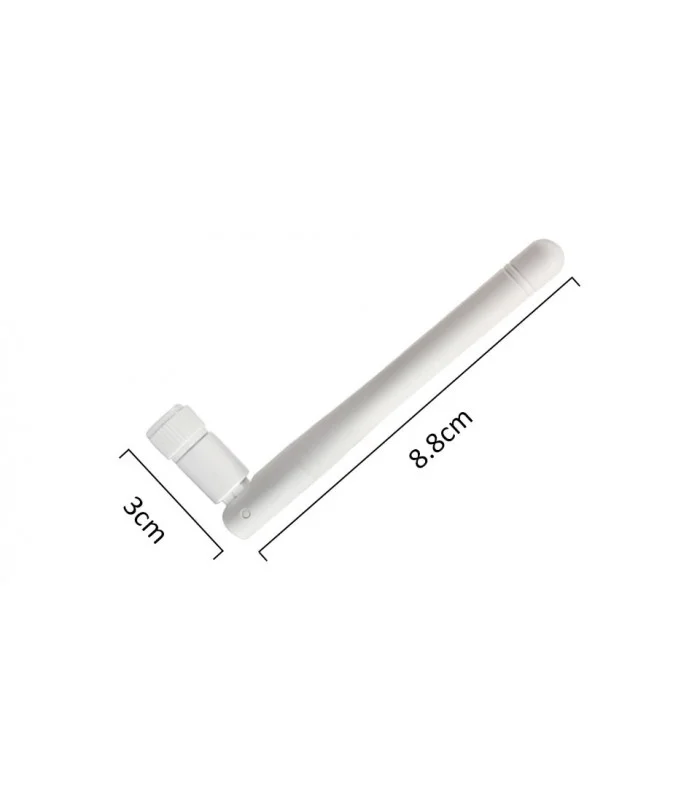

| Dimensions | 12 × 11 × 1 cm |
