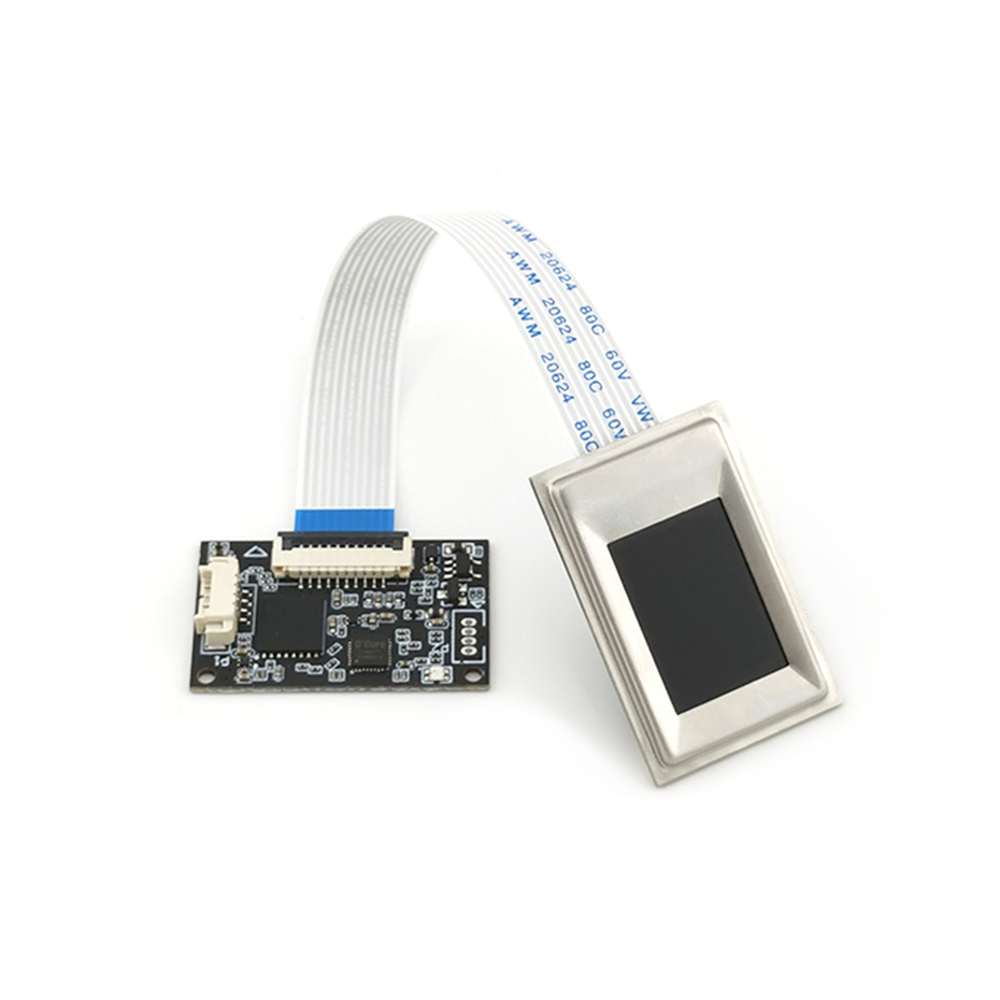

Grow R311 Fingerprint Module with USB & UART Interface
The Grow R311 Fingerprint Module is a compact biometric sensor offering USB and 3.3V TTL UART interfaces for integration with PCs, microcontrollers (Arduino, ESP32, Raspberry Pi), and embedded systems. It features a 256×360 pixel sensor array with 508 DPI resolution for reliable 1:1 verification and 1:N identification.
Features
- High-resolution 508 DPI optical sensor with 256×360 pixel array.

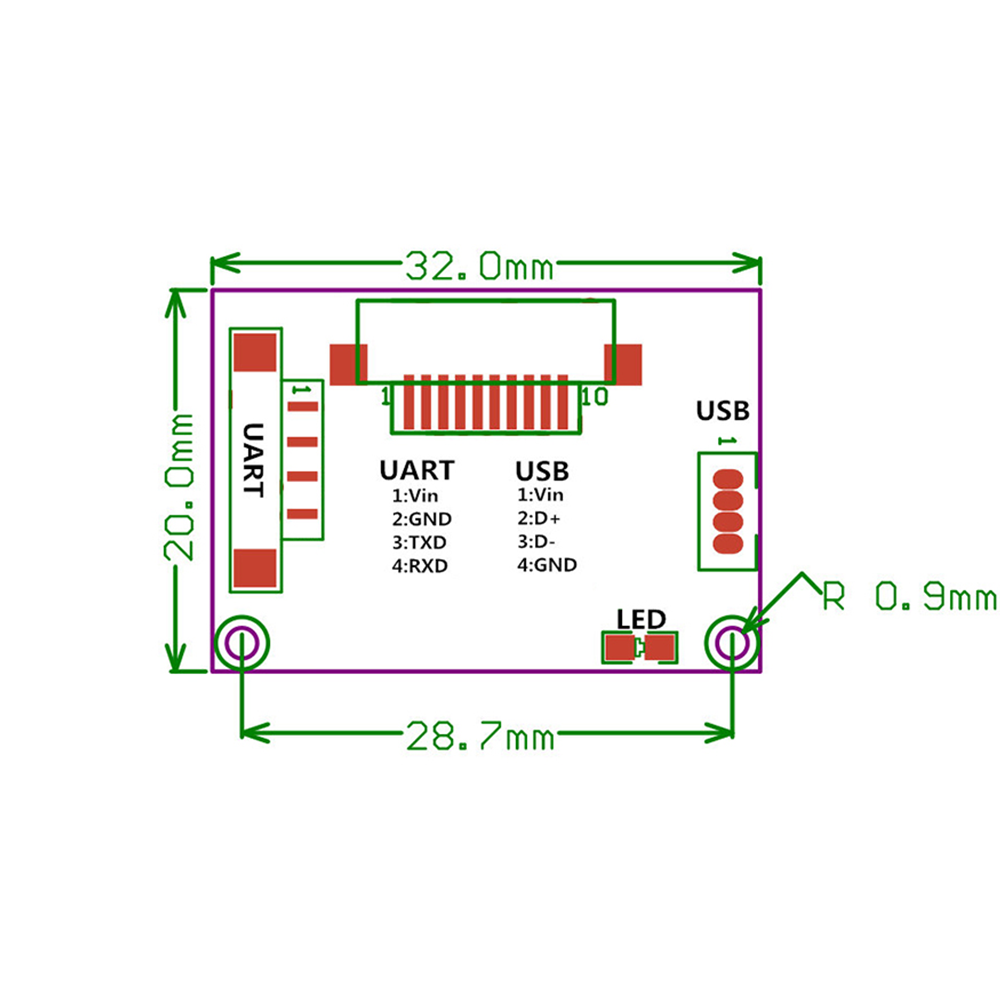

- Dual USB and 3.3V TTL UART (RS232) communication interfaces.
- Stores up to 1000 fingerprint templates with configurable security levels (1-5).

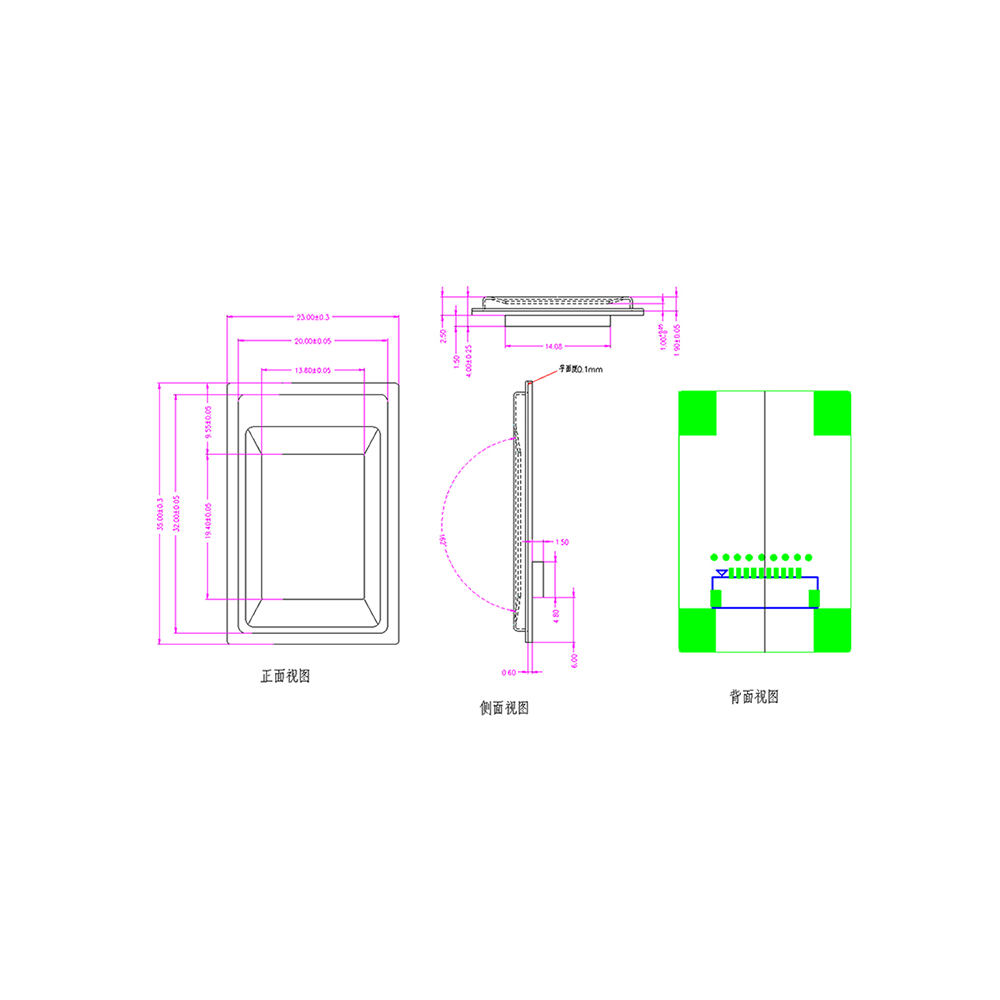

- Compact module dimensions of 35mm x 23mm x 1.5mm.
- Includes self-study function and high-speed identification algorithm.
Out of stock
The Grow R311 Fingerprint Module utilizes an optical imaging sensor with an effective collection area of 13.8mm x 19.4mm to capture high-fidelity fingerprint patterns. Its 508 DPI resolution ensures detailed ridge and valley mapping for accurate biometric matching. The module operates on a 4.2-6.0V DC supply and consumes approximately 40mA during active sensing and processing.
Communication is facilitated via a standard USB 2.0 port for direct PC connection or a 3.3V logic-level UART serial interface for embedded microcontroller integration (e.g., Arduino, STM32, ESP8266/32). The onboard firmware supports 1:1 verification and 1:N identification across its 1000-template database, with adjustable baud rates, device IDs, and security parameters for system customization.
Additional Information
| Weight | 0.2 kg |
|---|---|
| Dimensions | 3.5 × 2.3 × 0.15 cm |
