Grow GM65-S Barcode Scanner Module - UART/USB Interface, 0.10mm Resolution
The Grow GM65-S is a compact, high-resolution barcode scanner module supporting 1D and 2D symbologies, including QR codes and Data Matrix. It interfaces via UART or USB2.0, operates at 3.3V DC, and is designed for integration into embedded systems, POS terminals, and industrial automation equipment.
Features
- High-resolution scanning at 0.10mm (4mil) for precise barcode reading.
- Dual UART and USB2.0 interfaces for flexible system integration.
- Supports a comprehensive range of 1D and 2D barcode formats.

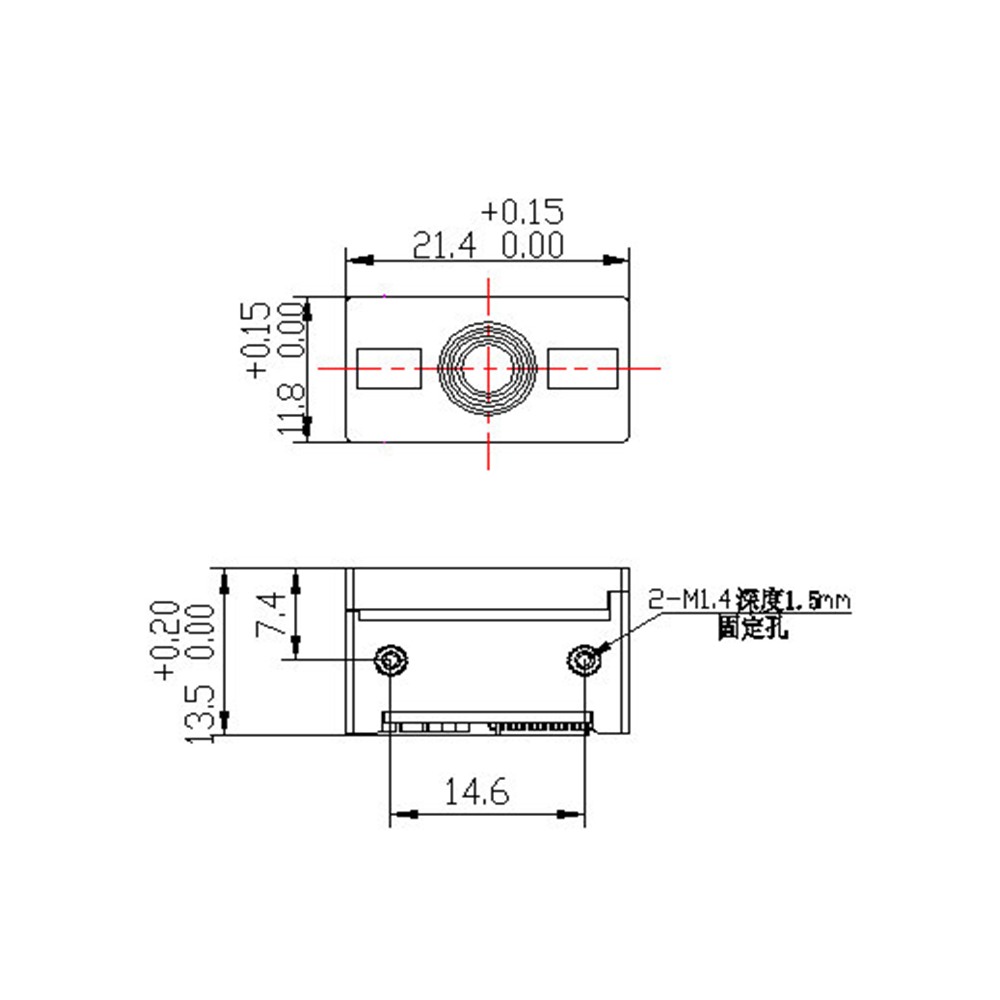

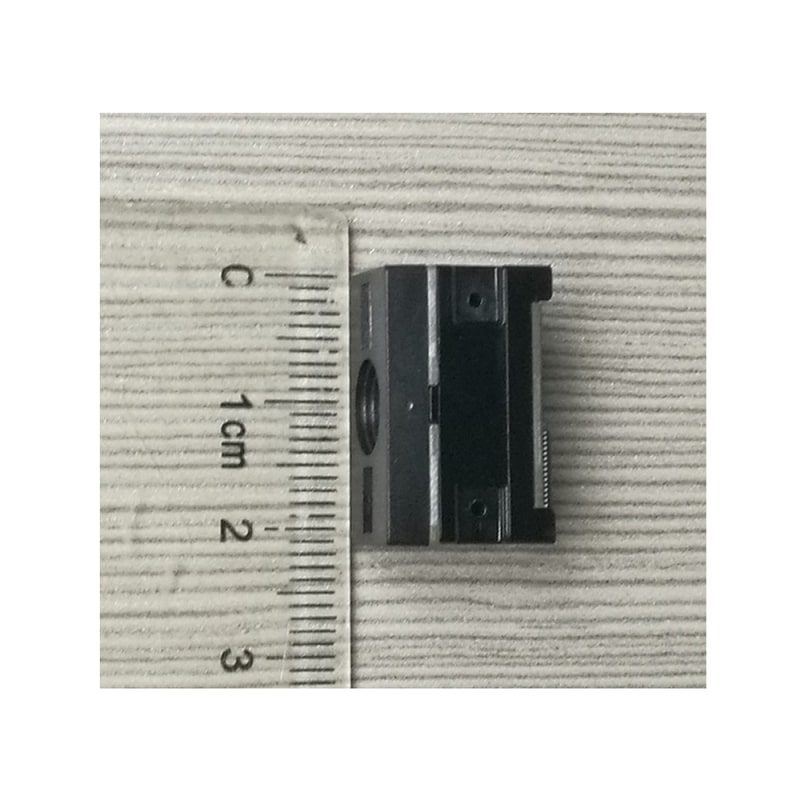

- Compact form factor (21.4 x 13.5 x 11.8mm) and lightweight (7g) for embedded designs.
- Operates efficiently at 3.3V DC with a 120mA current draw.
Out of stock
The GM65-S barcode scanner module utilizes a high-precision optical engine capable of decoding a wide array of 1D and 2D barcodes, from common retail codes like EAN-13 and Code 128 to 2D Matrix codes such as QR Code and Data Matrix. Its 0.10mm resolution ensures reliable reading of high-density and small-format barcodes.
Engineered for embedded applications, the module operates on a 3.3V DC supply and communicates via a simple UART serial protocol or standard USB2.0, making it compatible with microcontrollers like Arduino, Raspberry Pi, ESP32, and industrial PLCs. Its robust design supports operation across a wide temperature range and varying ambient light conditions, ensuring consistent performance in diverse environments.
Additional Information
| Weight | 0.007 kg |
|---|---|
| Dimensions | 2.14 × 1.35 × 1.18 cm |
