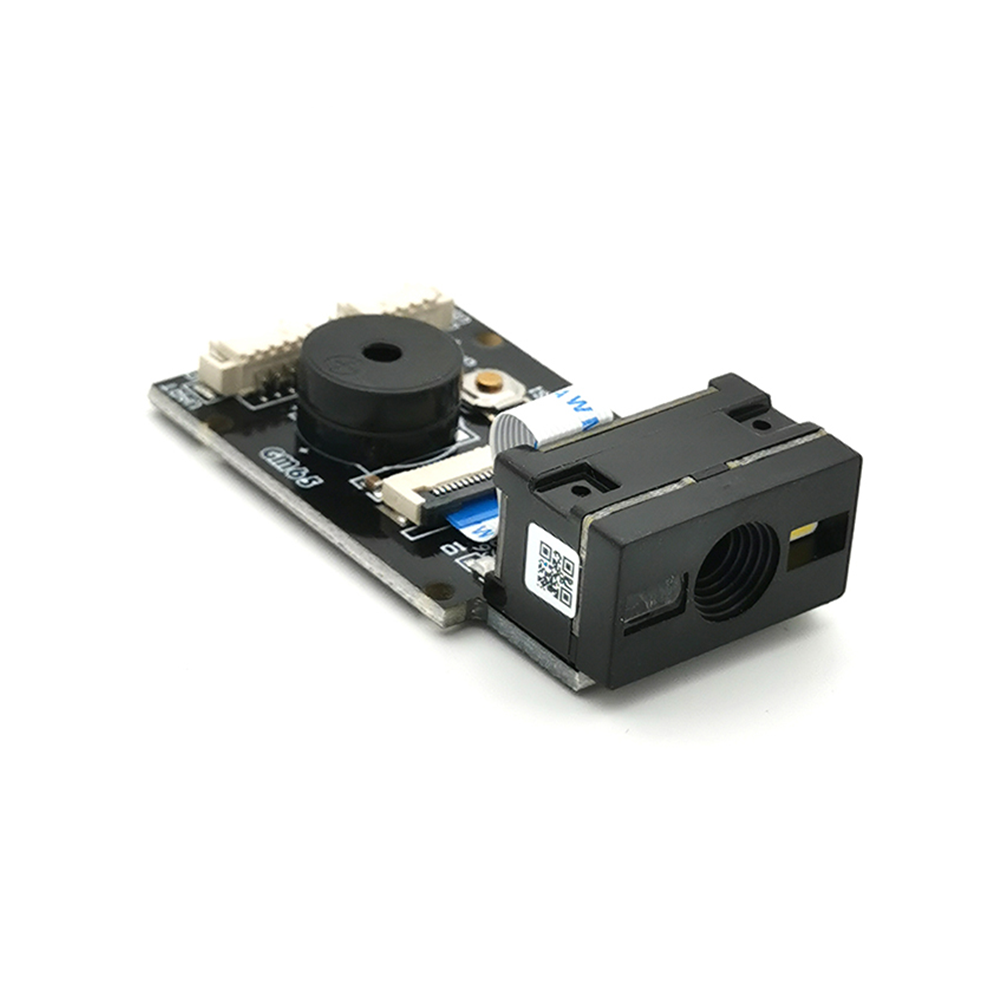

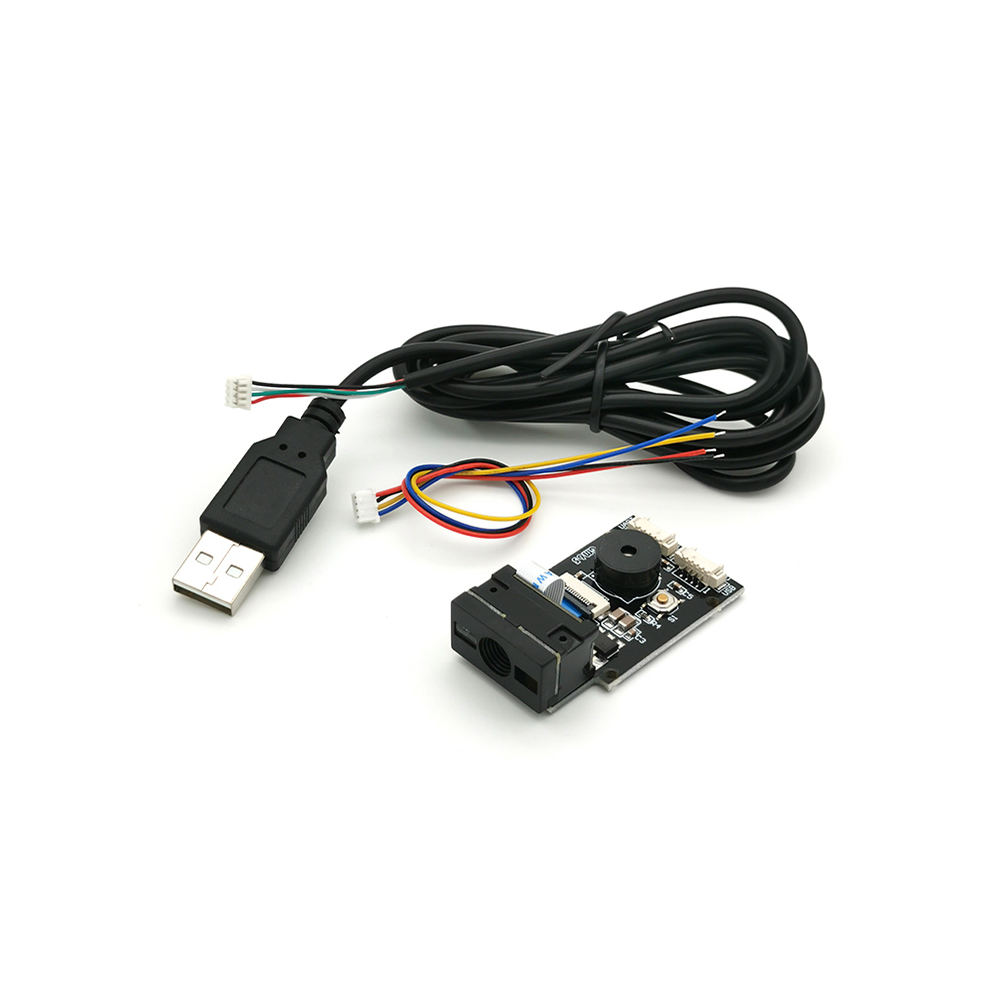

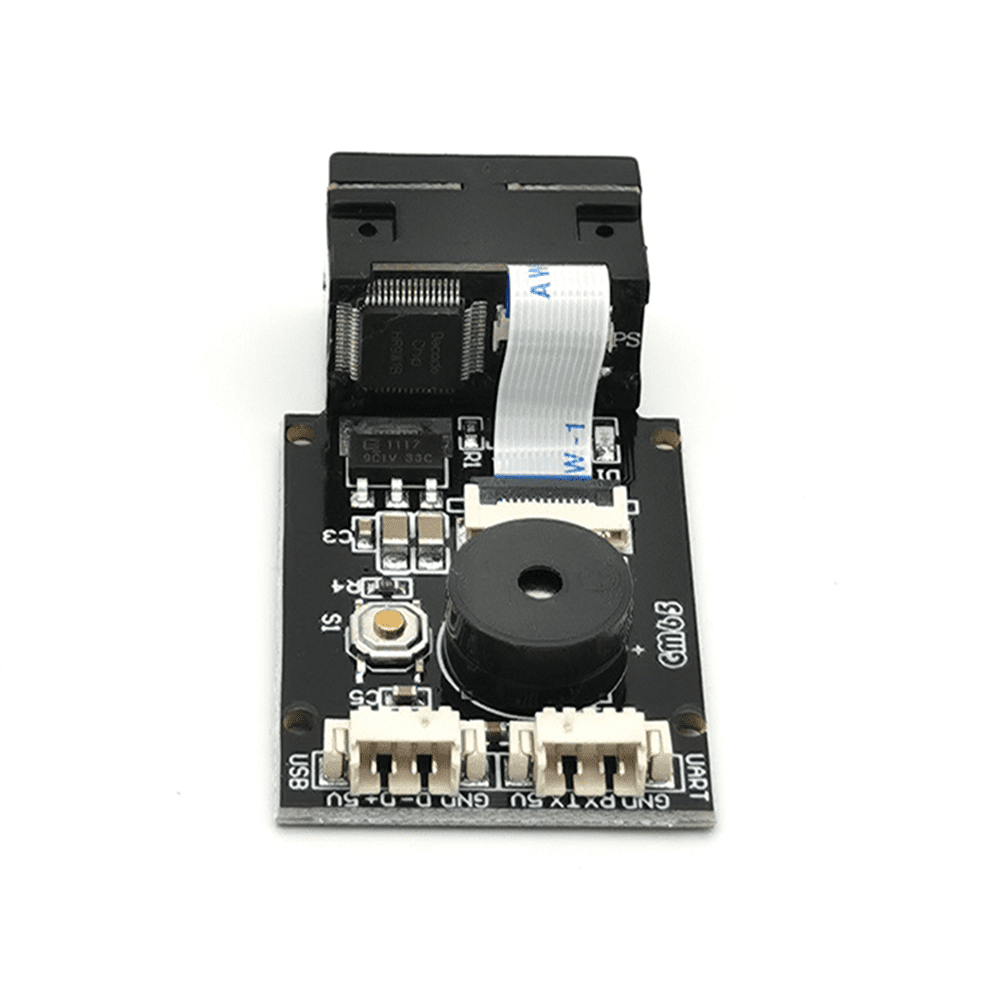

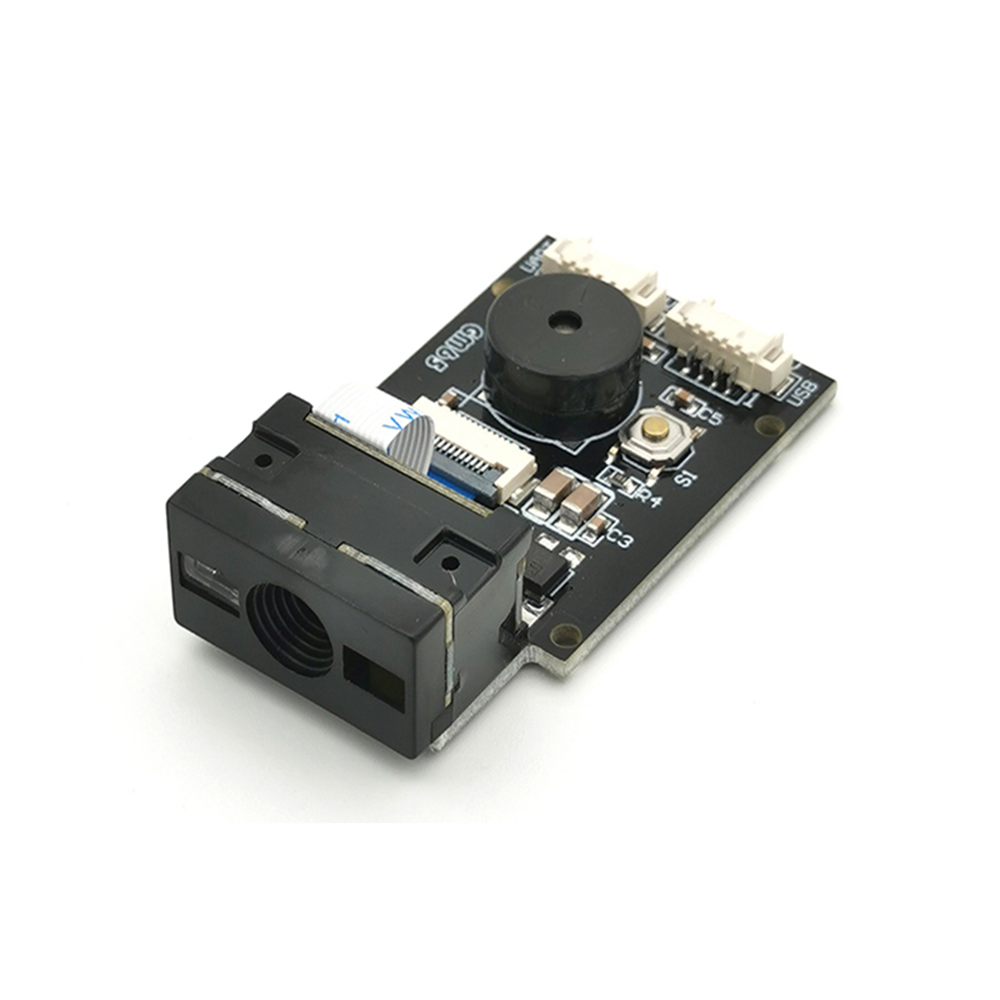

Grow GM65 Barcode Scanner Module - USB2.0 & UART Interface
The Grow GM65 is a compact, high-resolution barcode scanner module supporting both 1D and 2D symbologies, including QR codes and Data Matrix. It interfaces via USB2.0 or UART for easy integration into embedded systems, POS terminals, and industrial automation equipment powered by a standard 5V DC supply.
Features
- High-resolution scanning down to 0.10mm (4mil) for precise decoding.
- Dual interface support: USB2.0 for direct PC connection and UART for microcontroller integration (Arduino, Raspberry Pi, ESP32).
- Wide symbology support including EAN-13, Code 128, PDF417, QR Code, and Data Matrix.

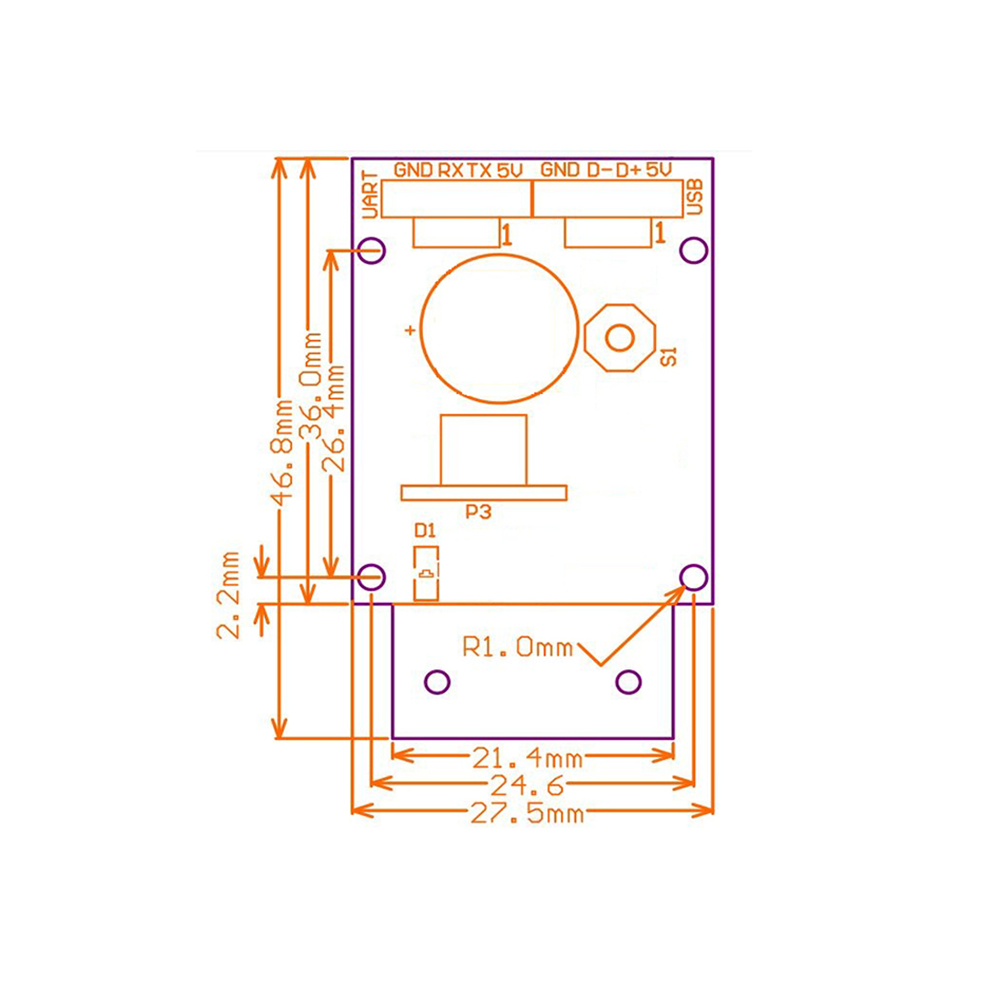

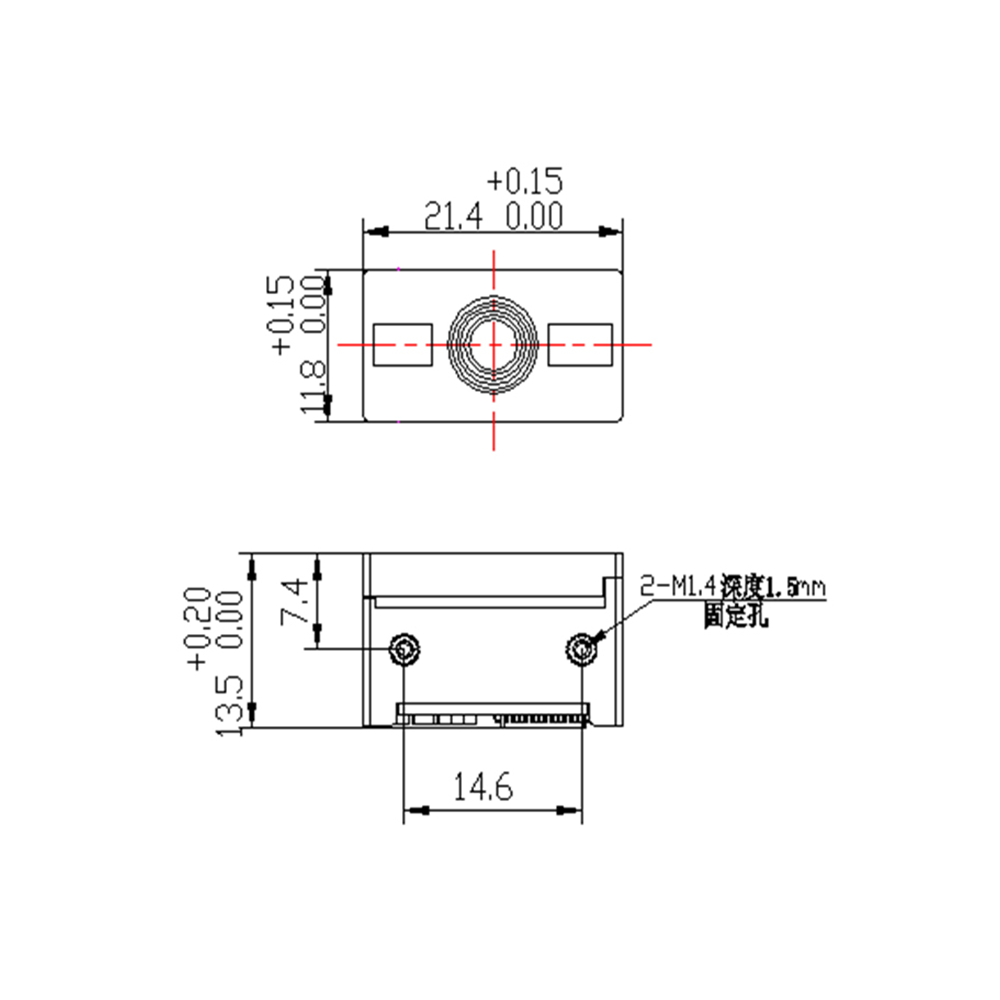

- Compact, lightweight design (46.8 x 27.5 mm, 13g) for space-constrained installations.
- 617nm LED aimer with 6500K illumination ensures reliable performance in varied lighting conditions.
Out of stock
The GM65 barcode scanner module utilizes a high-precision scan engine to accurately read 1D linear barcodes and 2D Matrix codes at a resolution of 0.10mm. Its core decoding processor handles a comprehensive range of industrial and retail symbologies, making it suitable for automated identification tasks.
Designed for embedded integration, the module operates from a 5V DC supply with a typical current draw of 120mA. The UART (TTL) serial interface allows direct connection to microcontrollers like Arduino, STM32, or ESP32 for custom applications, while the USB2.0 interface provides plug-and-play compatibility with PCs and POS systems. The integrated 617nm LED aimer and white illumination LED (6500K) ensure consistent reading performance across a working distance of 25mm to 250mm in diverse environmental lighting.
Additional Information
| Weight | 0.013 kg |
|---|---|
| Dimensions | 4.68 × 2.75 cm |
