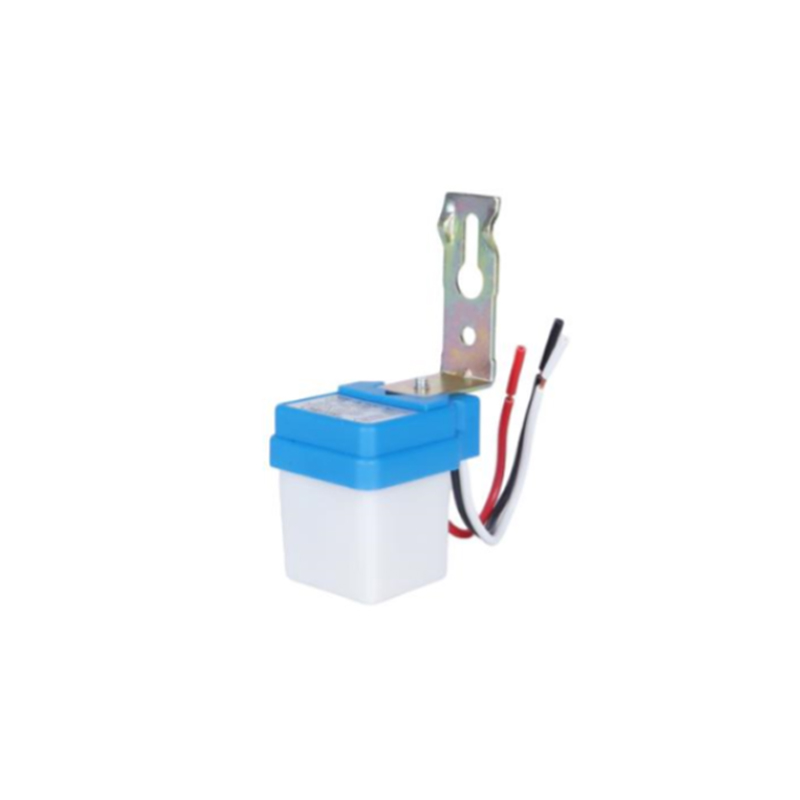

Generic Photocell Street Lamp Light Switch Controller AC 85-310V 10A - IP54 Weatherproof
This AC-powered photocell switch controller provides automatic dusk-to-dawn control for outdoor lighting systems, compatible with 85–310V AC, 50/60Hz mains and rated for 10A ballast loads. Its IP54-rated, UV-resistant housing ensures reliable operation in streetlight and area lighting applications.
Features
- Automatic On/Off control based on ambient light levels using a ∅5mm photoresistor.
- Wide AC input voltage range: 85–310V AC, 50/60Hz for global compatibility.
- High load capacity: 10A for standard ballasts and 3A for electronic ballasts (E-Ballast).
- Robust IP54 waterproof rating with UV-resistant PP housing for outdoor durability.
- Integrated delay-on/off timing and surge protection to prevent false triggering.
Out of stock
This photocell light switch controller automates outdoor illumination by monitoring ambient light intensity with a silicon photoresistor. It activates connected lighting fixtures at dusk and deactivates them at dawn, eliminating manual intervention and optimizing energy usage. The device incorporates a built-in time delay to prevent erratic switching during transient light conditions, such as passing shadows or vehicle headlights.
Engineered for direct AC line integration, the controller features a wide operating voltage and robust relay capable of handling high inrush currents from inductive loads. Its sealed, UV-stabilized polypropylene enclosure provides long-term environmental protection against moisture, dust, and solar degradation, making it a dependable component for municipal street lighting, parking lot lights, and perimeter security lighting systems.
Additional Information
| Weight | 0.047 kg |
|---|---|
| Dimensions | 3.5 × 4.5 cm |
