Grow KL216 Fingerprint Control Board - Aluminum Housing, 10A Relay Output, 200 Fingerprint Capacity
The Grow KL216 Fingerprint Control Board is a dedicated interface module designed to manage compatible fingerprint sensors (R502-A, R502-AW, R502-F, R503) for secure access control systems. It operates on a wide 10-30V DC input and provides a robust 10A relay output for direct control of locks, gates, or industrial machinery.
Features
- Aluminum housing for durable, EMI-shielded industrial installation.
- Supports storage and management of up to 200 individual fingerprints.
- Wide operating voltage range of 10-30V DC with low standby current (<40mA).
- High-power relay output rated for 10A, suitable for direct actuator control.
- Compatible with popular Grow R502/R503 series fingerprint reader modules.
Out of stock

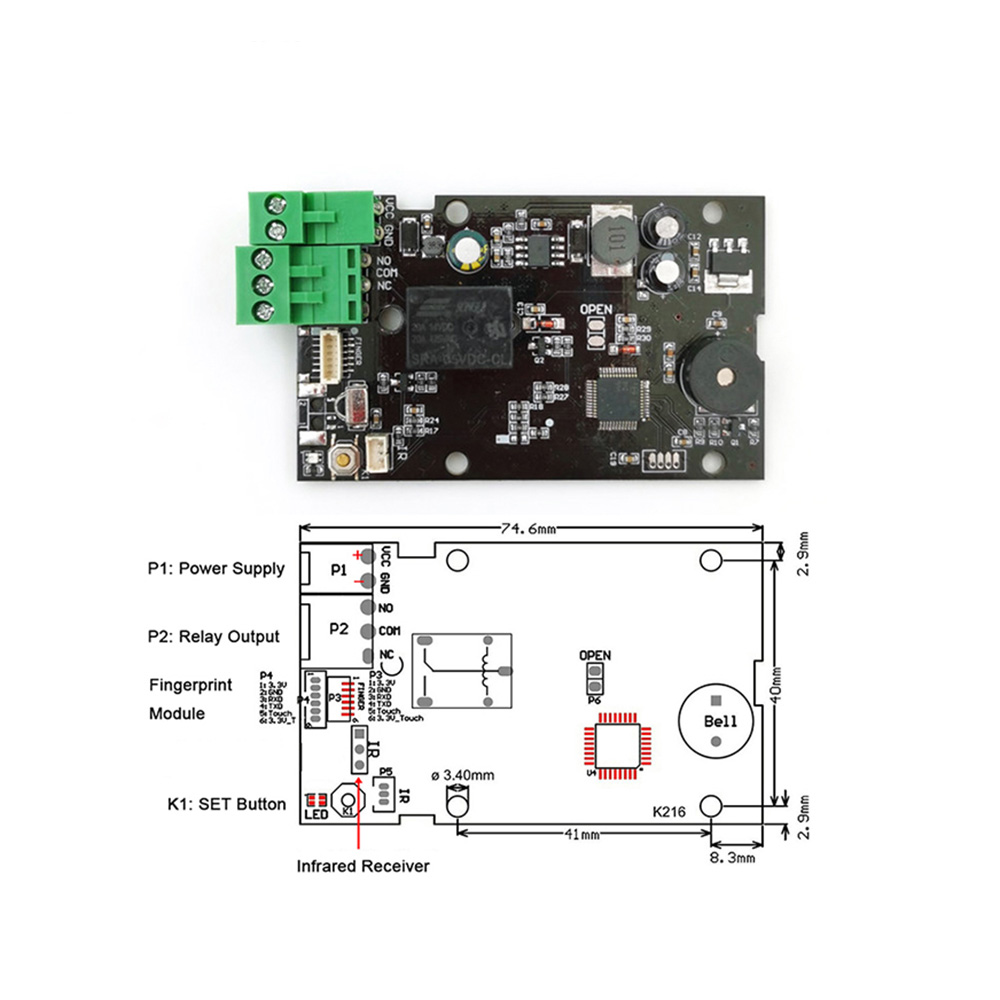

The KL216 serves as the central processing and control unit in a biometric access system. It handles the enrollment, verification, and management of fingerprint data from connected optical or capacitive sensor modules. The board’s logic controls the state of its integrated electromechanical relay based on successful authentication.

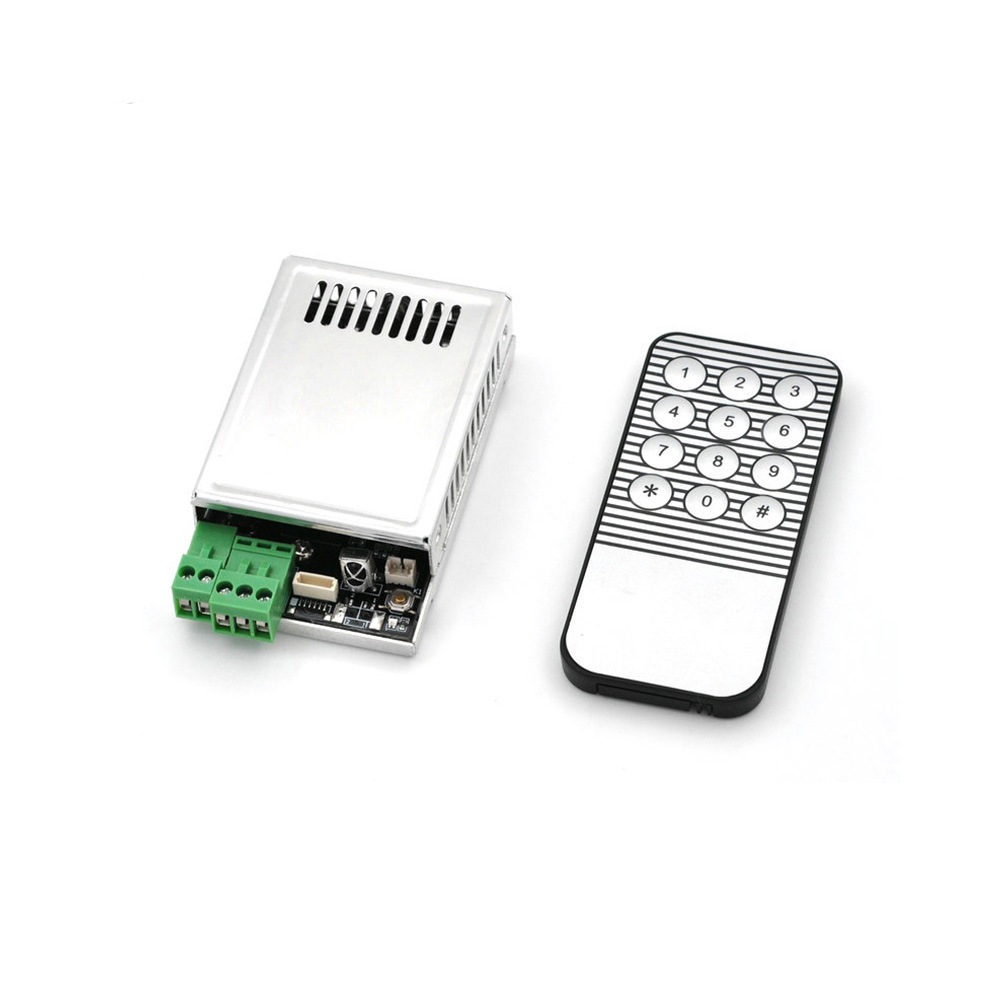

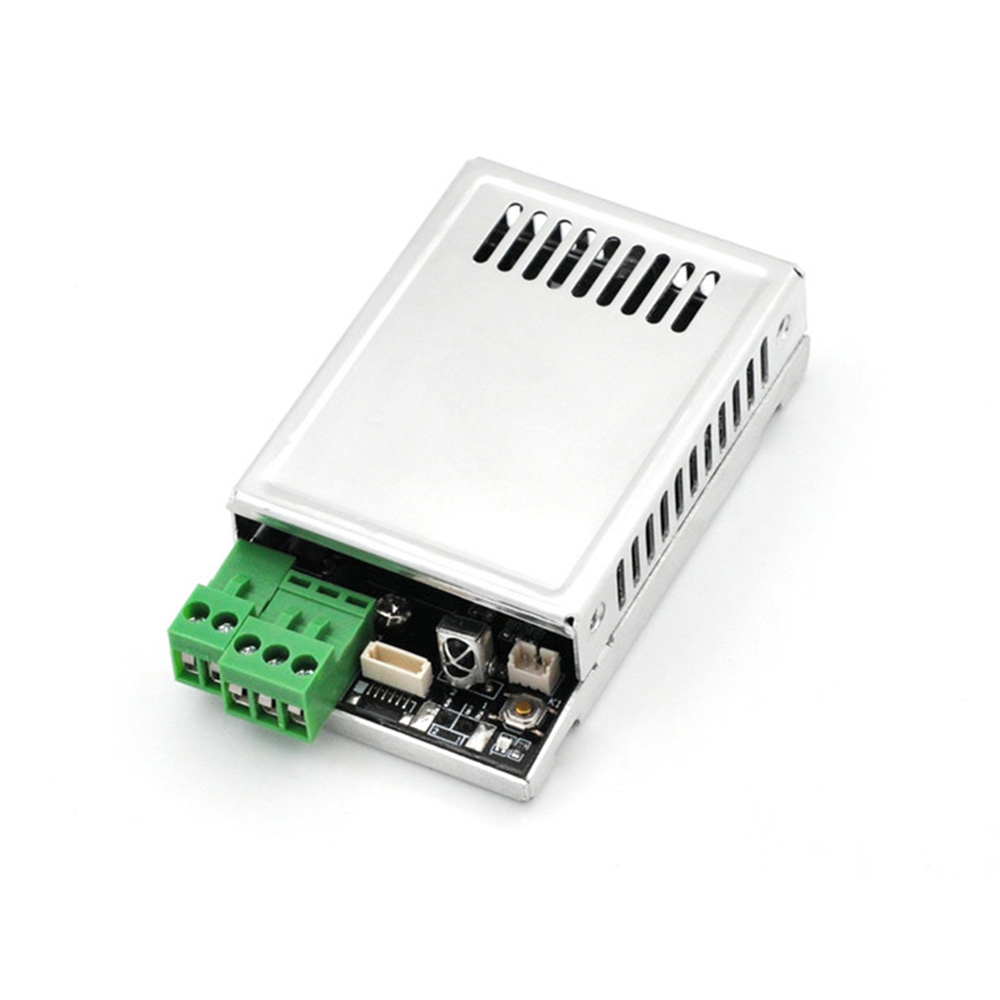

Housed in a sturdy aluminum enclosure (78x48x21mm), it is designed for reliable performance in access control panels, secure cabinets, and automated entry points. The unit supports multiple operational modes (Jog, Ignition, Self-locking) and can be configured via its onboard SET button or through remote infrared programming.
Additional Information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 7.8 × 4.8 × 2.1 cm |
