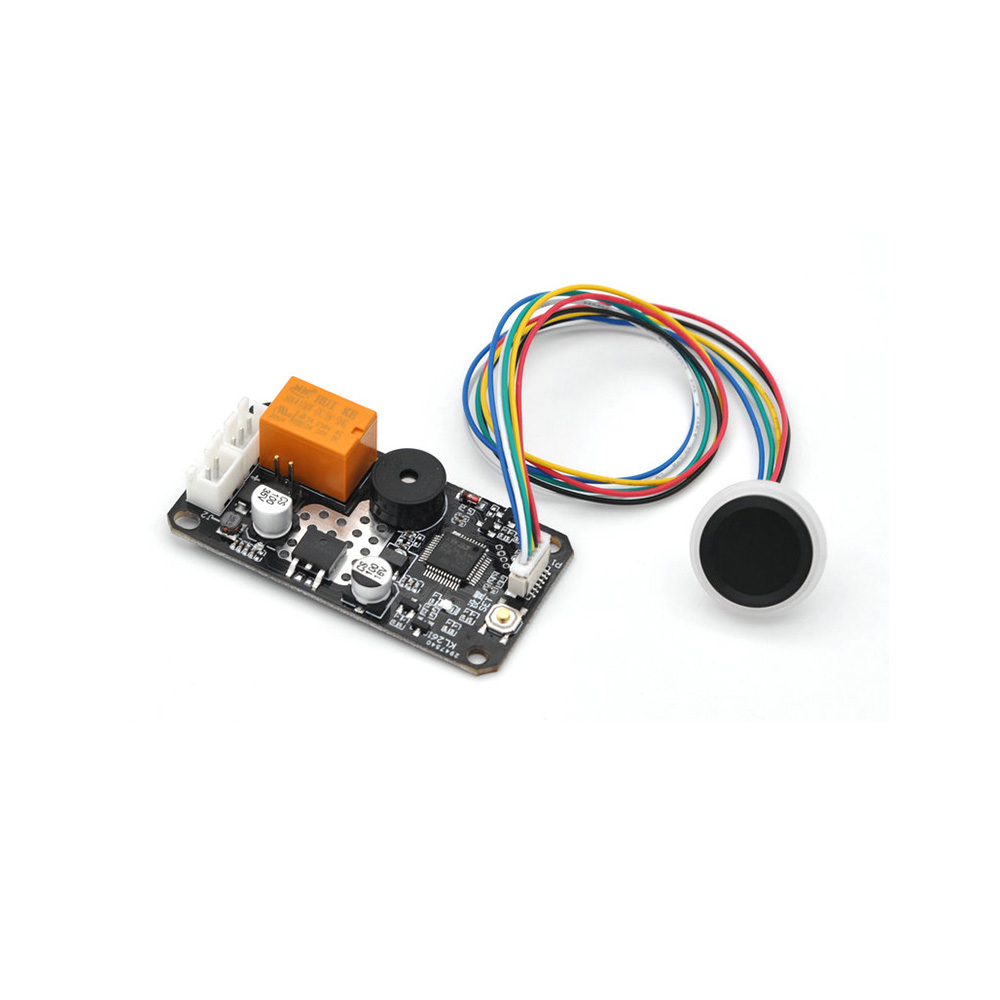

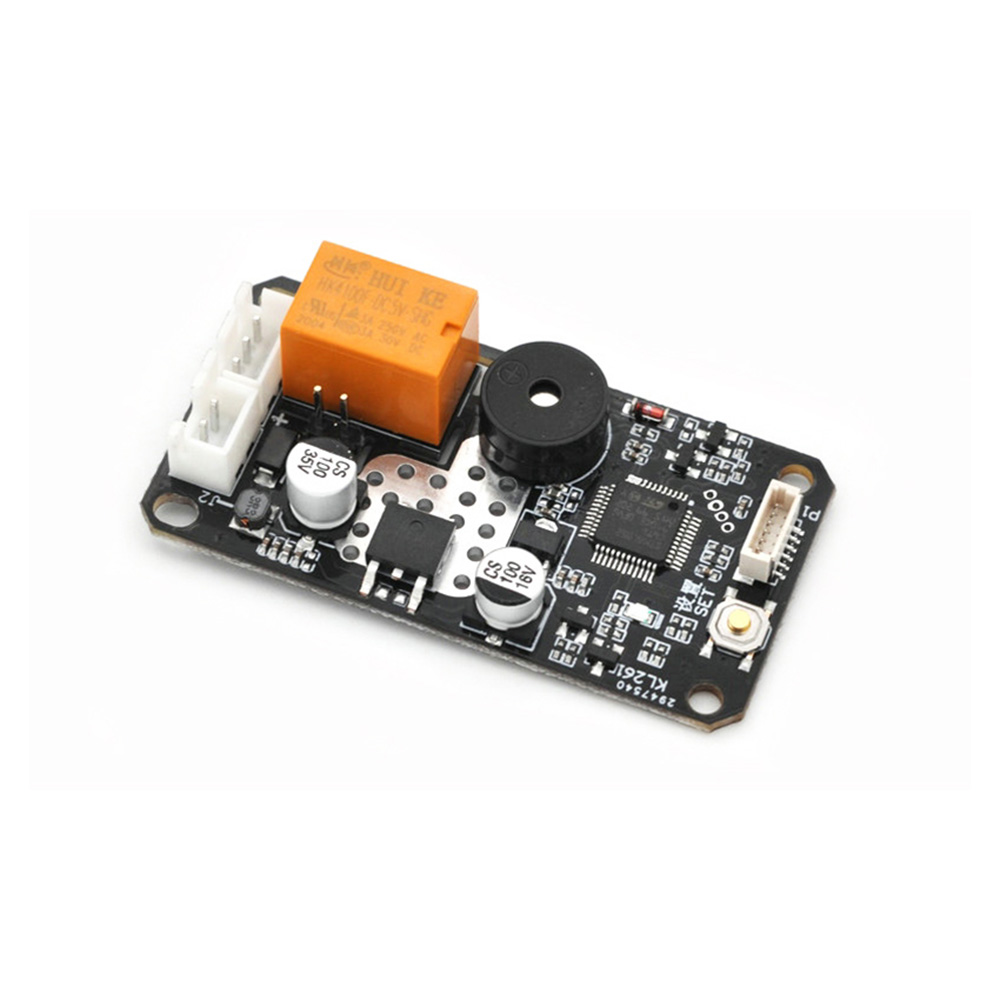

Grow KL261+R558-S Fingerprint Control Board - 5.5-15V DC, 10A Relay Output
The Grow KL261+R558-S Fingerprint Control Board is a compact biometric module designed for secure access control systems, operating from a 5.5-15V DC supply and featuring a 10A relay output for direct device control.
Features
- Biometric fingerprint recognition with capacity for up to 100 stored templates.
- Wide operating voltage range of 5.5V to 15V DC for flexible power sourcing.
- Ultra-low standby current of 25 µA for energy-efficient, always-on applications.
- Integrated high-current relay output rated for 10A to directly control locks, gates, or alarms.
- Compact footprint of 58.6 x 30 mm for easy integration into panels and enclosures.
Out of stock
The Grow KL261+R558-S Fingerprint Control Board integrates a high-precision optical fingerprint sensor with a dedicated microcontroller for reliable biometric authentication. It operates on a capacitive sensing principle to capture and match fingerprint patterns, ensuring secure access control without the need for keys or cards.

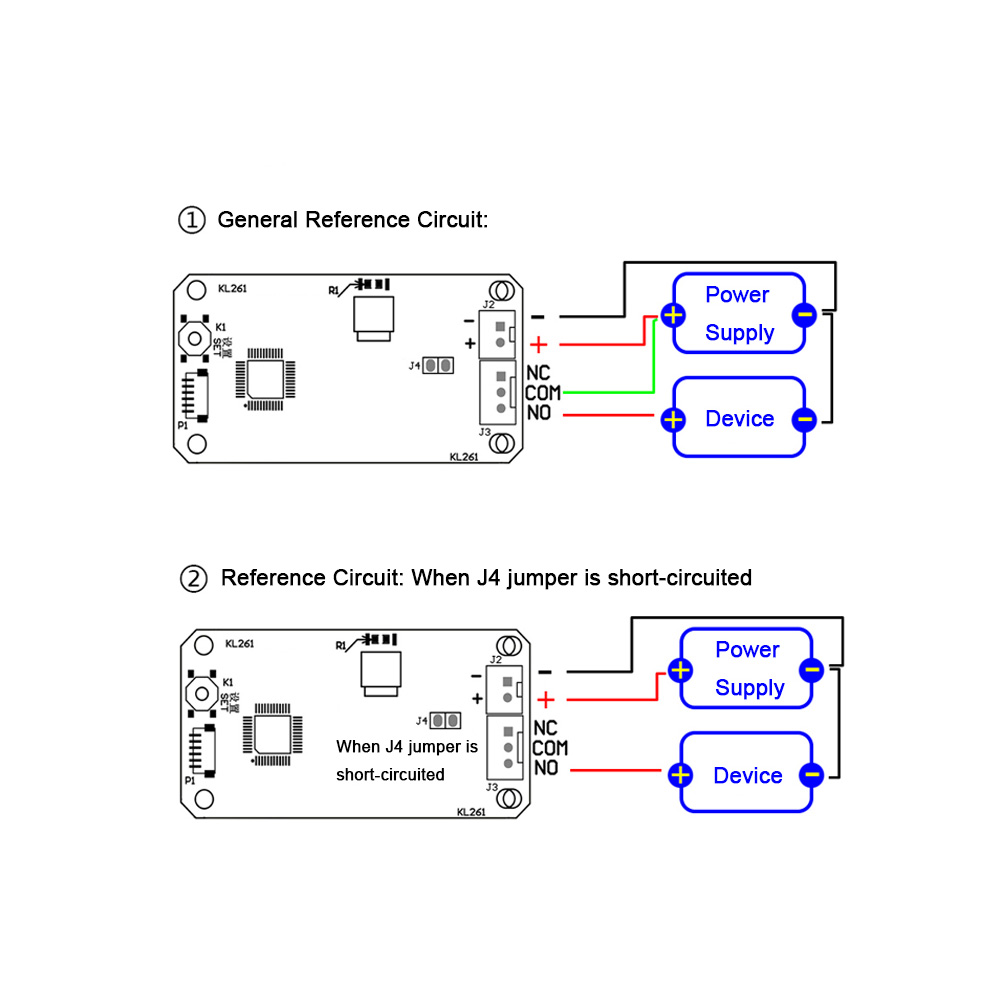

Designed for low-power operation, the board features a standby mode drawing only 25 µA, making it suitable for battery-backed or energy-conscious installations. The robust 10A relay output provides a dry contact interface to directly switch AC/DC loads, simplifying integration with electric strikes, magnetic locks, and other security peripherals.
Additional Information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 10 × 6 × 5 cm |
