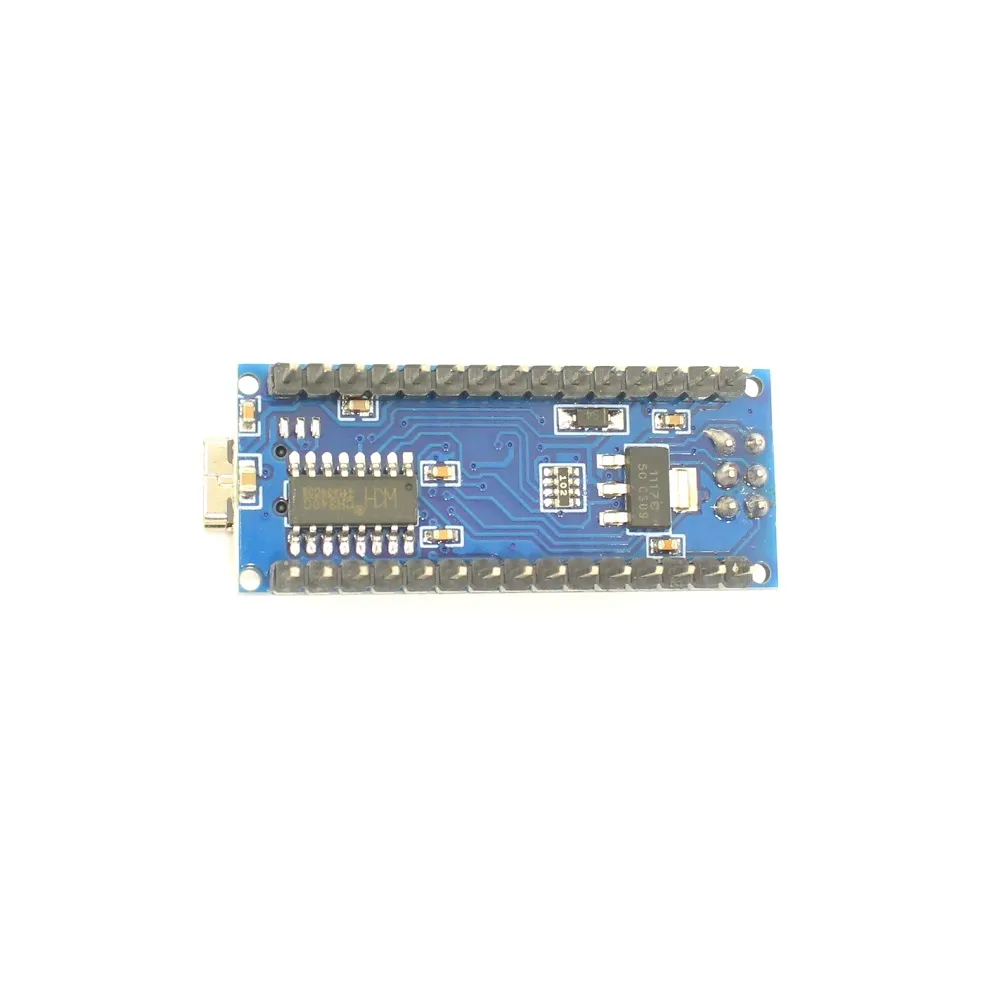

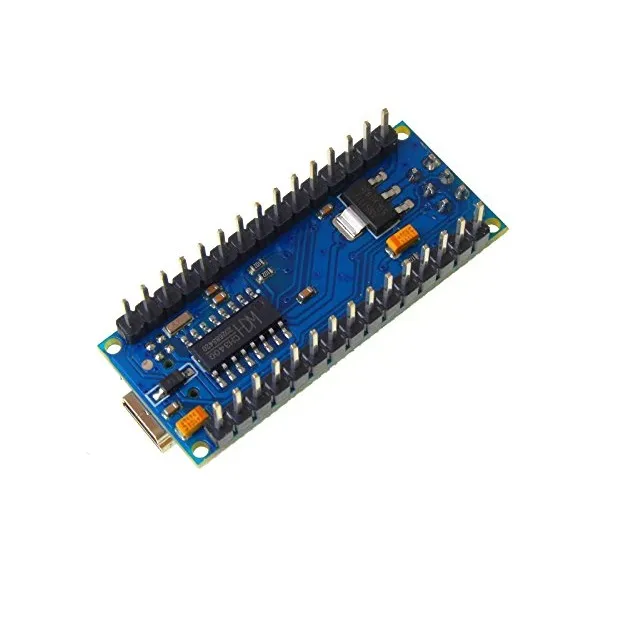

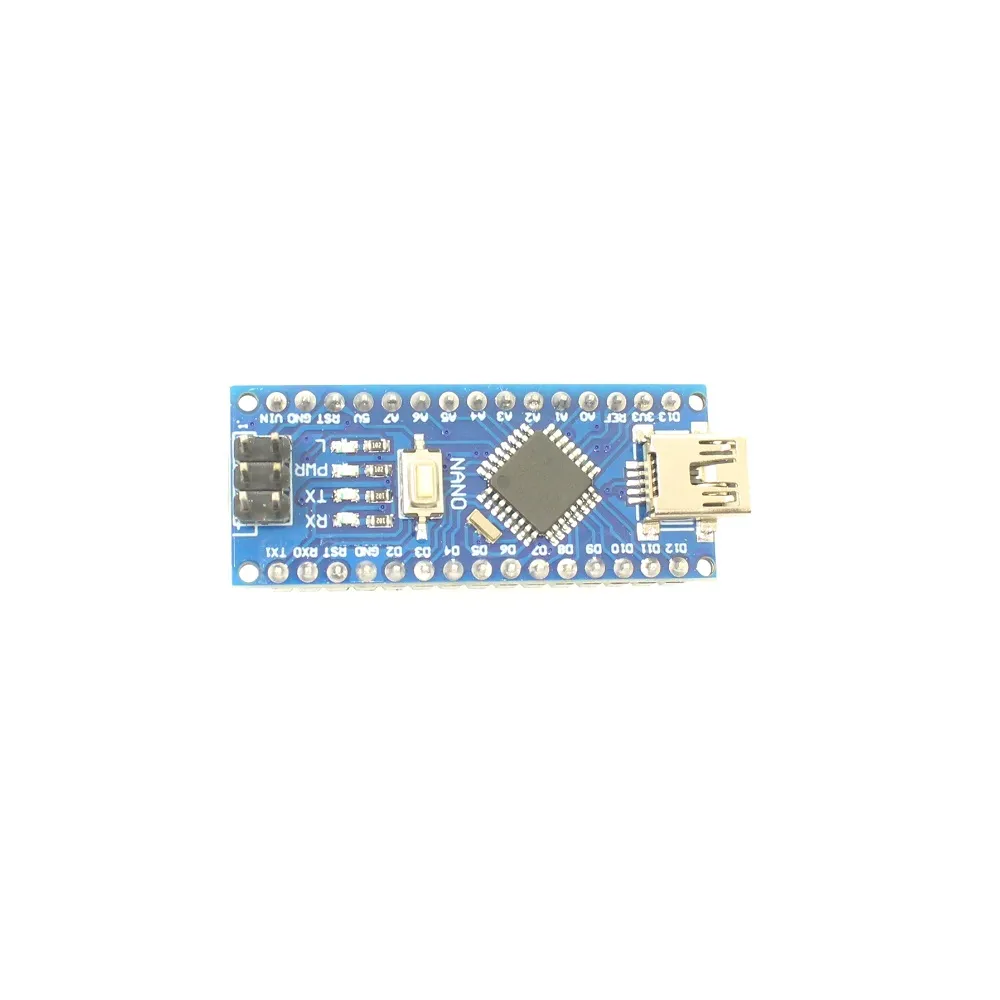

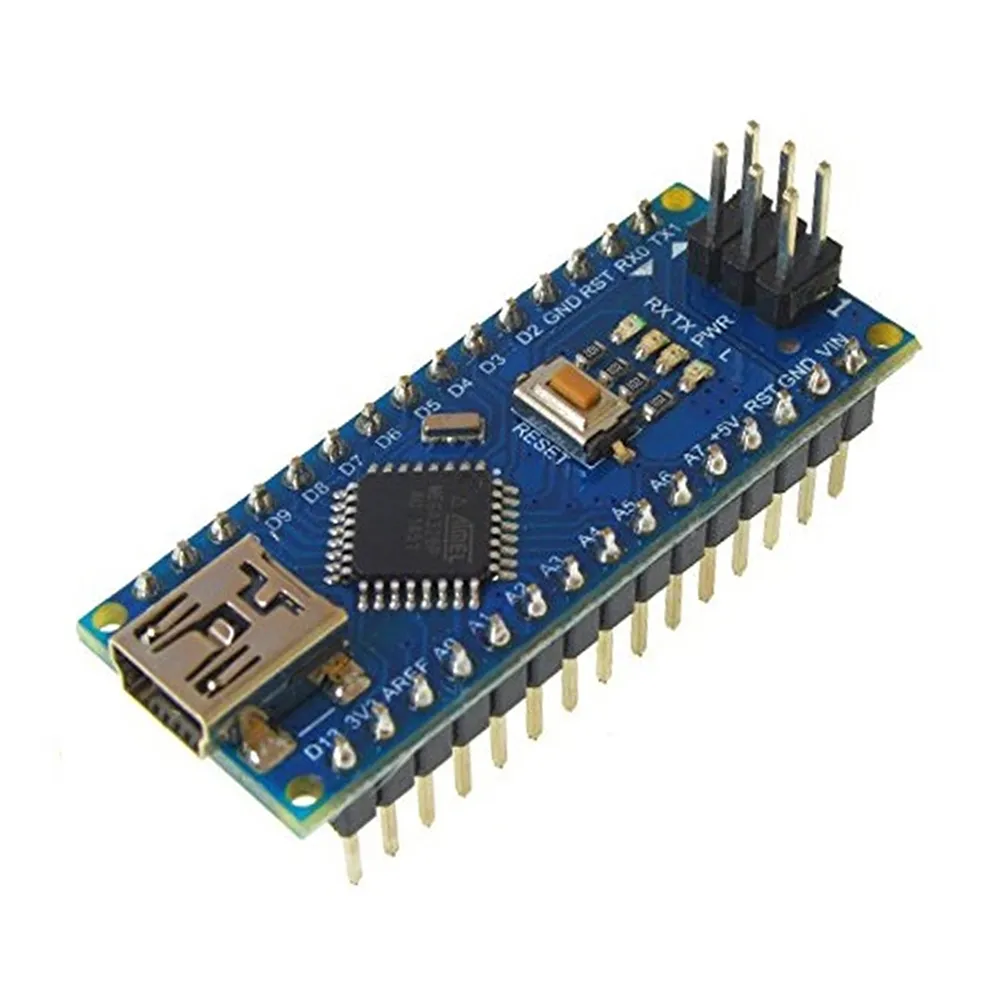

Generic Nano CH340 Development Board (Soldered)
This Generic Nano CH340 development board, pre-soldered for convenience, offers a compact and cost-effective solution for Arduino-compatible projects. Utilizing the ATmega328P MCU and a CH340 USB-to-serial converter, it provides essential I/O for embedded system development.
Features
- Based on the Atmel ATmega328P-AU microcontroller with pre-installed bootloader.
- Features a compact Nano form factor and a cost-effective CH340 USB-to-serial chip.
- Provides 14 digital input/output pins and 8 analog input ports for versatile connectivity.
- Designed with standard 0.1” spacing DIP pins, making it breadboard-friendly for prototyping.
- Supports multiple power options including Mini-B USB, external 5V regulated, or 6-20V unregulated supplies.
Out of stock
The Generic Nano CH340 Development Board is a compact, breadboard-friendly microcontroller board based on the popular Arduino Nano platform. Equipped with the Atmel ATmega328P-AU microcontroller, it offers robust processing capabilities for a wide range of embedded applications. This particular version includes a CH340 USB-to-serial converter, providing a cost-effective alternative to older FTDI-based Nano boards while maintaining full compatibility with the Arduino IDE ecosystem.
This pre-soldered board provides 14 digital input/output pins, 8 analog input ports (A0-A7), and a pair of TTL-level serial transceiver ports. Powering options are flexible, supporting input via the Mini-B USB connection, an unregulated 6-20V external power supply, or a regulated 5V external supply. Its small footprint makes it ideal for projects where space is a premium, allowing for seamless integration into prototypes and final designs.
Additional Information
| Weight | 0.012 kg |
|---|---|
| Dimensions | 4.5 × 1.8 × 0.5 cm |
