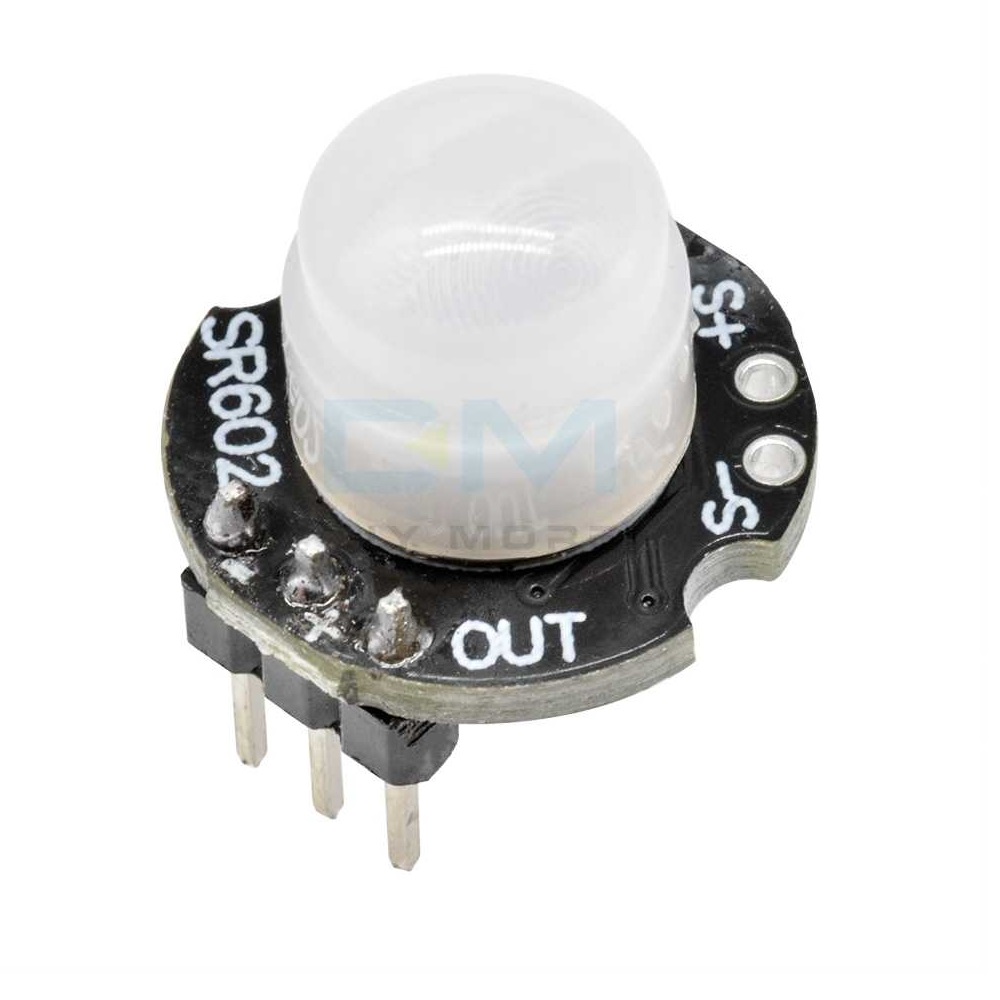

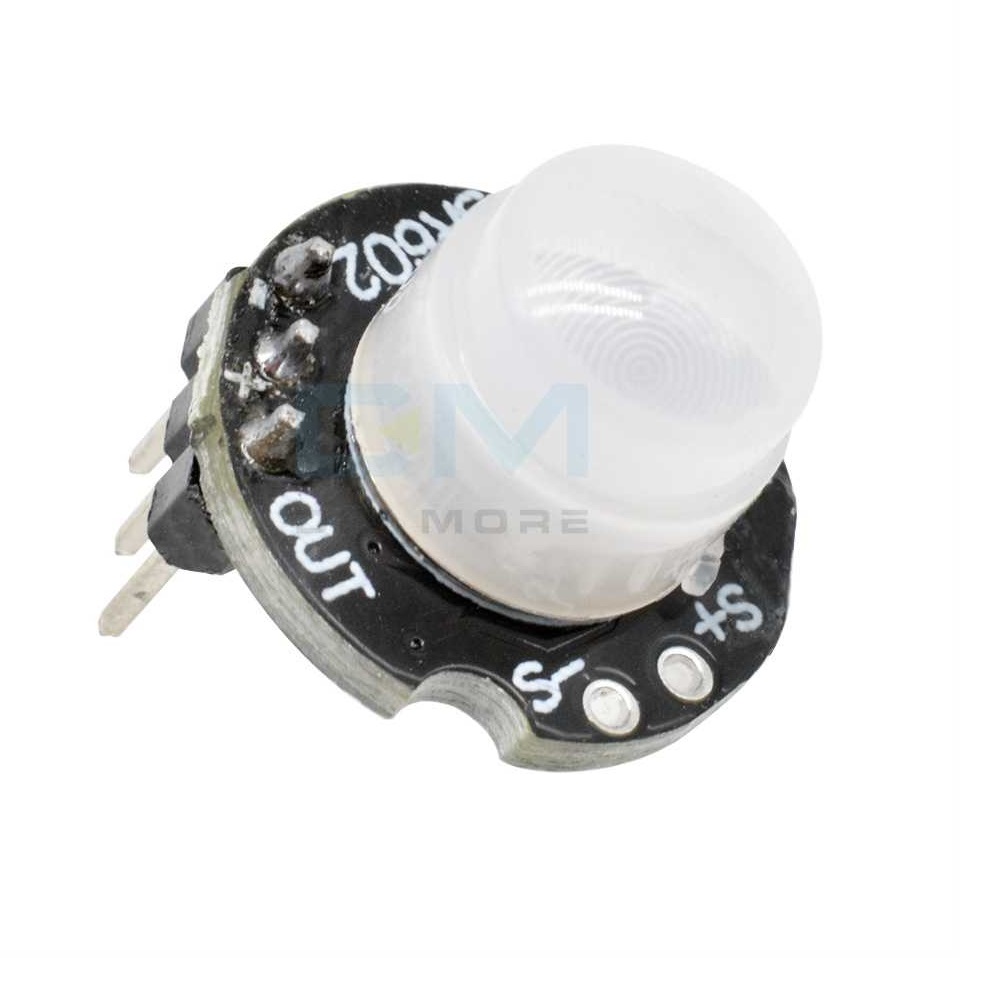

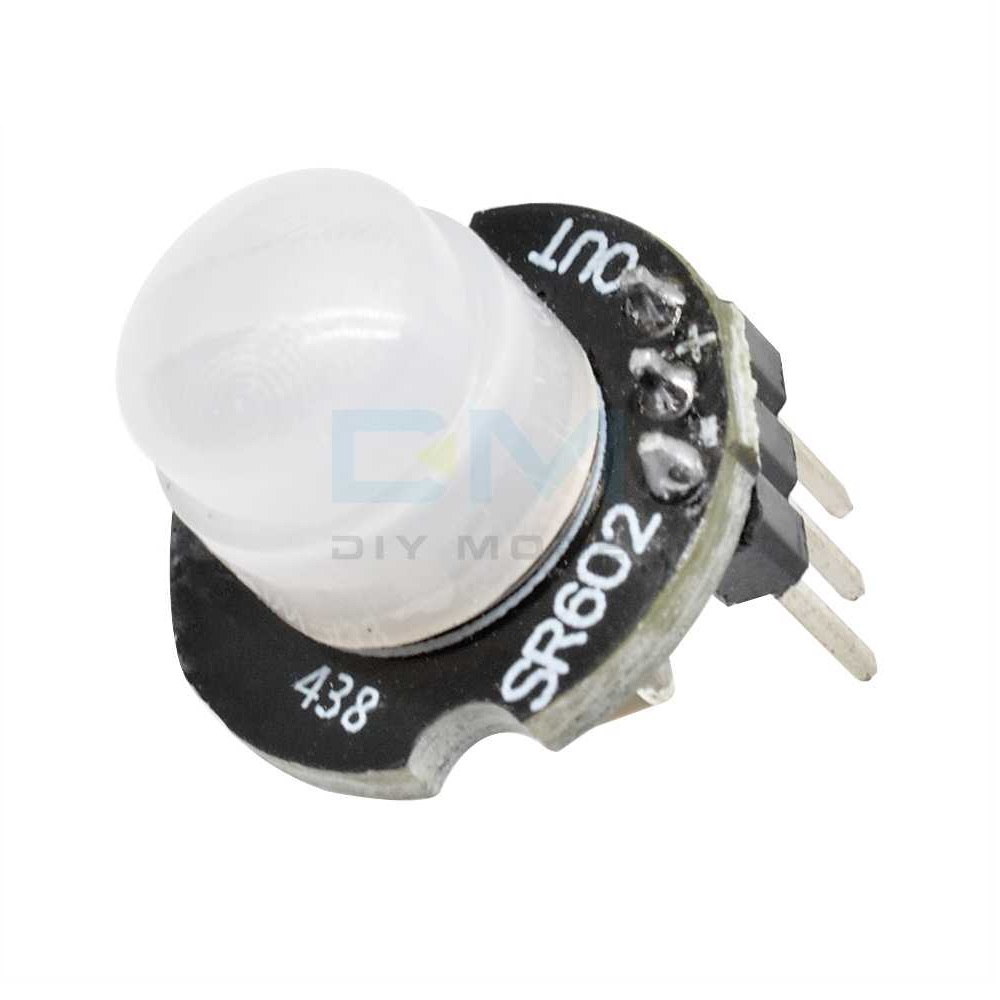

Generic MH-SR602 Mini PIR Motion Sensor Module - 3-5m Range, 3.3-15V DC
The MH-SR602 is a compact pyroelectric infrared (PIR) motion sensor module designed for detecting human presence within a 3 to 5-meter range. Operating from a wide 3.3V to 15V DC supply, it provides a 3.3V high-level output signal compatible with microcontrollers like Arduino, ESP32, and Raspberry Pi for security, lighting, and automation projects.
Features
- Wide operating voltage range from 3.3V to 15V DC
- Ultra-low quiescent current of only 20µA for battery-powered applications
- Adjustable output delay time from 2.5 seconds up to 1 hour via resistor change
- Compact form factor measuring just 15 x 15 x 20 mm
- Digital output signal: High level = 3.3V, Low level = 0V
Out of stock
The MH-SR602 Mini PIR Motion Sensor Module utilizes a pyroelectric infrared sensing element to detect changes in thermal radiation, specifically tuned for human body movement. The module includes a Fresnel lens to focus IR signals and onboard signal conditioning circuitry that filters noise and provides a clean digital output.
Designed for low-power operation, its 20µA quiescent current makes it suitable for always-on, battery-driven systems. The output high-level duration is factory-set to 2.5 seconds but can be customized by replacing a surface-mount resistor, allowing for tailored response times in various automation and security scenarios.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 1.5 × 1.5 × 2 cm |
