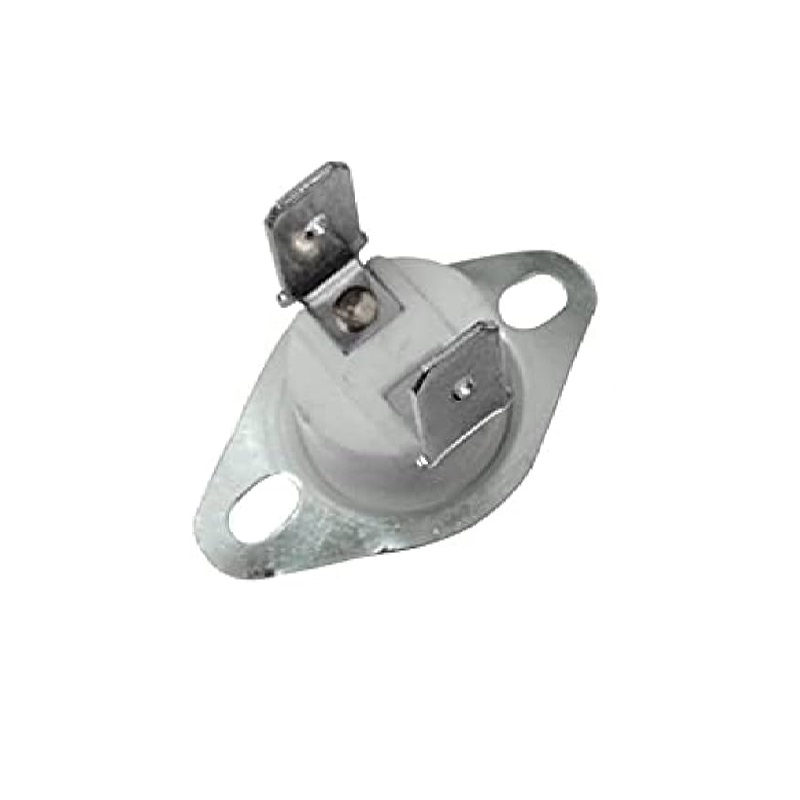

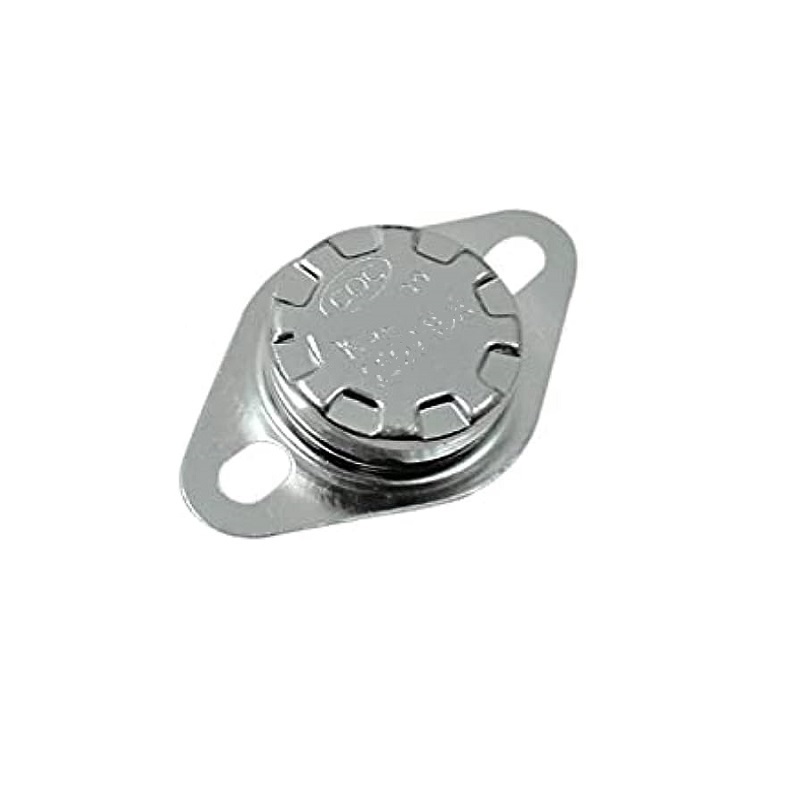

Generic KSD301 Ceramic Temperature Control Switch Thermostat - 120°C NC, 250V 16A
The KSD301 is a ceramic-bodied, normally closed (NC) thermal switch designed for precise temperature control up to 120°C. It is rated for 250V AC and 16A, making it suitable for integration into appliances, power supplies, and industrial equipment requiring reliable over-temperature protection.
Features
- Ceramic housing for high thermal conductivity and electrical insulation.
- Normally Closed (NC) contact opens at the calibrated 120°C setpoint.
- High current rating of 16A at 250V AC for robust circuit protection.
- Compact and durable mechanical snap-action design.
- Simple two-wire installation for direct series connection in a circuit.
Out of stock
The KSD301 is a bimetallic disc thermostat, a robust and cost-effective solution for temperature monitoring and control. The ceramic body ensures excellent heat transfer to the internal bimetallic element while providing high dielectric strength. When the ambient temperature reaches the factory-calibrated 120°C trip point, the bimetallic disc snaps, mechanically opening the normally closed contacts to break the circuit.
This device functions as a one-shot, automatic reset switch. Once the temperature cools below the reset point (typically several degrees below the trip point), the contacts will close again, restoring power. This makes it ideal for applications requiring cyclic thermal protection without manual intervention. Its simple, non-polarized design allows for easy integration into AC or DC power lines.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 9 × 6 × 3 cm |
