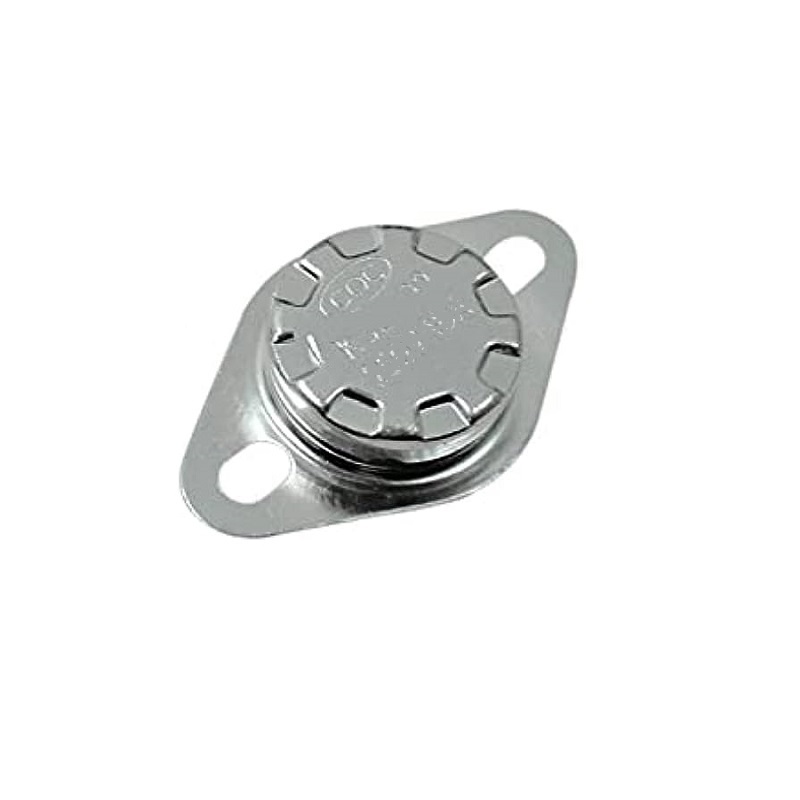

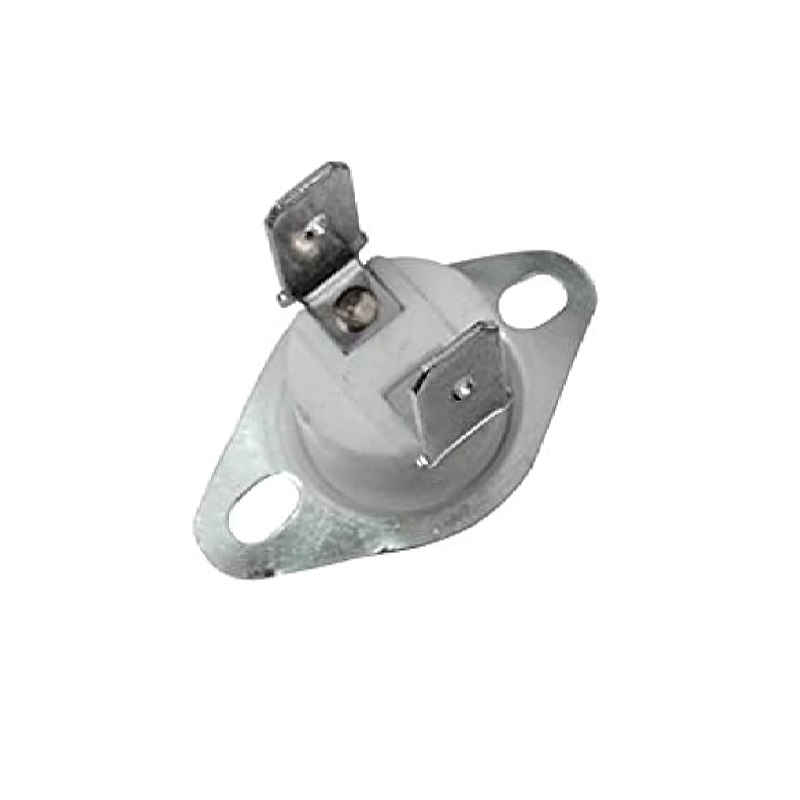

KSD301 Ceramic Temperature Control Switch Thermostat - 140°C NC, 250V 16A
The KSD301 is a ceramic-housed, normally closed (NC) thermal switch designed for precise, automatic temperature control up to 140°C. It is rated for 250V AC/DC and 16A loads, making it suitable for direct integration into heating elements, appliances, and industrial equipment requiring reliable over-temperature protection.
Features
- Ceramic housing for high thermal stability and electrical insulation
- Normally Closed (NC) contact opens at the set point of 140°C
- High current rating of 16A at 250V for direct load switching
- Fixed, factory-calibrated actuation temperature for consistent performance
- Compact and robust design for integration into appliances and control panels
Out of stock
The KSD301 is a bimetallic disc thermostat, where a temperature-sensitive snap-action mechanism opens or closes an electrical circuit. The ceramic housing provides excellent dielectric strength and thermal conductivity, ensuring the internal bimetallic element responds accurately to ambient temperature changes while isolating the live contacts.
This switch is pre-set to open its Normally Closed (NC) contacts when the surrounding temperature reaches 140°C, breaking the circuit to protect equipment. Upon cooling below the reset temperature, the contacts close again, automatically restoring power. Its high 16A switching capacity eliminates the need for an external relay in many applications, simplifying system design.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 9 × 6 × 3 cm |
