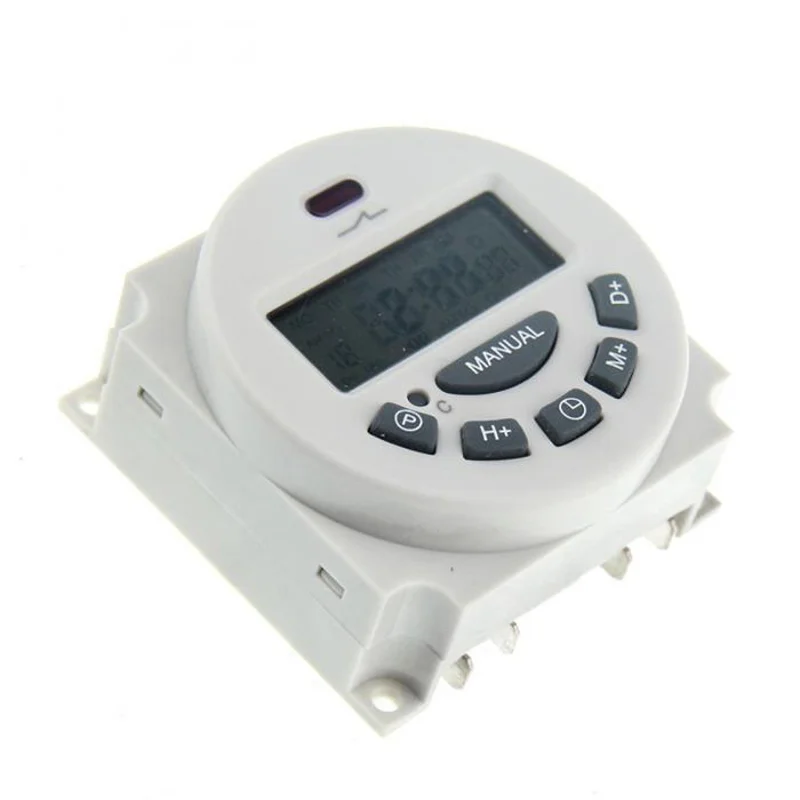

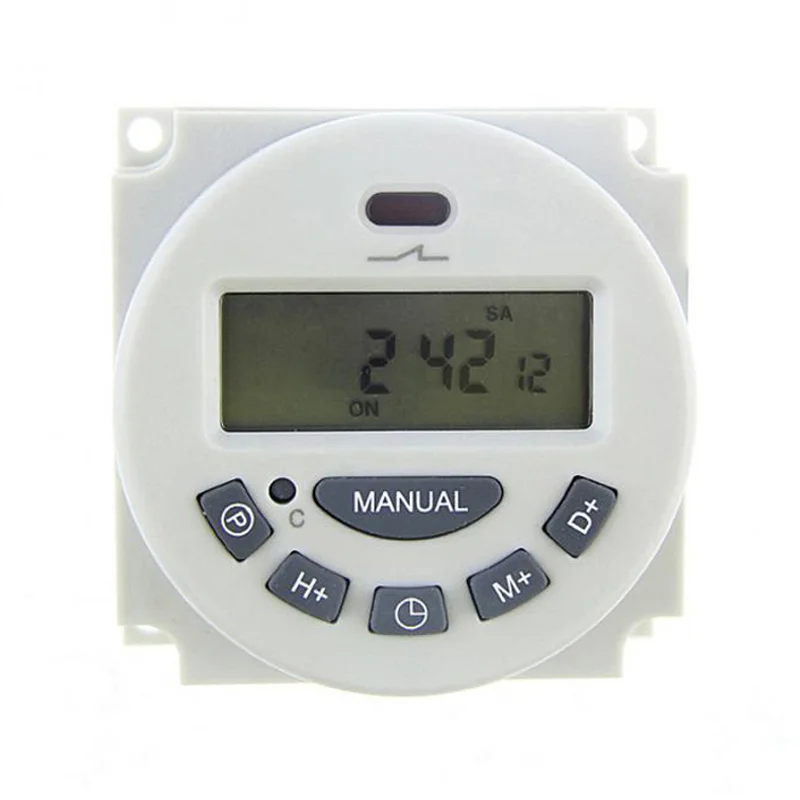

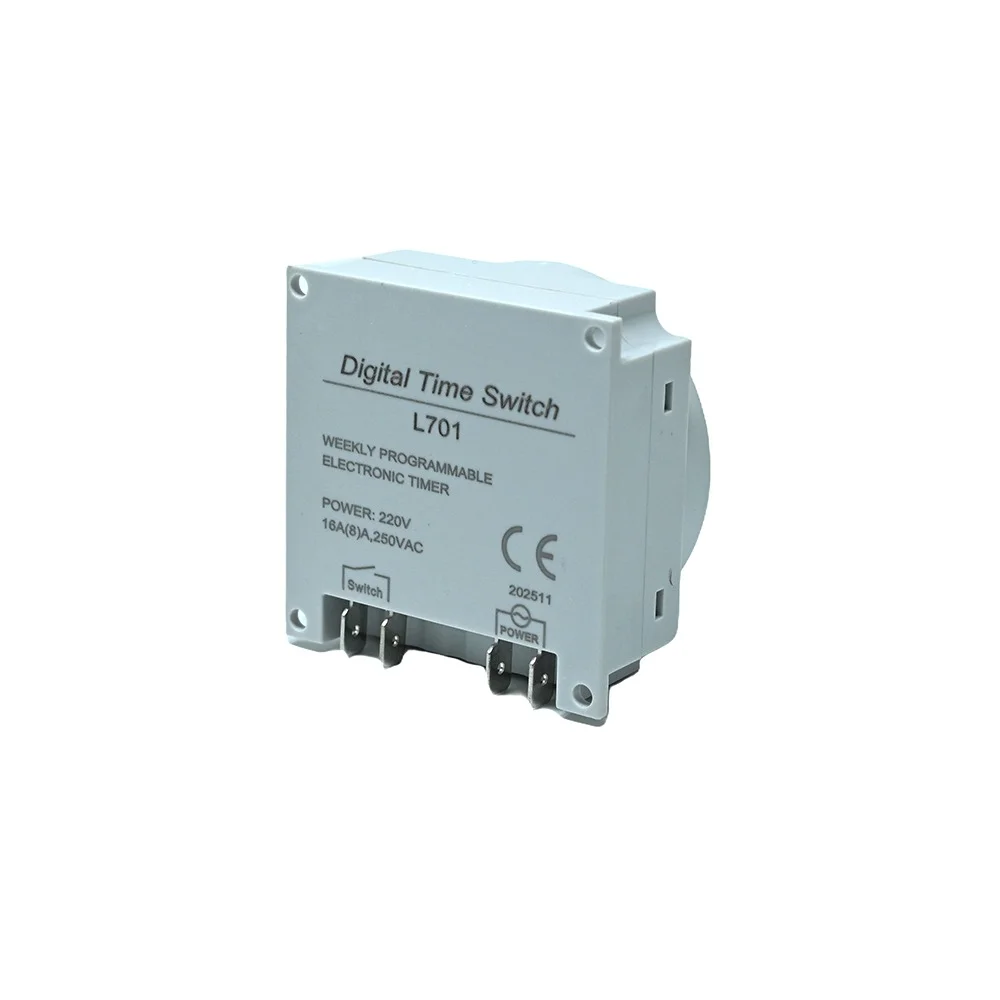

L701 Microcomputer Programmable Electronic Timer Switch 250V 16A LCD
The L701 is a microcomputer-based programmable timer switch designed for 220-250V AC operation, capable of controlling loads up to 16A. It features an LCD digital display for easy scheduling of up to 16 on/off cycles to automate lighting, appliances, and industrial equipment.
Features
- Programmable AC timer switch for 220-250V operation with a 16A maximum load capacity.
- LCD digital display provides clear feedback for setting and monitoring schedules.
- Supports up to 16 independent on/off program settings for complex daily or weekly automation.
- Internal backup battery maintains time and program memory during power outages.

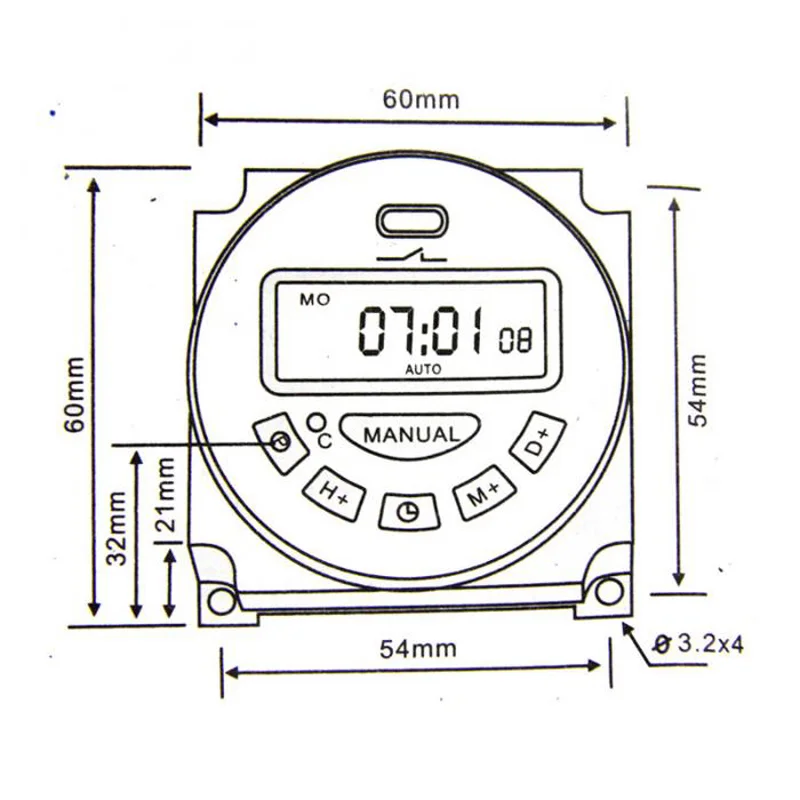

- Compact DIN rail compatible design (60x60x32mm) for easy integration into electrical panels.
Out of stock
The L701 Microcomputer Digital Timer Switch is an electronic control device engineered for precise automation of AC-powered equipment. It operates directly on the 220-250V AC line voltage, eliminating the need for a separate power supply, and integrates a real-time clock with a backup battery to ensure schedule retention. The unit’s core function is to provide reliable, scheduled switching for a wide range of applications, from residential lighting to industrial machinery control.

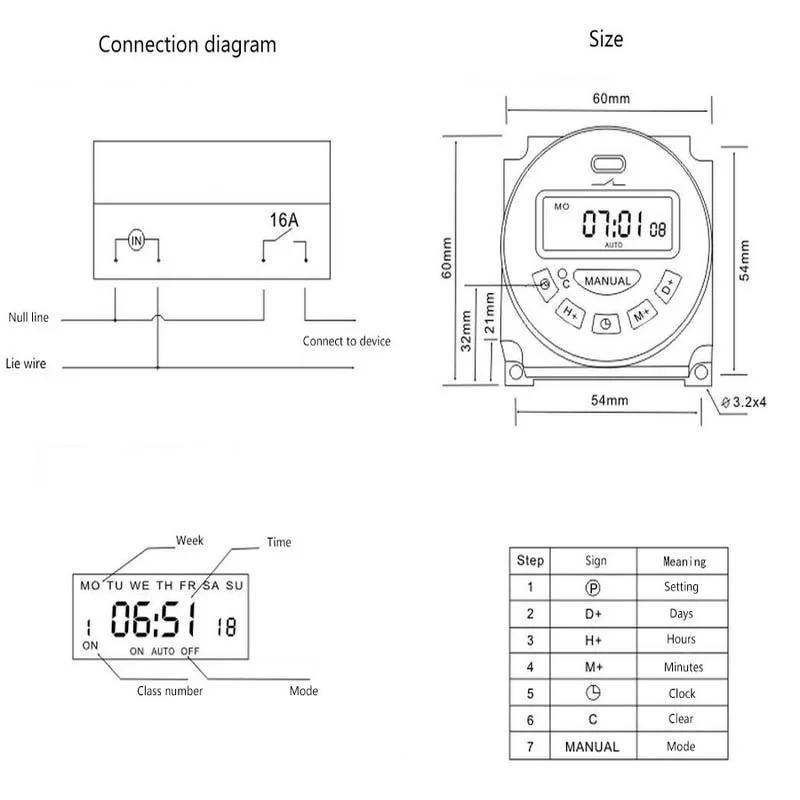

Its user interface centers around a clear LCD screen and tactile membrane buttons for programming the 16 available on/off events. Each event can be set with independent day selection, allowing for sophisticated weekly schedules. The timer’s microcomputer provides automatic error correction for timekeeping accuracy, ensuring long-term operational reliability within its specified temperature range.
Additional Information
| Weight | 0.065 kg |
|---|---|
| Dimensions | 6 × 6 × 3.2 cm |
