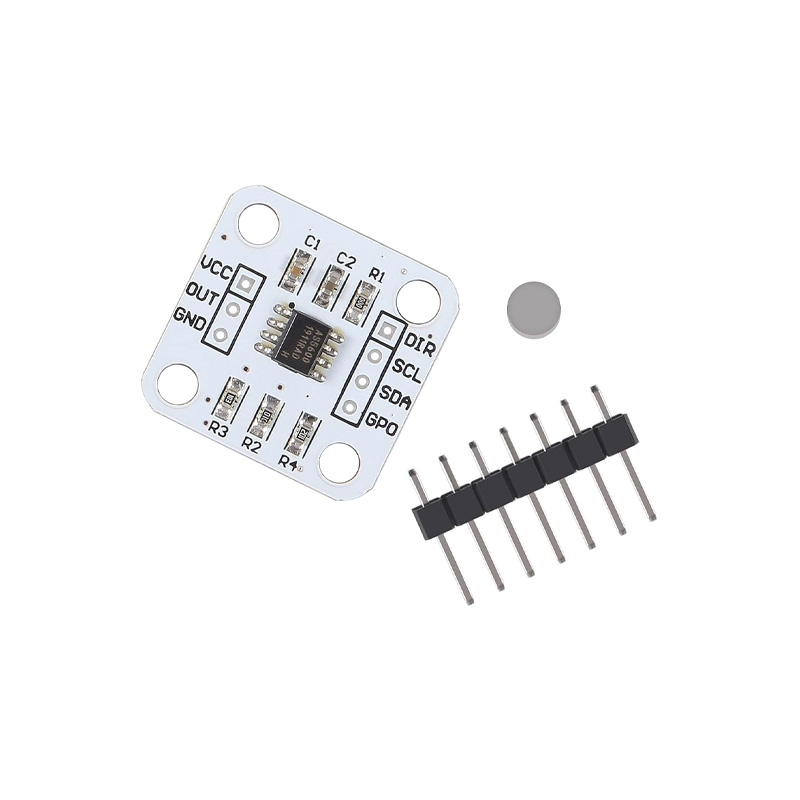

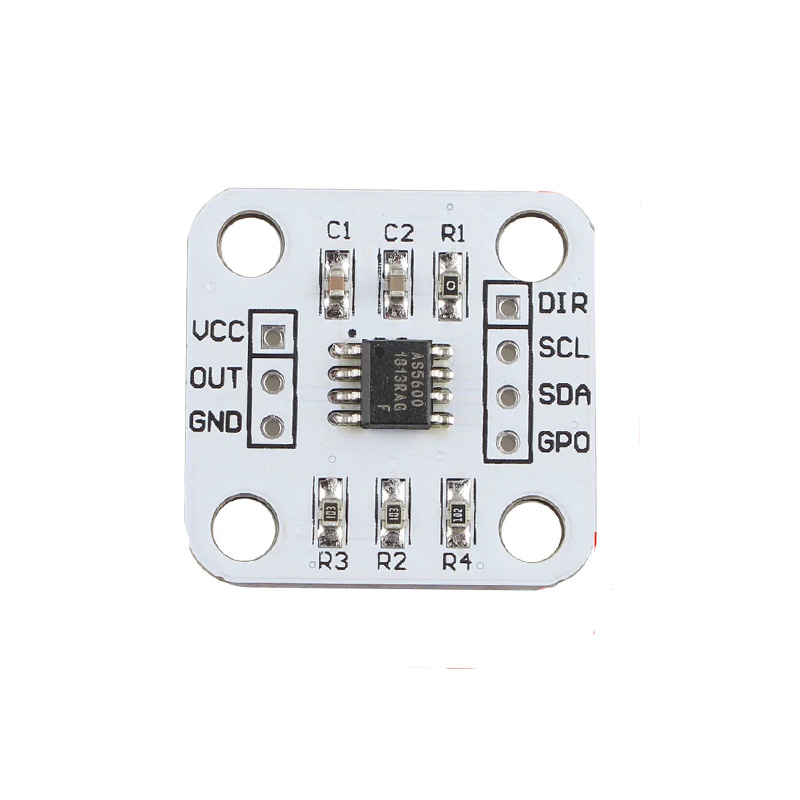

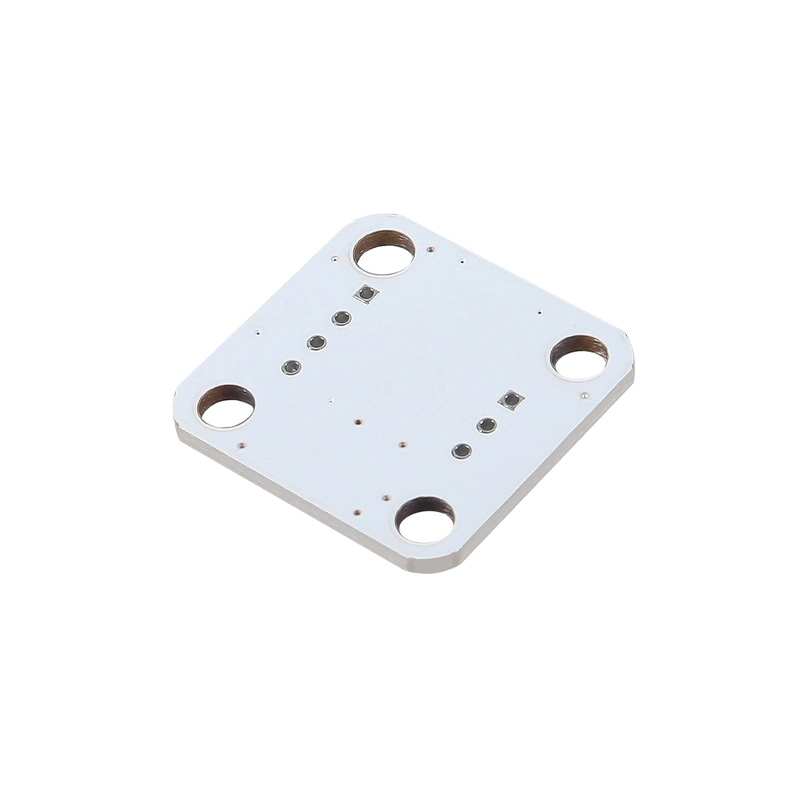

Generic AS5600 Magnetic Encoder Sensor Module - 12-bit, I2C/PWM/Analog Output
The AS5600 Magnetic Encoder Sensor Module is a high-precision, non-contact rotary position sensor offering 12-bit resolution (4096 positions per revolution). It provides flexible I2C, PWM, and analog voltage outputs for seamless integration with microcontrollers like Arduino, Raspberry Pi, and ESP32, as well as industrial PLCs for motor control and robotics.
Features
- 12-bit high-resolution DAC output for 4096 positions per revolution
- Non-contact magnetic angle sensing via Hall effect principle
- Flexible I2C, PWM, and analog voltage output interfaces
- Wide operating temperature range from -40°C to 125°C
- Compact module design with 3.3V DC power supply
Out of stock
The AS5600 Magnetic Encoder Sensor Module operates on the Hall effect principle, converting changes in a rotating magnet’s magnetic field into precise electrical signals without physical contact. This non-contact design ensures long-term reliability and eliminates mechanical wear, making it suitable for demanding applications.
Featuring a 12-bit digital-to-analog converter (DAC), the module provides high-resolution angular position feedback. It supports multiple output modes, including I2C for digital communication, PWM for direct duty-cycle reading, and an analog voltage output proportional to the angle, offering versatile integration options for various control systems and development platforms.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 3 × 3 × 1 cm |
