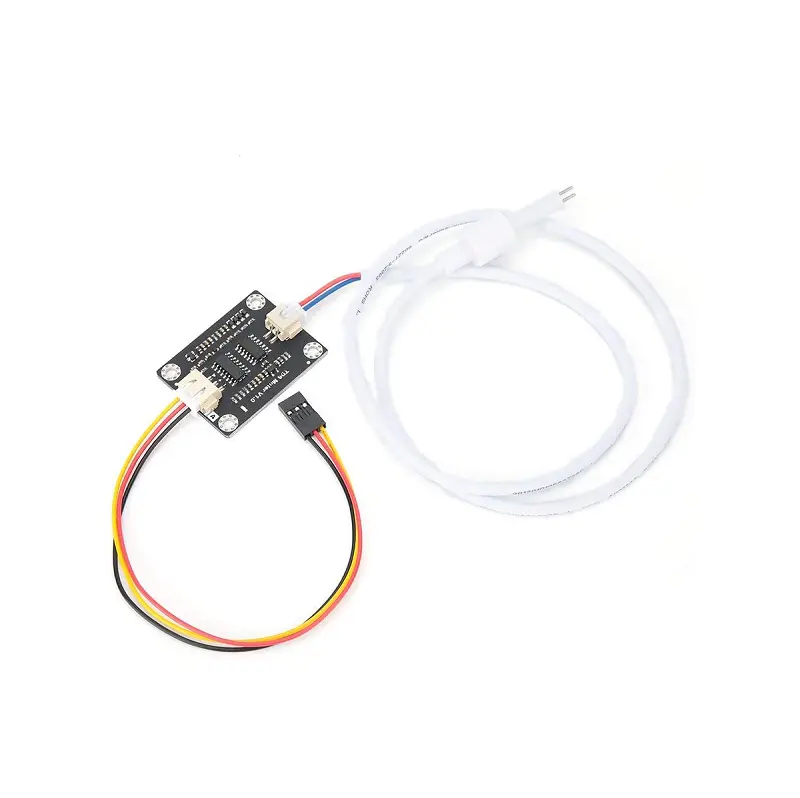

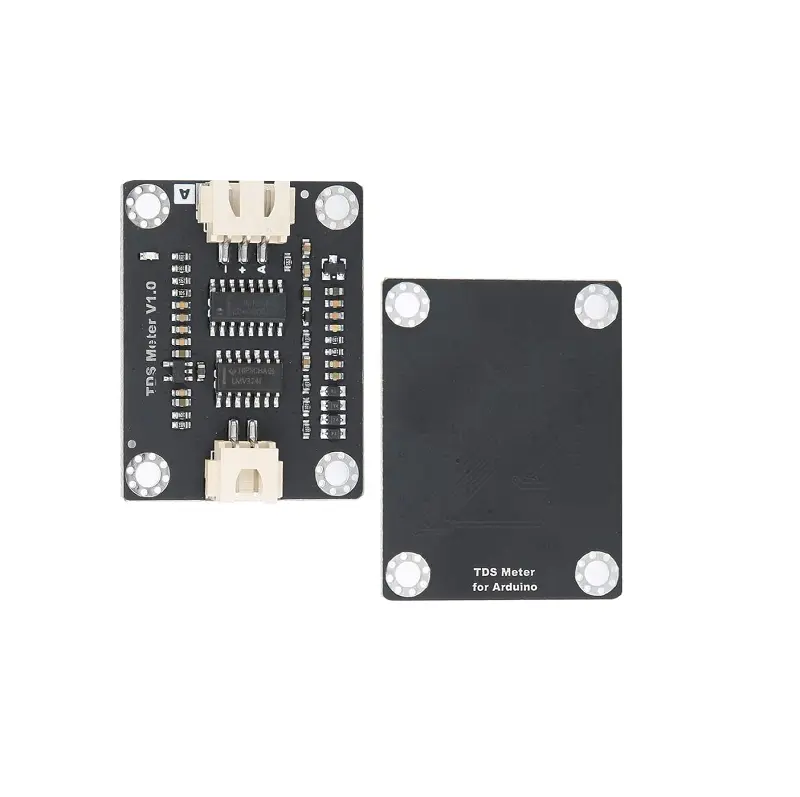

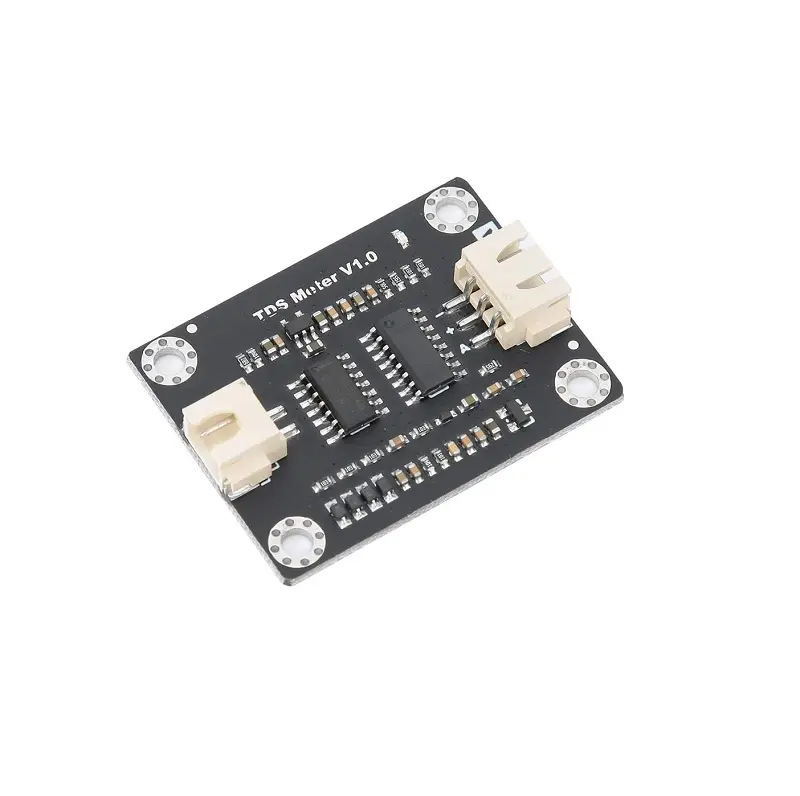

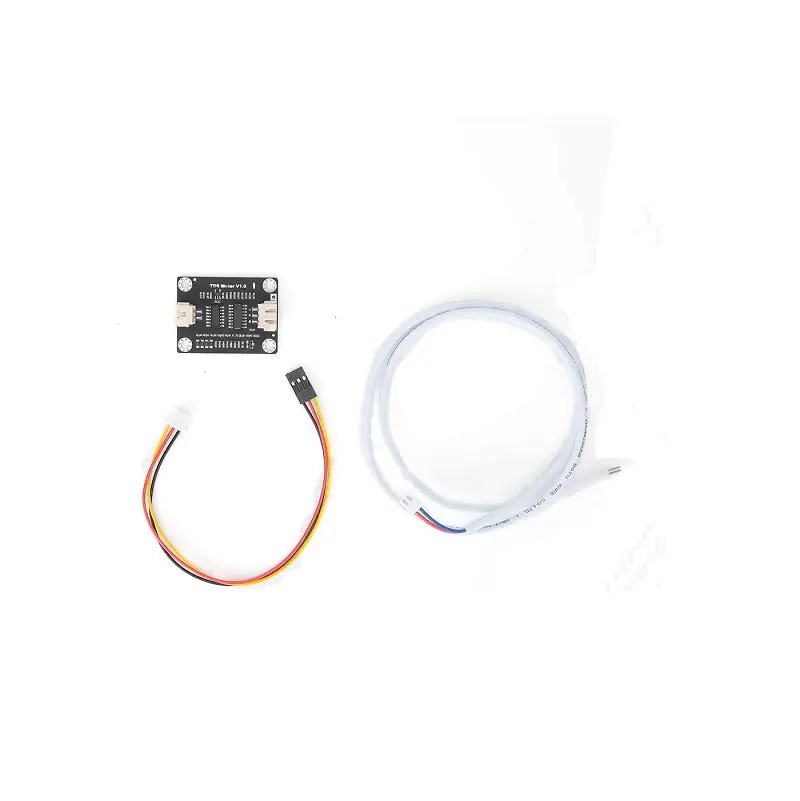

Generic Analog TDS Sensor Module - 0-2.3V Output, Waterproof Probe
This analog TDS sensor module provides a 0-2.3V output signal for measuring water purity, compatible with 3.3V and 5V systems like Arduino and Raspberry Pi. Its waterproof probe is designed for long-term immersion in aqueous solutions.
Features
- 0-1000 ppm TDS measurement range with ±10% full-scale accuracy.
- 0-2.3V analog output compatible with 3.3V and 5V microcontroller ADCs.
- Wide 3.3-5.5V DC operating voltage for flexible system integration.
- AC excitation source prevents electrode polarization for stable readings.
- IP68-equivalent waterproof probe for continuous immersion applications.
Out of stock
This TDS sensor module is engineered for monitoring total dissolved solids in water, a key indicator of purity. It employs a conductivity-based sensing principle where an AC excitation signal is applied to the probe’s electrodes to measure solution conductivity, which is then correlated to TDS concentration. This AC method prevents DC polarization, ensuring long-term measurement stability and extending the probe’s operational lifespan.
The module outputs a linear 0-2.3V analog signal corresponding to the 0-1000 ppm range, making it directly interfaceable with the analog inputs of most microcontrollers and data acquisition systems. Its low operating current of approximately 3 mA makes it suitable for battery-powered monitoring stations. The encapsulated probe is fully submersible, constructed for durable use in various aqueous environments.
Additional Information
| Weight | 0.06 kg |
|---|---|
| Dimensions | 4.2 × 3.2 cm |
