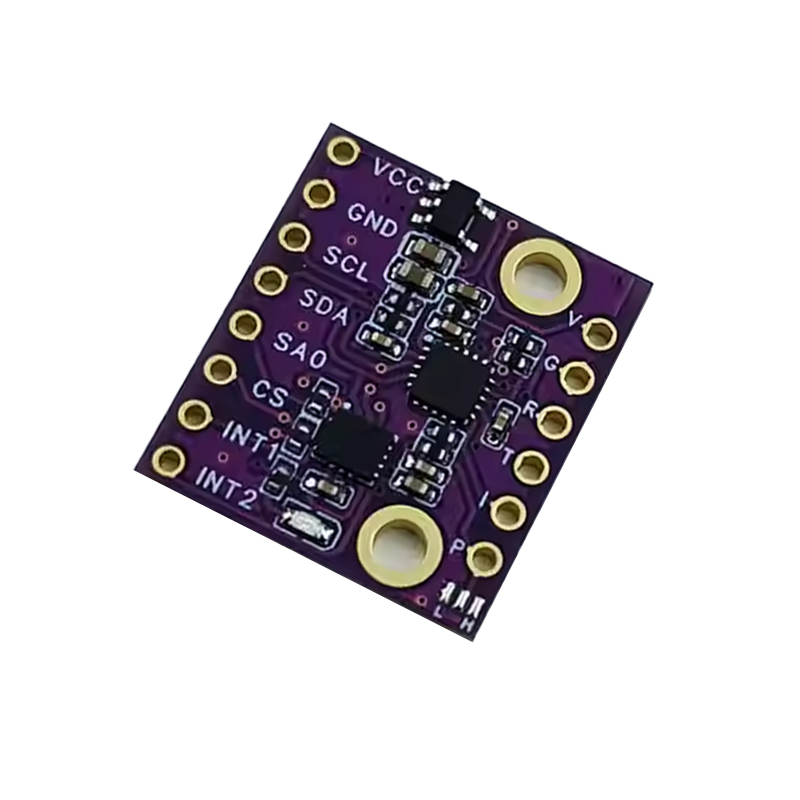

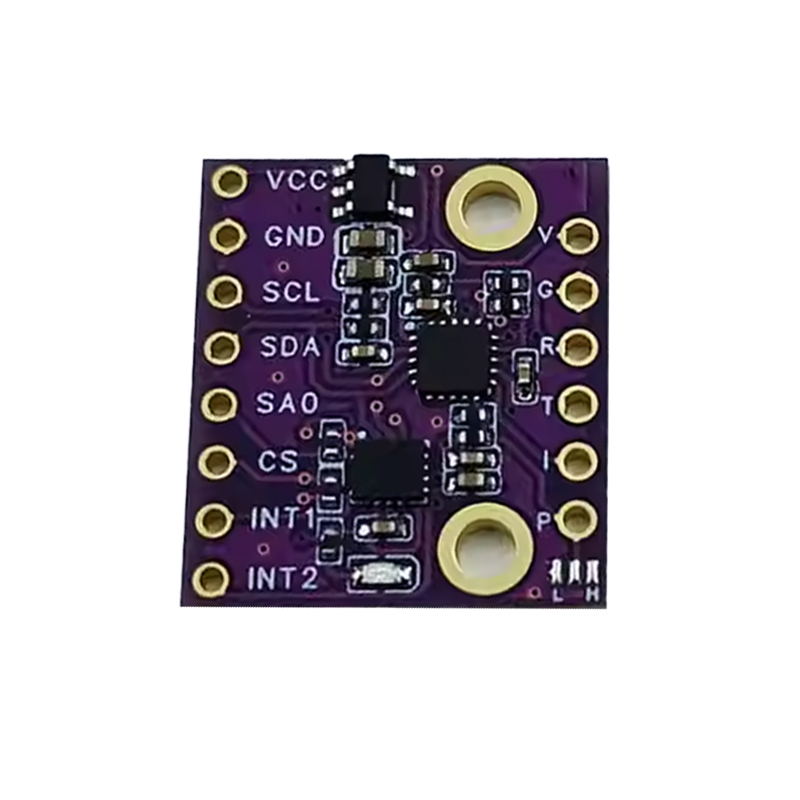

Generic 601N1-ICM42688 6-Axis Gyroscope Accelerometer Module - I2C/SPI/UART Interface

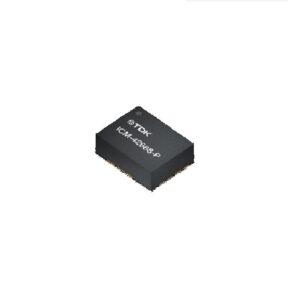

The module supports three standard digital interfaces: I2C, SPI, and UART. The I2C and SPI interfaces provide direct access to the raw sensor registers of the ICM-42688 chip. The UART interface outputs pre-processed angle data (pitch, roll, yaw) from the onboard MCU, simplifying integration for applications requiring immediate orientation information.

The module operates from a 3V to 5V DC power supply, making it compatible with both 3.3V and 5V microcontroller systems. Under typical operating conditions, it draws approximately 8mA, which is a low-power profile suitable for battery-powered devices like portable trackers, drones, and wearable technology.

It provides both options. Via the I2C or SPI interface, you can read the raw gyroscope and accelerometer data from the ICM-42688 sensor for custom sensor fusion algorithms. Alternatively, the onboard MCU runs its own fusion algorithm and outputs processed, real-time Euler angles (pitch, roll, yaw) directly through the UART interface, reducing processing load on your main host controller.

The ICM-42688 MEMS sensor is designed for robust performance, but the module itself is a standard PCB without specialized mechanical damping. For high-vibration industrial environments or applications experiencing sustained high-G forces, additional mechanical isolation and mounting considerations are recommended to ensure signal accuracy and module longevity.
