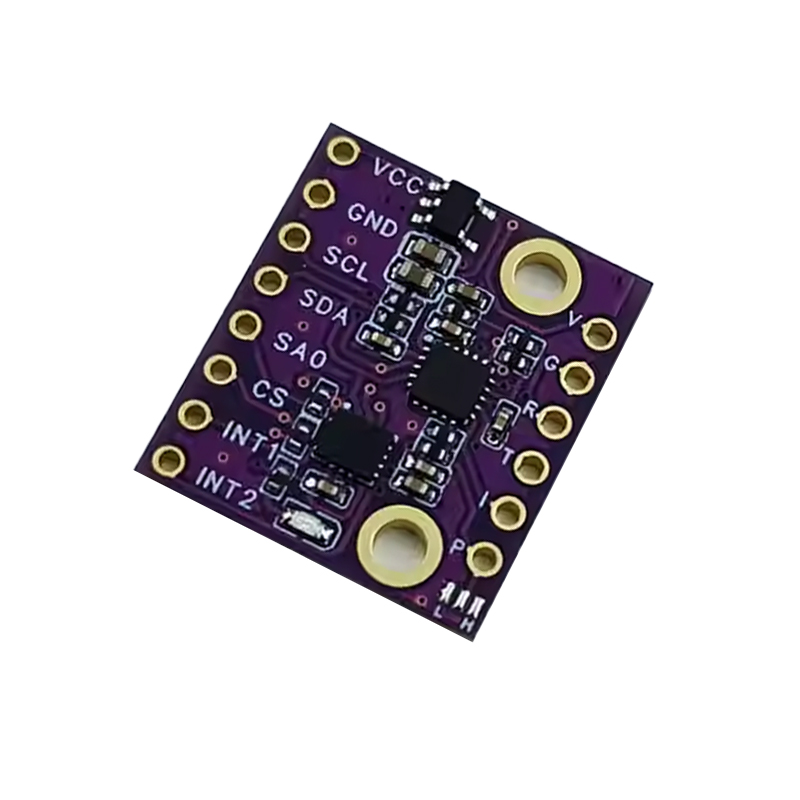

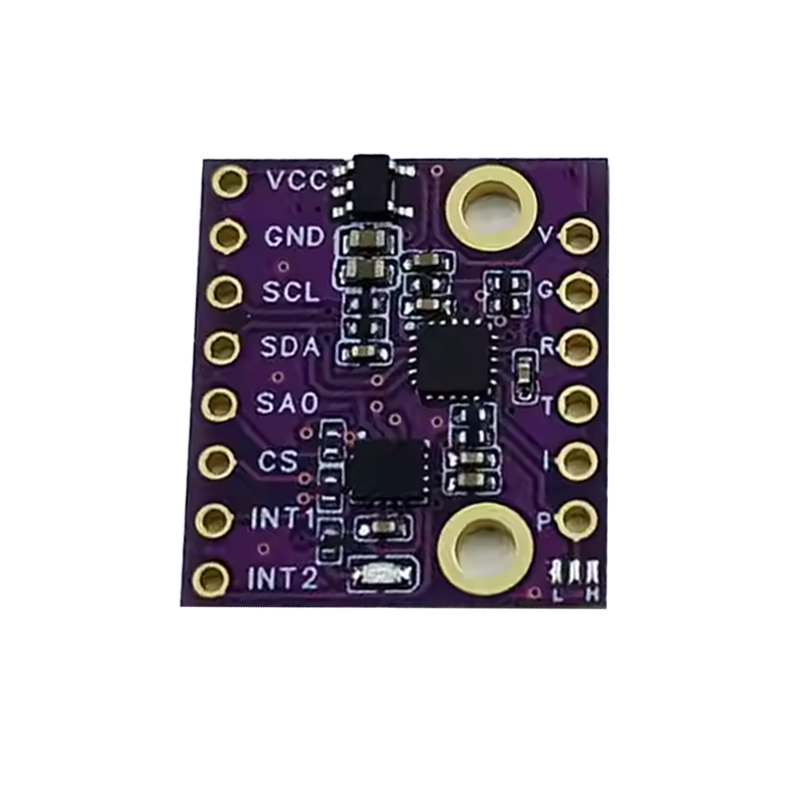

Generic 601N1-BMI323 6-Axis Gyroscope Sensor Module - I2C/SPI/UART Interface
The 601N1-BMI323 is a 6-axis inertial measurement unit (IMU) integrating a 3-axis gyroscope and 3-axis accelerometer with an onboard MCU for direct angle output via UART. It supports 3.3V/5V logic systems and offers flexible I2C, SPI, and UART interfaces for seamless integration with Arduino, Raspberry Pi, ESP32, and STM32 platforms.
Features
- 6-axis MEMS sensor fusion (3-axis gyroscope + 3-axis accelerometer)
- Onboard MCU provides processed angle data via UART output
- Multi-protocol interface: I2C, SPI, and UART communication options
- Low power operation: 3-5V DC supply at ~8mA current draw
- Compact immersion gold PCB for robust signal integrity and durability
Out of stock
The 601N1-BMI323 module leverages a high-performance BMI323 MEMS sensor core to deliver precise angular rate and linear acceleration measurements. The integrated microcontroller runs sensor fusion algorithms, providing stable, calibrated angle outputs directly via serial UART, reducing processing load on the host system. This design ensures reliable motion tracking in dynamic environments.
Built on an immersion gold PCB, the module offers excellent corrosion resistance and stable electrical contacts for long-term reliability. Its compact form factor and low power consumption make it suitable for battery-powered and space-constrained applications, from robotic platform stabilization to wearable motion capture systems.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 2.1 × 2.1 cm |
