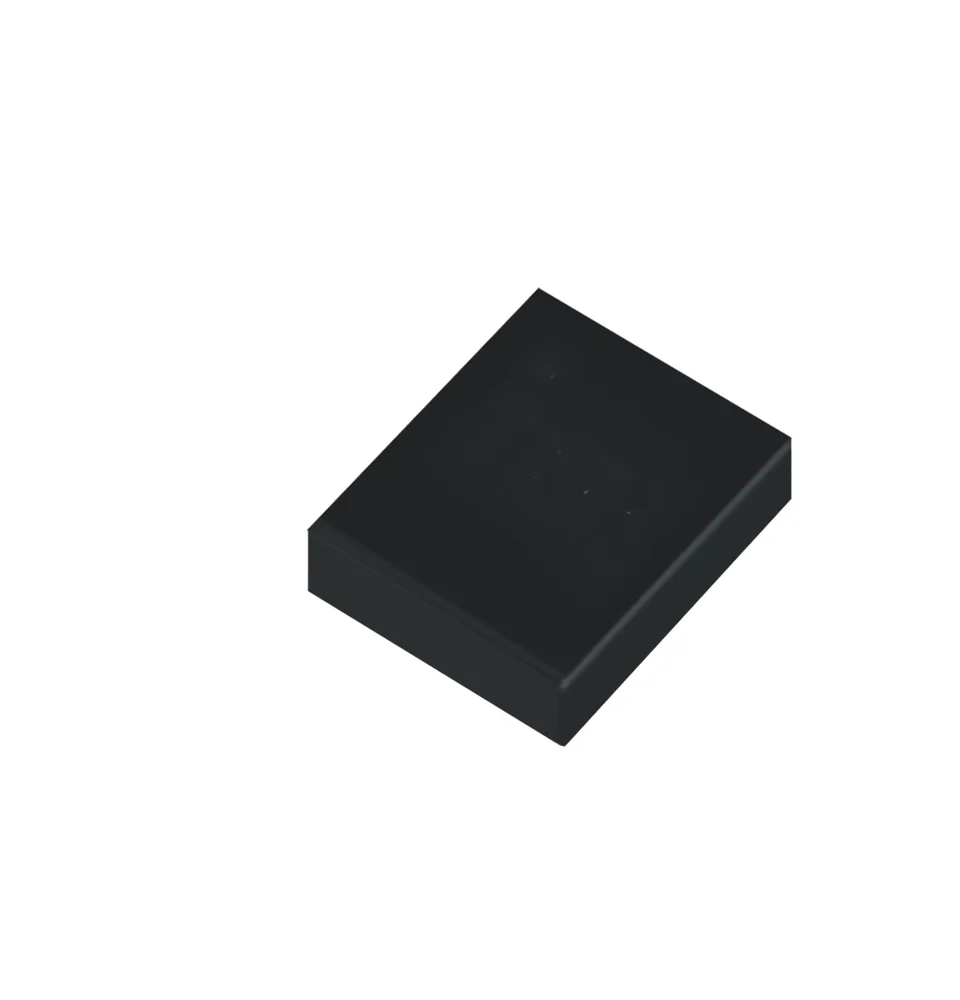

STMicroelectronics ASM330LHH Automotive 6-Axis IMU Sensor, ±16g Accelerometer, ±4000 dps Gyroscope, SPI/I²C, AEC-Q100

The ASM330LHH is AEC-Q100 qualified, meaning it undergoes rigorous testing for reliability, temperature cycling, and longevity required for automotive applications. It operates reliably from -40°C to +105°C, features synchronized 6-axis output for precise sensor fusion, and includes an integrated 3KB FIFO—specifications typically beyond consumer IMU modules.

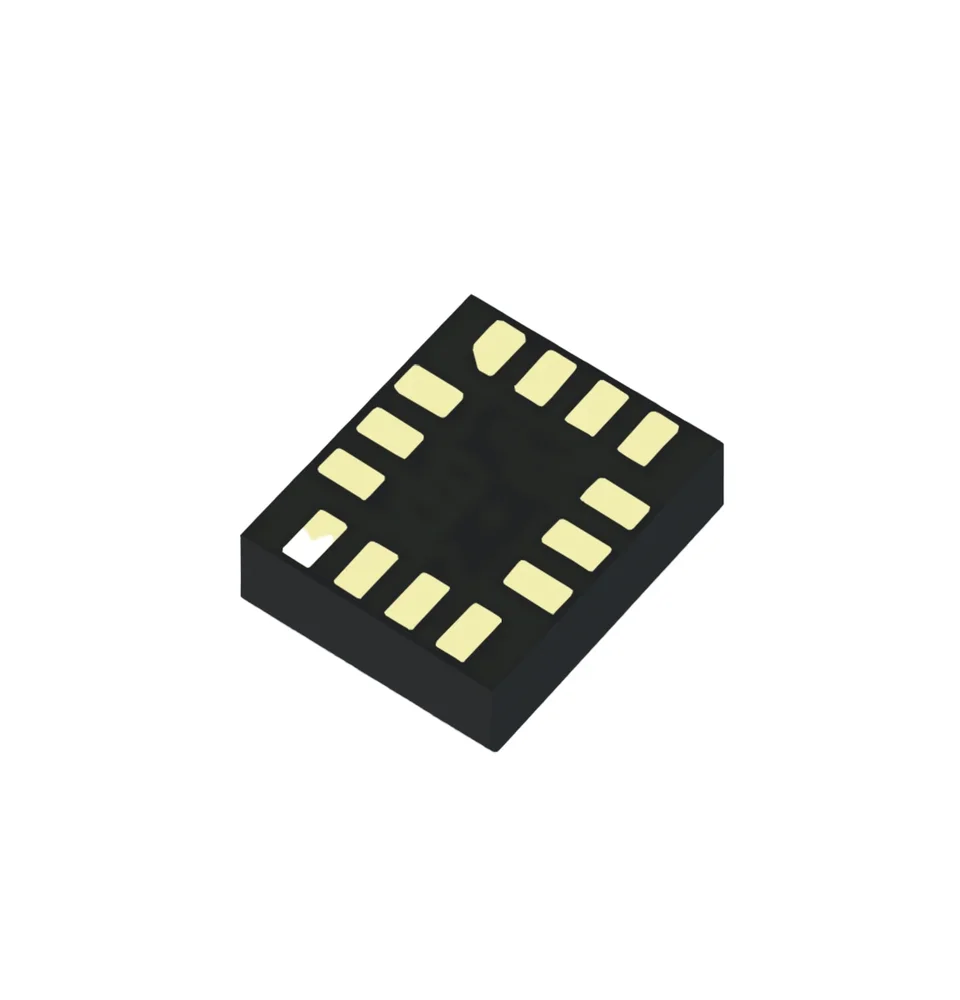

The sensor supports both 4-wire SPI (up to 10 MHz) and I²C (up to 1 MHz) interfaces. The interface is selected via the CS (Chip Select) pin state. For SPI, use the dedicated SDO/SA0, SCL/SCLK, and SDA/SDI pins. For I²C, the SA0 pin sets the LSB of the 7-bit device address. Refer to the datasheet for the detailed pinout and register map.

Yes, its high dynamic range (accelerometer up to ±16g) and configurable output data rates (up to 6.66 kHz) make it suitable for capturing high-frequency vibrations and transient shock events. The integrated FIFO allows for burst data capture without constant host processor polling, ideal for monitoring mechanical health in industrial equipment.

The FIFO (First-In, First-Out) buffer stores accelerometer and gyroscope data, allowing the host microcontroller to enter low-power sleep modes while the sensor continues sampling. The host can wake up periodically to read a batch of data, significantly reducing system-level power consumption and minimizing interrupt load on the main processor.
