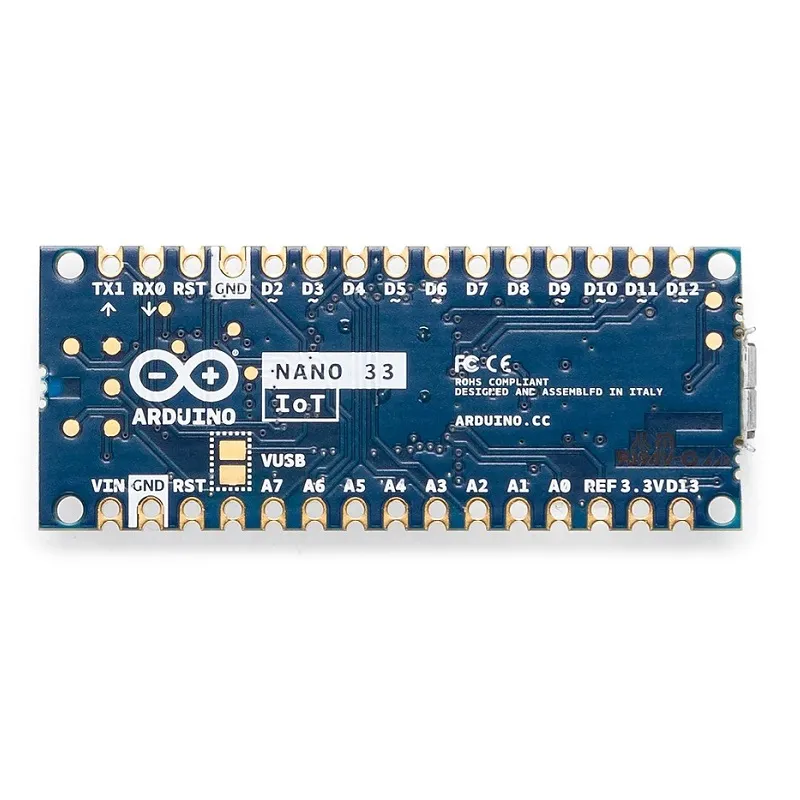

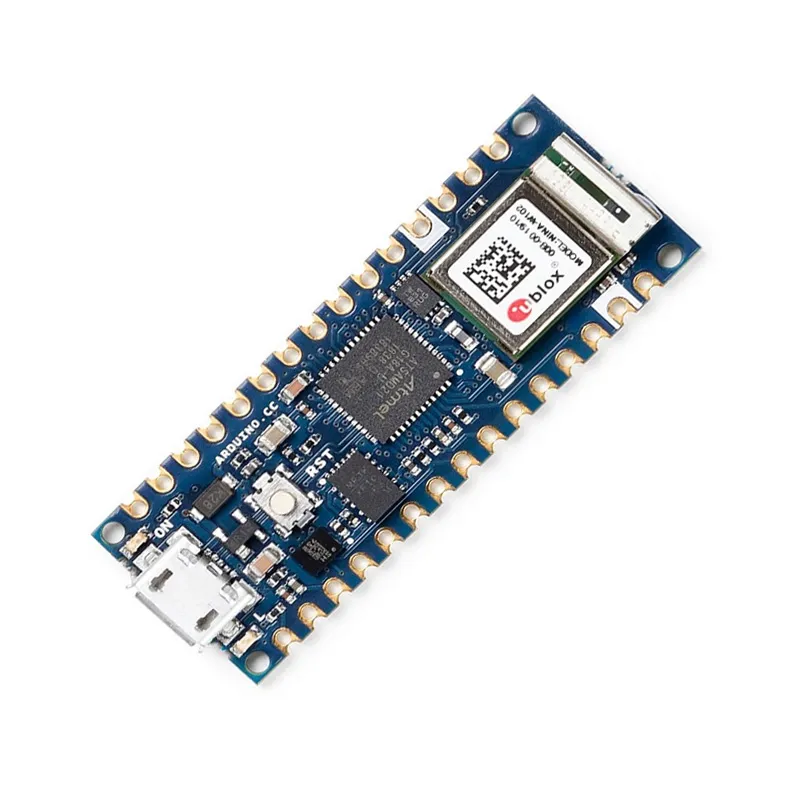

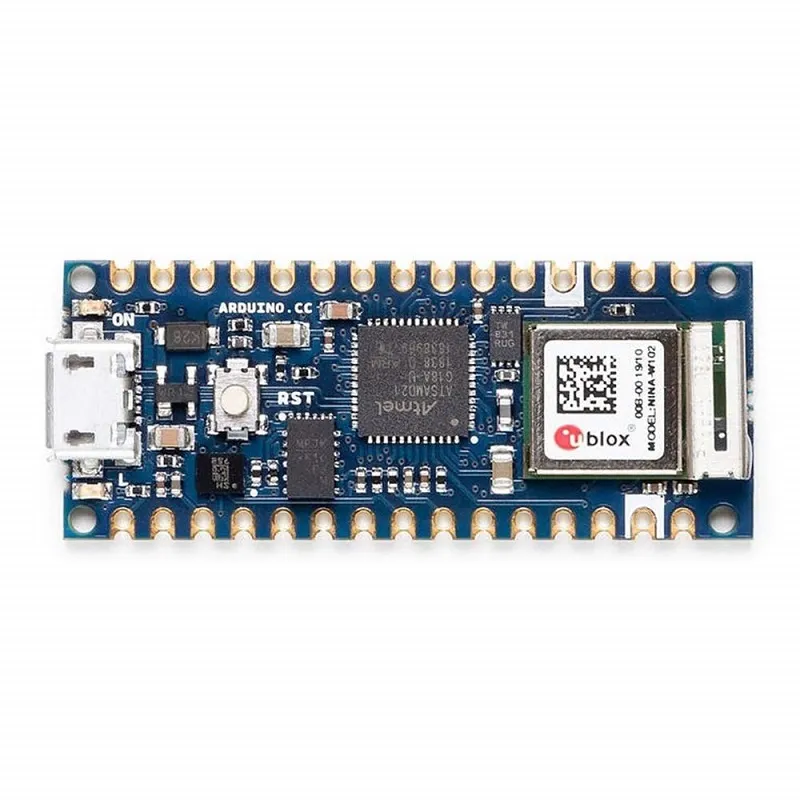

Arduino Nano 33 IoT Development Board ABX00027
The Arduino Nano 33 IoT is a compact, low-power development board featuring an Arm Cortex-M0+ SAMD21 microcontroller. It integrates Wi-Fi and Bluetooth connectivity via a u-blox NINA-W102 module, an ATECC608A crypto chip for secure communication, and a 6-axis IMU for motion sensing, making it ideal for IoT and pico-network applications.
Features
- Arm Cortex-M0+ SAMD21 MCU @ 48MHz for efficient processing and low power consumption.
- Integrated u-blox NINA-W102 module provides robust 2.4GHz Wi-Fi and Bluetooth connectivity.
- Enhanced security with an ATECC608A crypto chip for hardware-based secure communication.
- Onboard LSM6DS3 6-axis IMU supports motion sensing and relative positioning applications.
- Compact Arduino Nano form factor operates at 3.3V, ideal for embedded IoT and pico-network designs.
Out of stock
The Arduino Nano 33 IoT offers an accessible and cost-effective solution for integrating existing devices into the Internet of Things (IoT) and developing new pico-network applications. It serves as a versatile platform for various fundamental IoT scenarios, from establishing sensor networks connected to a local router to creating Bluetooth Low Energy (BLE) devices that transmit data to mobile phones.
At its core, the board is powered by a low-power Arm Cortex-M0+ 32-bit SAMD21 microcontroller. Wireless communication capabilities are provided by the u-blox NINA-W102 module, a 2.4GHz chipset supporting both Wi-Fi and Bluetooth. For robust data protection, the Nano 33 IoT incorporates a Microchip Technology ATECC608A crypto chip, ensuring secure communication pathways. Additionally, a 6-axis Inertial Measurement Unit (IMU) is onboard, making the board suitable for applications requiring motion detection, such as vibration alarms, pedometers, or relative robot positioning systems.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 4.5 × 1.8 cm |
