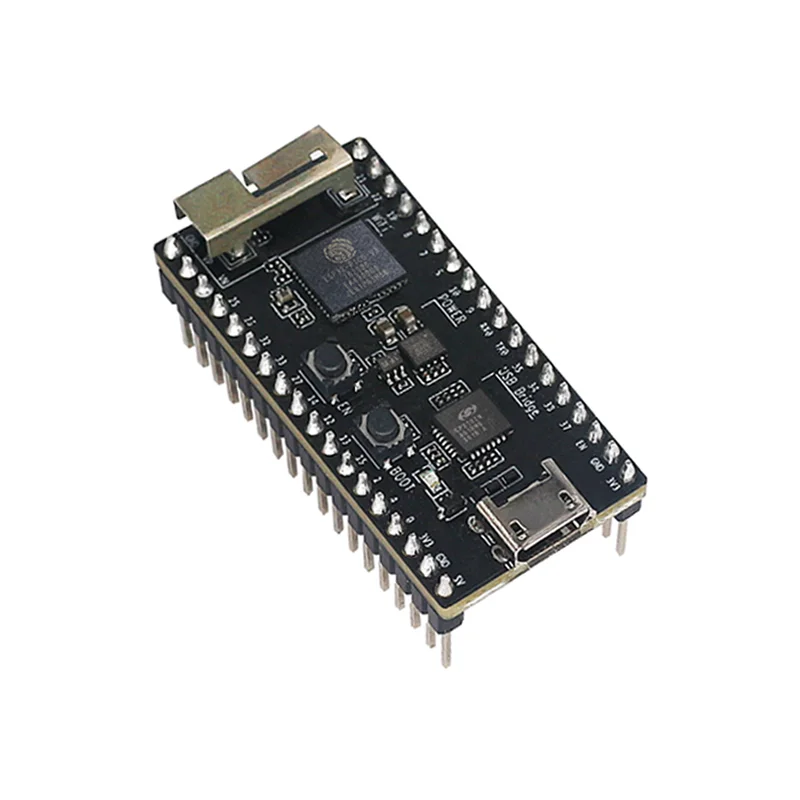

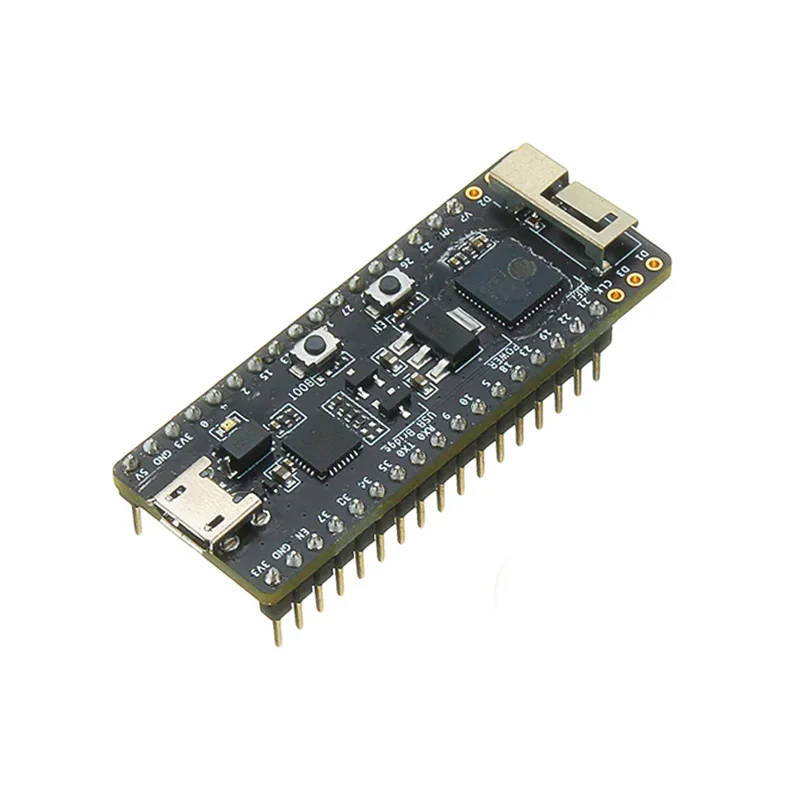

Espressif ESP32-PICO-KIT Development Board
The Espressif ESP32-PICO-KIT is a compact, all-in-one development board featuring the ESP32 SoC, an integrated CP2102N USB-to-UART bridge, and a 5V-to-3.3V LDO. It provides a complete prototyping platform for Wi-Fi and Bluetooth IoT applications, ready for Arduino IDE, ESP-IDF, or MicroPython development.
Features
- Integrated ESP32 SoC with dual-core Xtensa LX6 CPU and Wi-Fi/Bluetooth connectivity for robust IoT development.
- Onboard CP2102N USB-to-UART bridge enables high-speed (up to 3 Mbps) serial communication and easy firmware flashing.
- Built-in 5V-to-3.3V LDO voltage regulator simplifies power supply design from a standard Micro USB port.
- Comprehensive I/O connector exposes PWM, ADC, DAC, I2C, I2S, and SPI interfaces for sensor and peripheral integration.
- Compact form factor with essential RF matching network and filter capacitors for stable wireless performance.
Out of stock
The Espressif ESP32-PICO-KIT Development Board is a highly integrated, compact platform engineered for rapid IoT prototyping and embedded system development. It centers on the powerful ESP32 microcontroller, which combines a dual-core Xtensa LX6 processor with 2.4 GHz Wi-Fi and Bluetooth/Bluetooth Low Energy (BLE) radios, providing a solid foundation for connected applications.
The board’s design incorporates a complete power management system, including a low-dropout regulator (LDO) that accepts 5V input from the onboard Micro USB port and delivers a stable 3.3V supply to the ESP32 and I/O lines. The integrated CP2102N USB-to-UART bridge facilitates seamless communication with a host computer for programming, debugging, and serial data transfer at rates up to 3 Mbps, eliminating the need for external adapters.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 11 × 5 × 2 cm |
