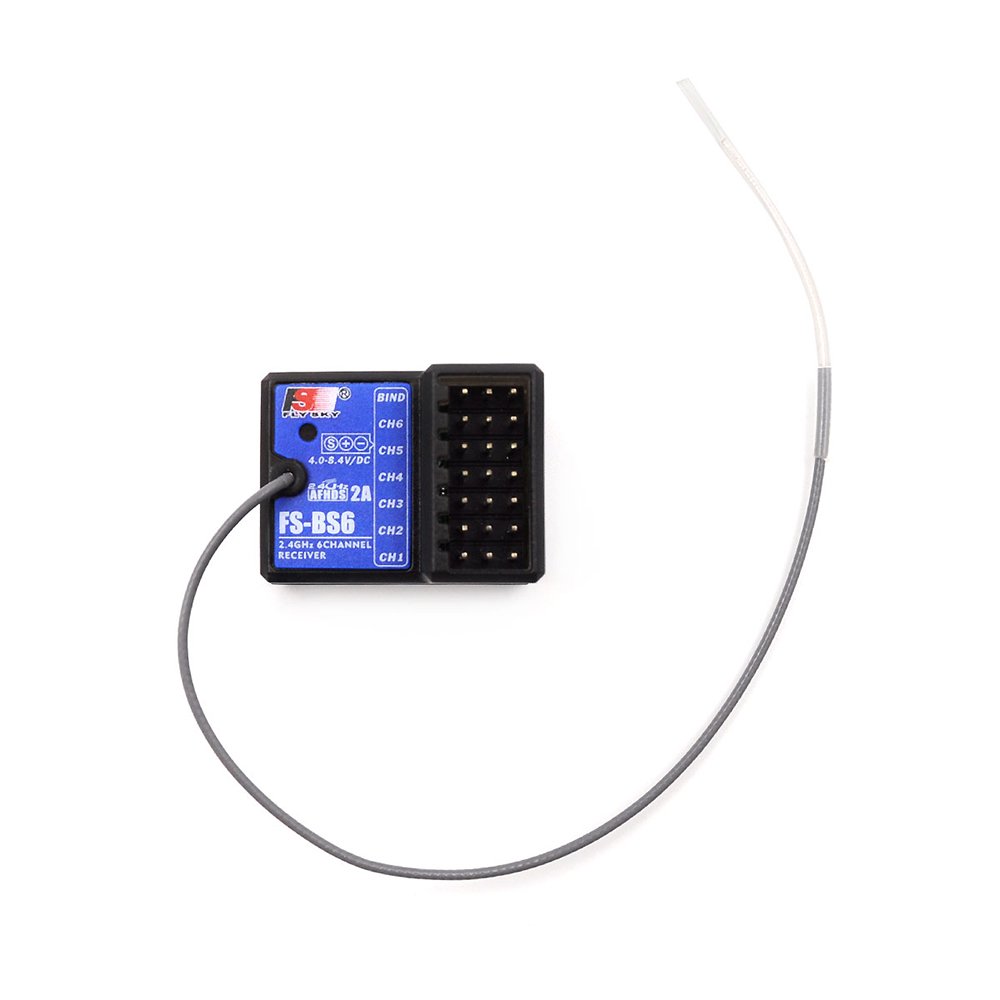

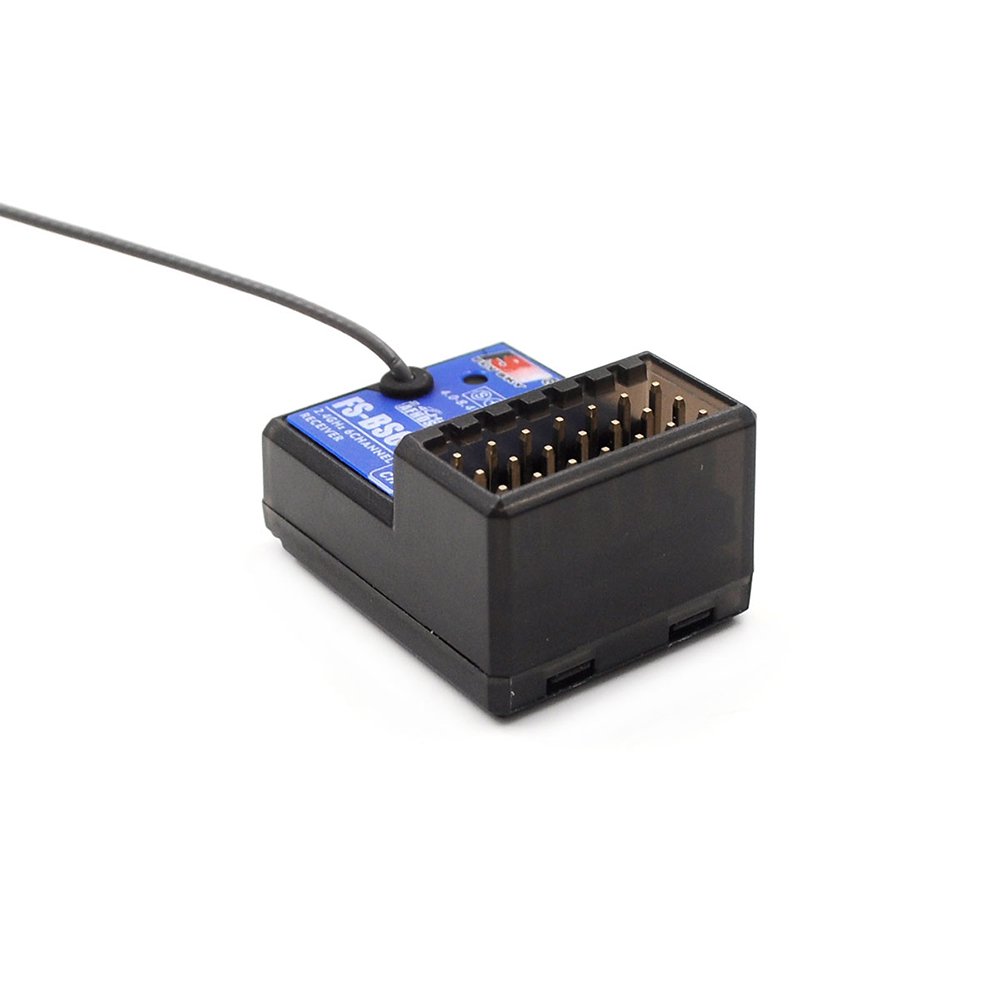

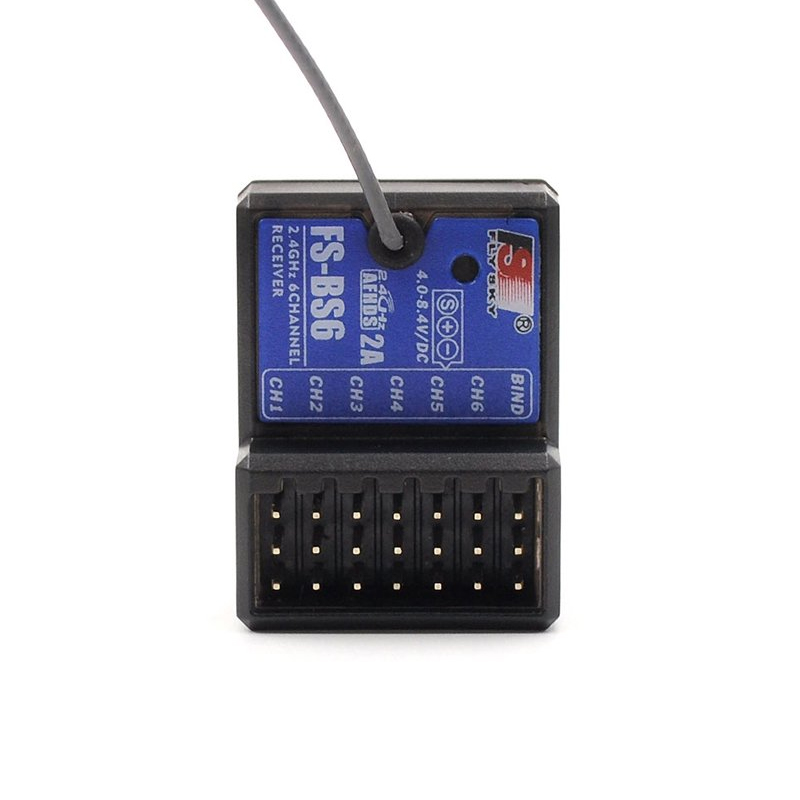

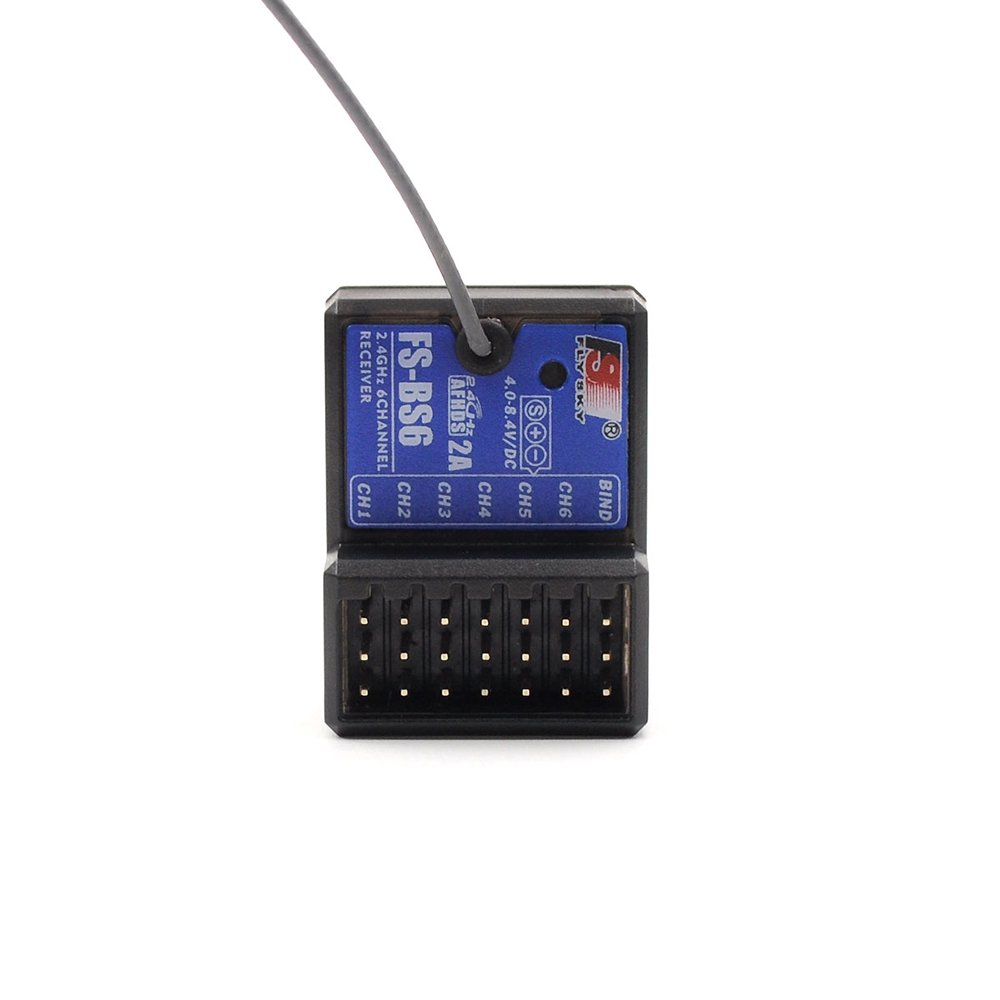

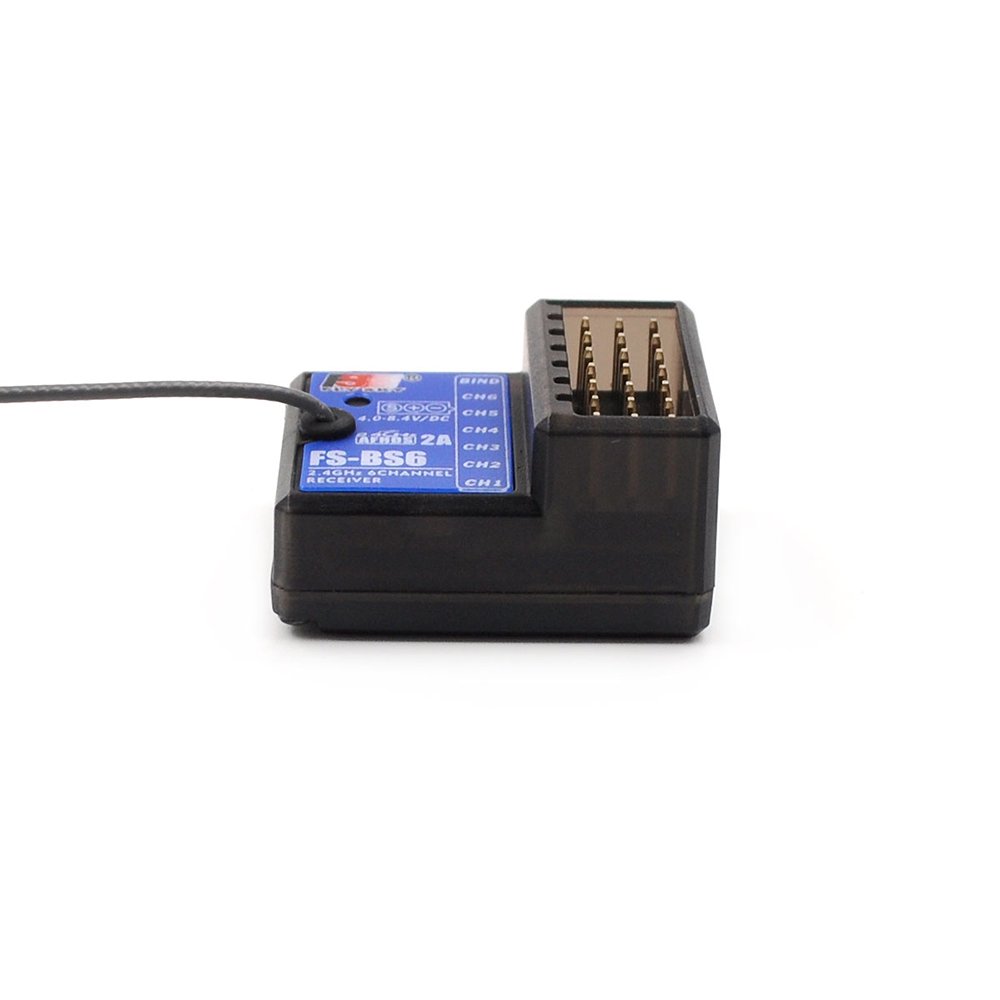

FlySky FS-BS6 6 Channel Receiver
The FlySky FS-BS6 is a compact 6-channel 2.4GHz receiver compatible with AFHDS2A system transmitters like the FS-GT5 and FS-IT4S, designed for RC car, boat, and multirotor applications with a 4.0-8.4V input range.
Features
- 6-channel AFHDS2A 2.4GHz receiver with GFSK modulation for stable control link.
- Compact and lightweight design minimizes space usage and reduces vehicle weight.
- Wide 4.0-8.4V operating voltage supports direct connection to 2S LiPo or regulated BEC power.
- Built-in gyroscope aids in automatic recovery from unexpected steering or yaw offsets.
- Compatible with FlySky FS-GT5 and FS-IT4S transmitters for surface and air vehicles.
Out of stock
The FS-BS6 receiver from FlySky provides a reliable control link for AFHDS2A protocol transmitters. Its GFSK modulation and -92dBm receiver sensitivity ensure a robust connection with low latency, suitable for dynamic RC applications. The integrated gyro feature enhances stability for surface vehicles by automatically correcting unintended drifts.
Designed for flexibility, this receiver operates on a broad voltage range, making it compatible with a variety of power systems from regulated 5V BECs up to 2S LiPo batteries. Its ultra-small form factor allows for easy integration into tight builds, from 1/10 scale RC cars to compact multirotor drones where traditional receivers are too large.
Additional Information
| Weight | 0.011 kg |
|---|---|
| Dimensions | 15 × 7 × 1 cm |
