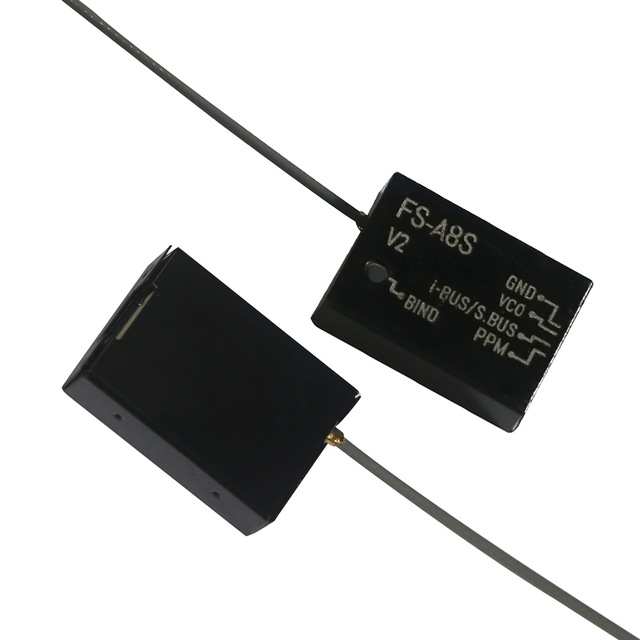

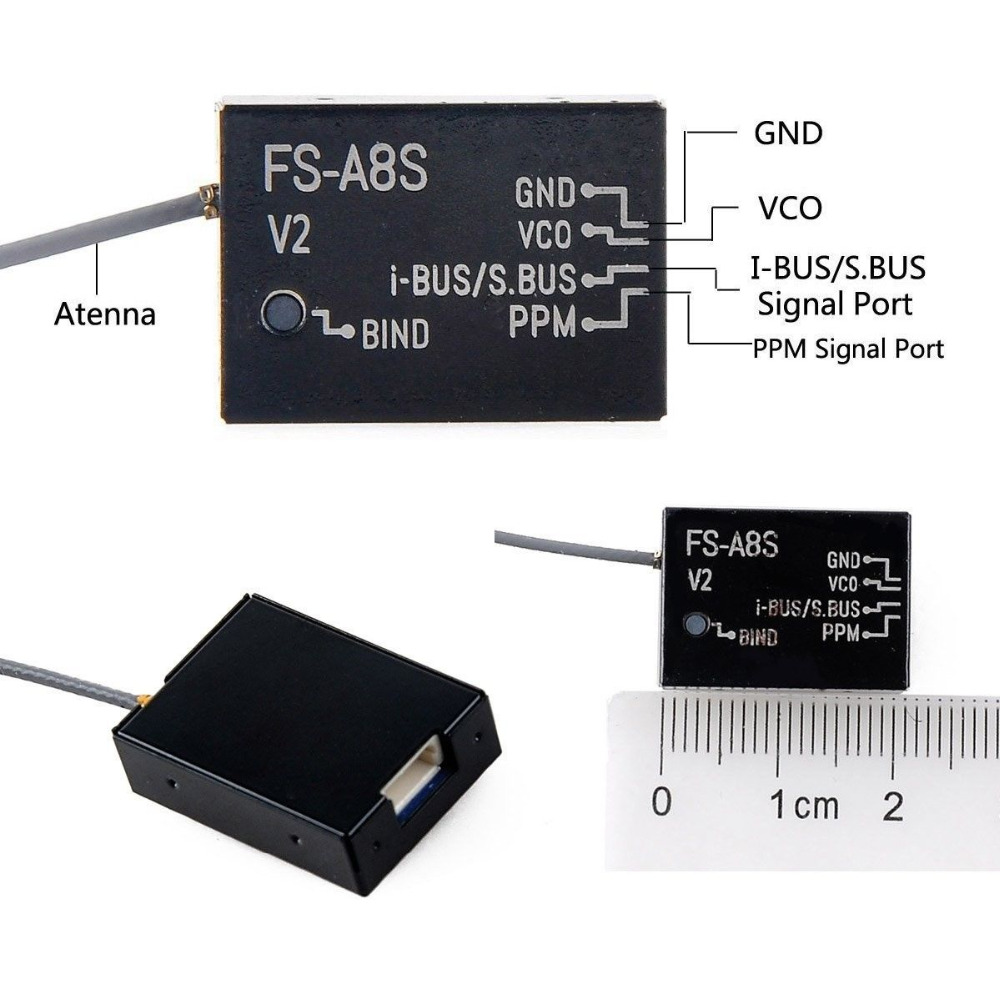

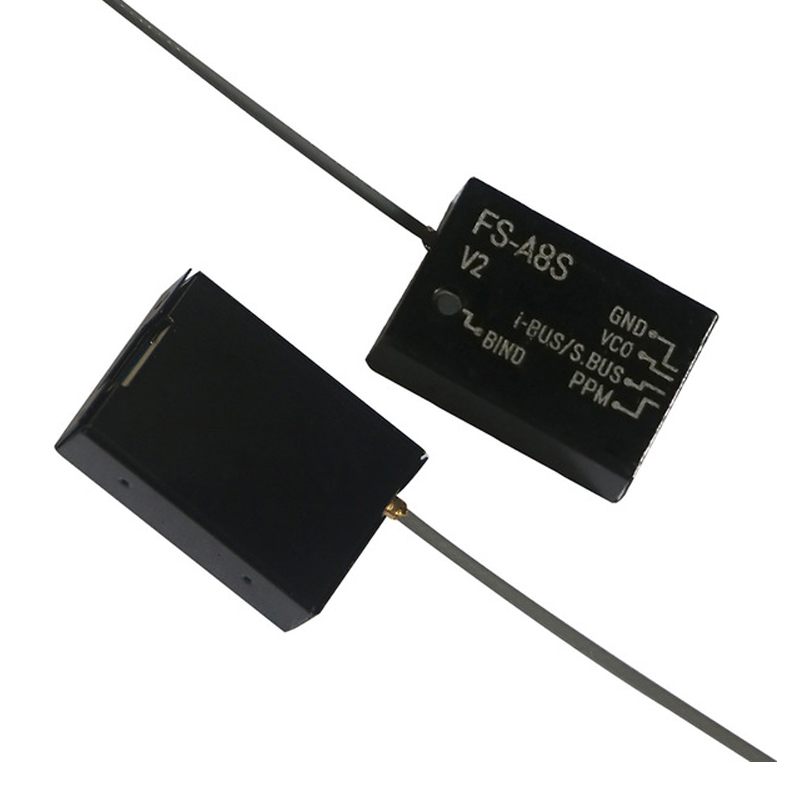

FlySky FS-A8S 2.4G 8CH Mini Receiver Module Rev 2 - Black
The FlySky FS-A8S Rev 2 is a compact 2.4GHz AFHDS 2A protocol receiver offering 8-channel PPM or 18-channel i-BUS signal output, designed for lightweight multi-rotor and FPV drone builds requiring a minimal footprint and compatibility with FlySky transmitters.
Features
- Ultra-compact dimensions of 20 x 14 x 5.3mm and a weight of just 1.2g for space-constrained builds.
- Supports AFHDS 2A protocol with PPM (8CH) and i-BUS (up to 18CH) output for flexible channel mapping.
- Wide operating voltage range from 4.0V to 8.4VDC, compatible with 1S to 2S LiPo setups via BEC.
- High sensitivity of -92 dBm and a control distance of approximately 300 meters for reliable link integrity.
- Includes a 90mm wire antenna and connecting cable for straightforward installation.
Out of stock
The FlySky FS-A8S Rev 2 receiver is engineered for drone pilots prioritizing weight savings and component miniaturization without sacrificing radio link reliability. Its AFHDS 2A 2.4GHz system employs automatic frequency hopping across 135 bands to maintain a stable connection in noisy RF environments, crucial for FPV racing and freestyle applications.

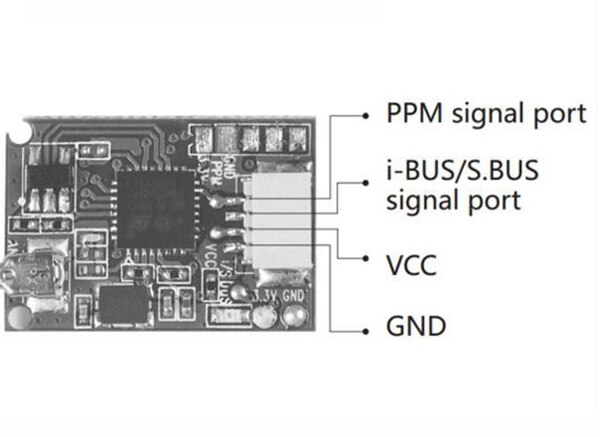

This one-way receiver provides versatile signal output through its SC port, supporting both traditional PPM for basic channel control and the digital i-BUS protocol for higher channel count and faster data transmission to compatible flight controllers. The unit’s low current consumption of 40mA ensures minimal drain on the aircraft’s power system.
Additional Information
| Weight | 0.0012 kg |
|---|---|
| Dimensions | 2 × 1.4 × 0.53 cm |
