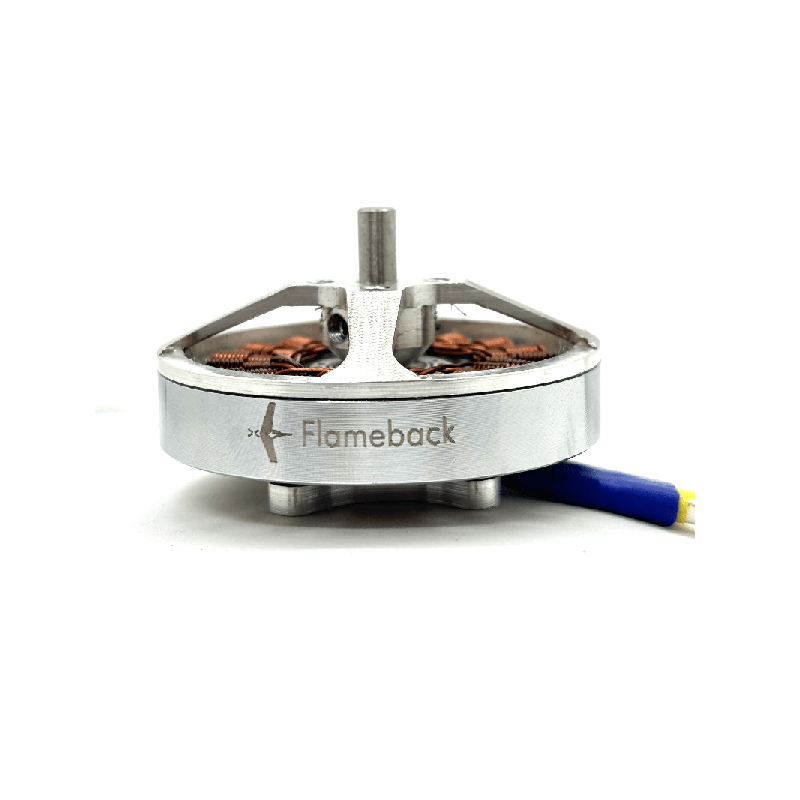

Flameback 4006 320KV BLDC Motor
The Flameback 4006 320KV brushless motor is engineered for medium-lift UAV applications, delivering over 2 kg of thrust from a 70g frame. Compatible with 4-6S LiPo batteries, it provides up to 350W of continuous power for stable, efficient flight in demanding aerial photography and delivery drone platforms.
Features
- Delivers over 2 kg (2170g) of maximum thrust for medium-lift UAV applications.
- Optimized 320KV rating supports efficient operation on 4-6S LiPo battery systems.
- Features an 18N24P configuration and integrated finned housing for superior thermal management and smooth operation.
- Constructed with a corrosion-resistant stator and sealed design for reliable performance in humid or dusty environments.
- Precision 4mm shaft and 18 AWG wiring ensure robust mechanical and electrical integration.
Out of stock

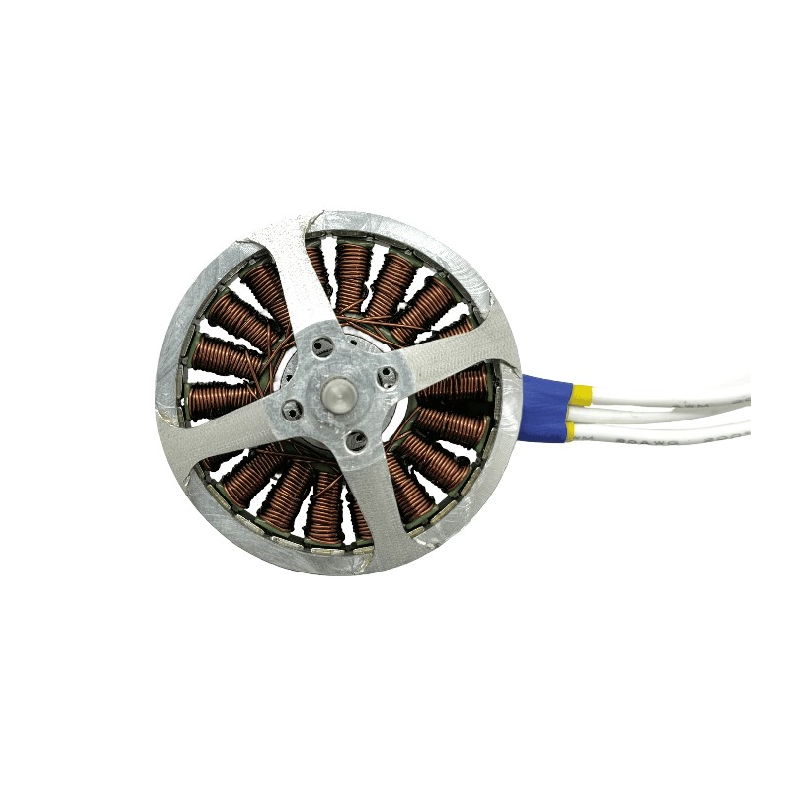

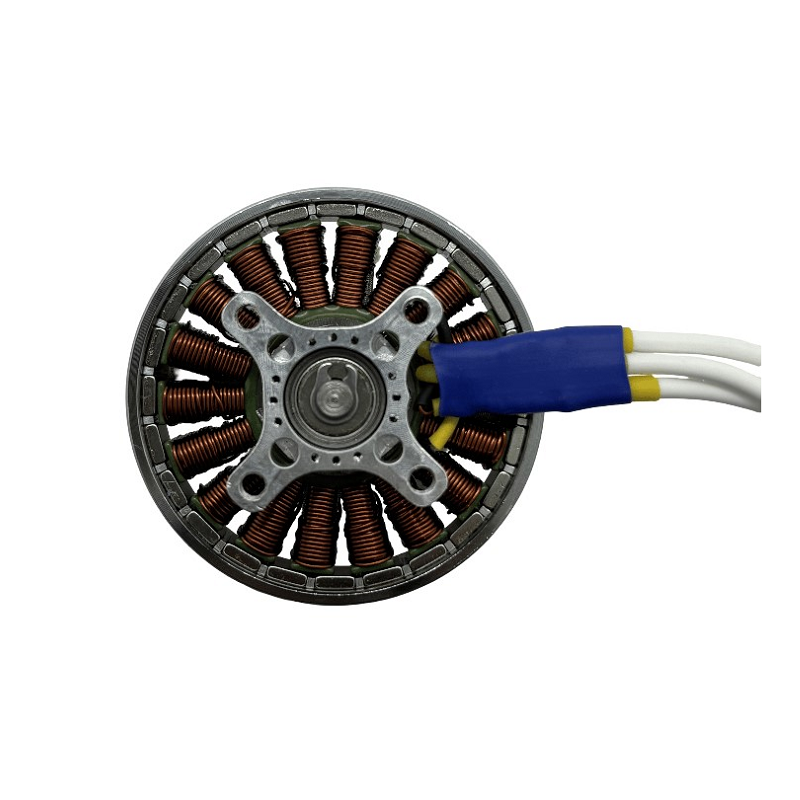

The Flameback 4006 is a high-torque, low-KV brushless motor designed for UAVs requiring a balance of power, efficiency, and flight stability. Its 40mm stator diameter and 6mm height (4006 size) are optimized for generating significant lift while maintaining a minimal weight footprint. The motor’s advanced electromagnetic design, featuring an 18N24P configuration and precision flux rings, minimizes cogging torque and vibration for exceptionally smooth rotational performance.
Engineered for durability, the motor incorporates a finned aluminum housing that acts as a large heatsink, effectively dissipating heat during prolonged high-power operation. The stator is treated for corrosion resistance, and the assembly is sealed against dust and moisture ingress, making it suitable for mapping, delivery, and aerial photography drones operating in varied climates. When paired with a compatible high-current ESC, such as a 45A 6S unit, and large-diameter propellers (14×4.8 or 15×5.5), it forms a reliable propulsion system for professional-grade UAVs.
Additional Information
| Weight | 0.072 kg |
|---|---|
| Dimensions | 4.55 × 3.2 cm |
