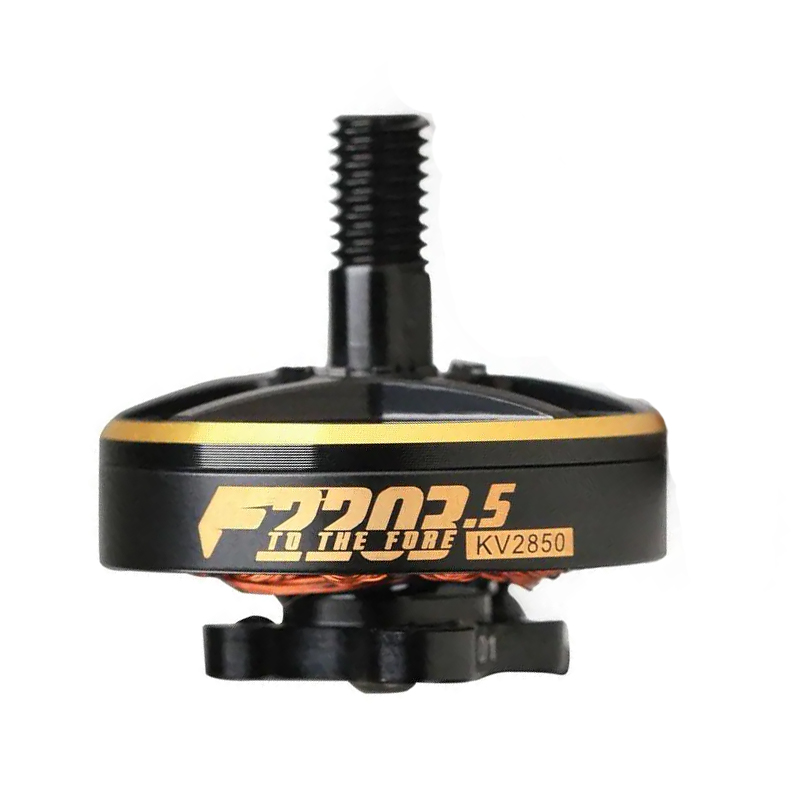

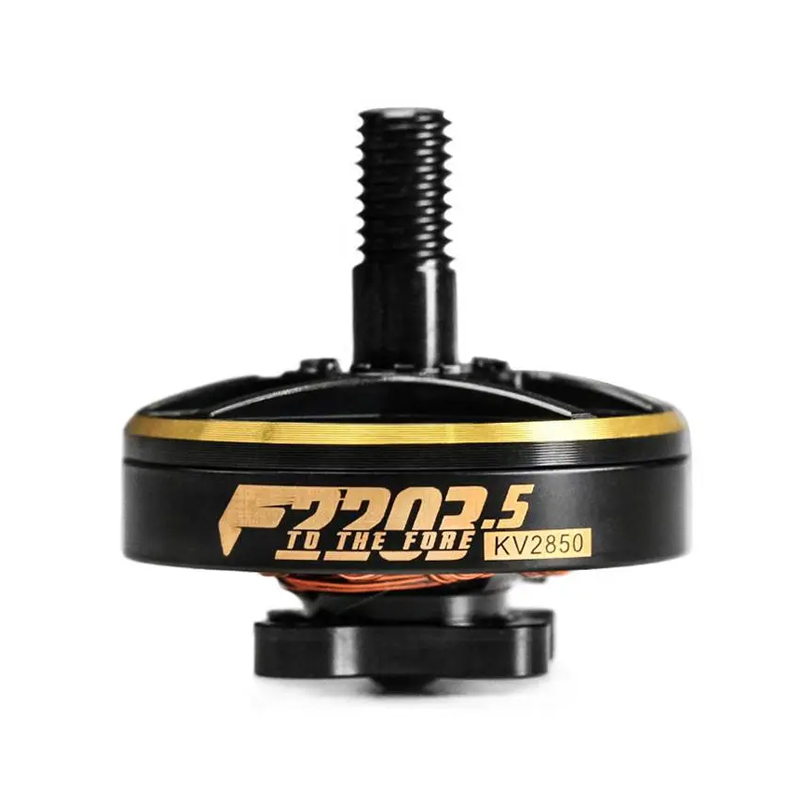

T-Motor F2203.5 KV2850 Brushless Motor
The T-Motor F2203.5 KV2850 is a high-performance brushless motor engineered for 3-inch cinewhoop and racewhoop builds, offering a powerful thrust-to-weight ratio and enhanced cooling for 4S to 6S LiPo operation.
Features
- 2850KV rating optimized for 3-inch cinewhoop and racewhoop performance on 4S-6S LiPo batteries.
- Enhanced cooling structure with a 12N14P stator design for sustained high-power operation and heat dissipation.
- Lightweight 17.4g construction with a 3mm shaft diameter, prioritizing agility and responsive flight control.
- Delivers up to 734W peak power with a 31.4A peak current rating for explosive acceleration.
- Precision-balanced for low vibration, ensuring smooth and stable footage and flight characteristics.
Out of stock
The T-Motor F2203.5 KV2850 brushless motor is engineered for demanding FPV applications where compact size, high thrust, and thermal management are critical. Its 26.8mm diameter and 12N14P stator configuration are optimized for efficiency and power delivery in tight 3-inch frame builds.
Constructed with high-grade materials, the motor features a robust design capable of handling peak currents up to 31.4A, translating to a maximum power output of 734W. The advanced cooling architecture ensures reliable performance during extended high-speed runs, making it a durable choice for both freestyle and racing scenarios.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 3 × 3 × 2 cm |
