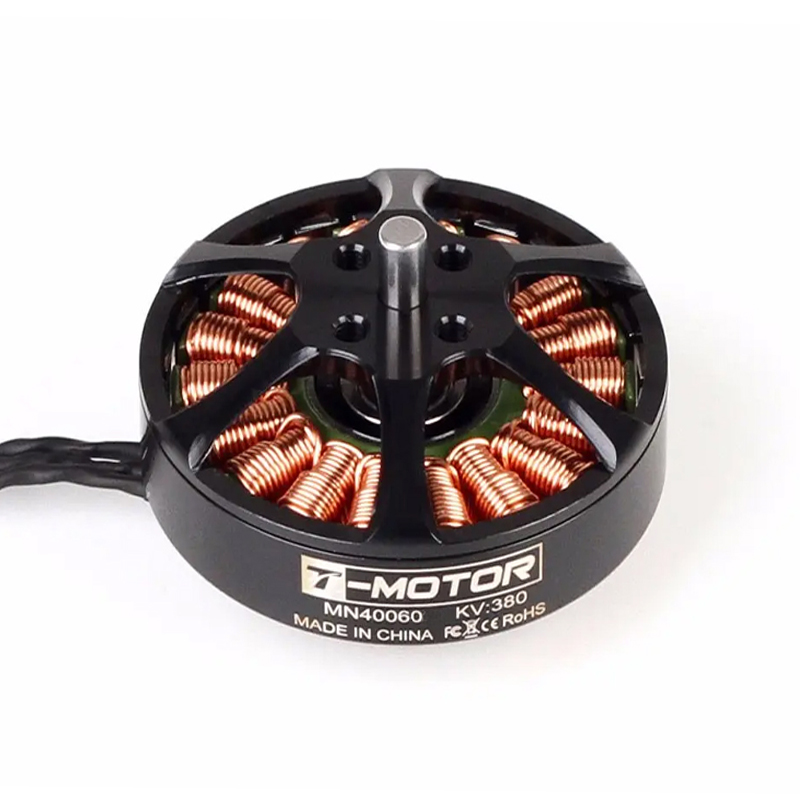

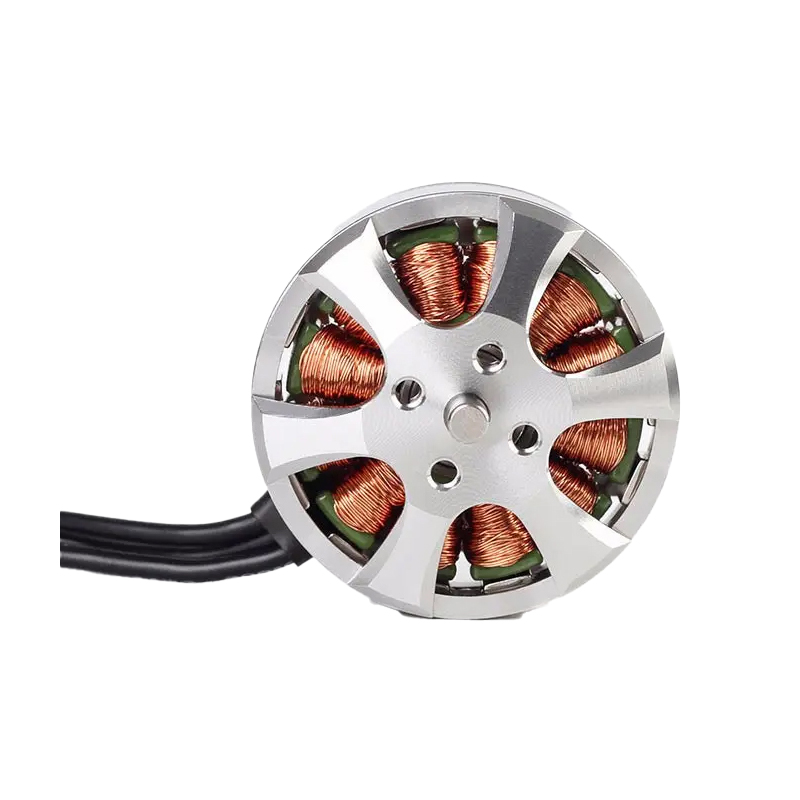

T-Motor Antigravity MN4006 KV380 - 2PCS/SET
The T-Motor Antigravity MN4006 KV380 is a lightweight, high-efficiency brushless motor designed for 4S to 6S LiPo multirotor and VTOL platforms, delivering up to 1.6kg of thrust with a peak efficiency of 92%.
Features
- Ultralight design weighing only 68g including cables for optimized power-to-weight ratio.
- Delivers up to 1.6kg of thrust with a peak efficiency of 92% for extended flight endurance.
- Hand-wound thick copper wire windings ensure maximum conductivity and thermal performance.
- Integrated ventilation and cooling system paired with high-grade EZO bearings for smooth, reliable operation.
- 18N24P pole configuration provides smooth torque and precise control for multirotor and VTOL applications.
Out of stock
The T-Motor Antigravity MN4006 KV380 is engineered for aerial platforms where weight savings and electrical efficiency are paramount. Its ultrathin stator and ultralight construction minimize inertial mass, allowing for rapid throttle response and reduced energy consumption during aggressive maneuvers or long-duration flights.
Advanced thermal management is achieved through a combination of hand-wound, high-purity copper windings and a unique integrated ventilation system that promotes consistent heat dissipation. This design, supported by precision EZO bearings, ensures the motor maintains stable performance and high reliability across a wide range of operational loads and ambient conditions.
Additional Information
| Weight | 0.11 kg |
|---|---|
| Dimensions | 4 × 4 × 3 cm |
