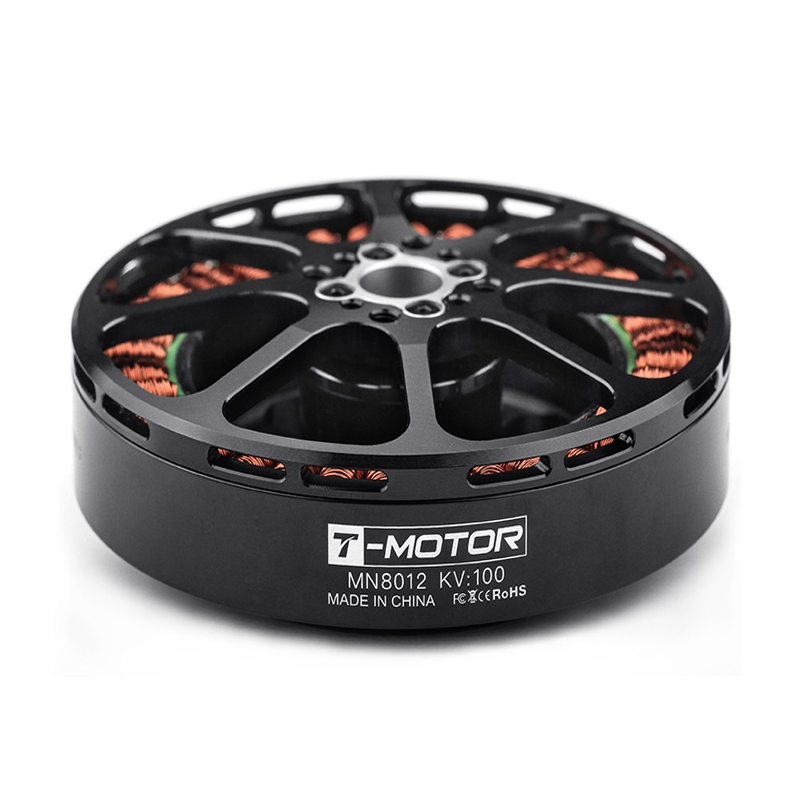

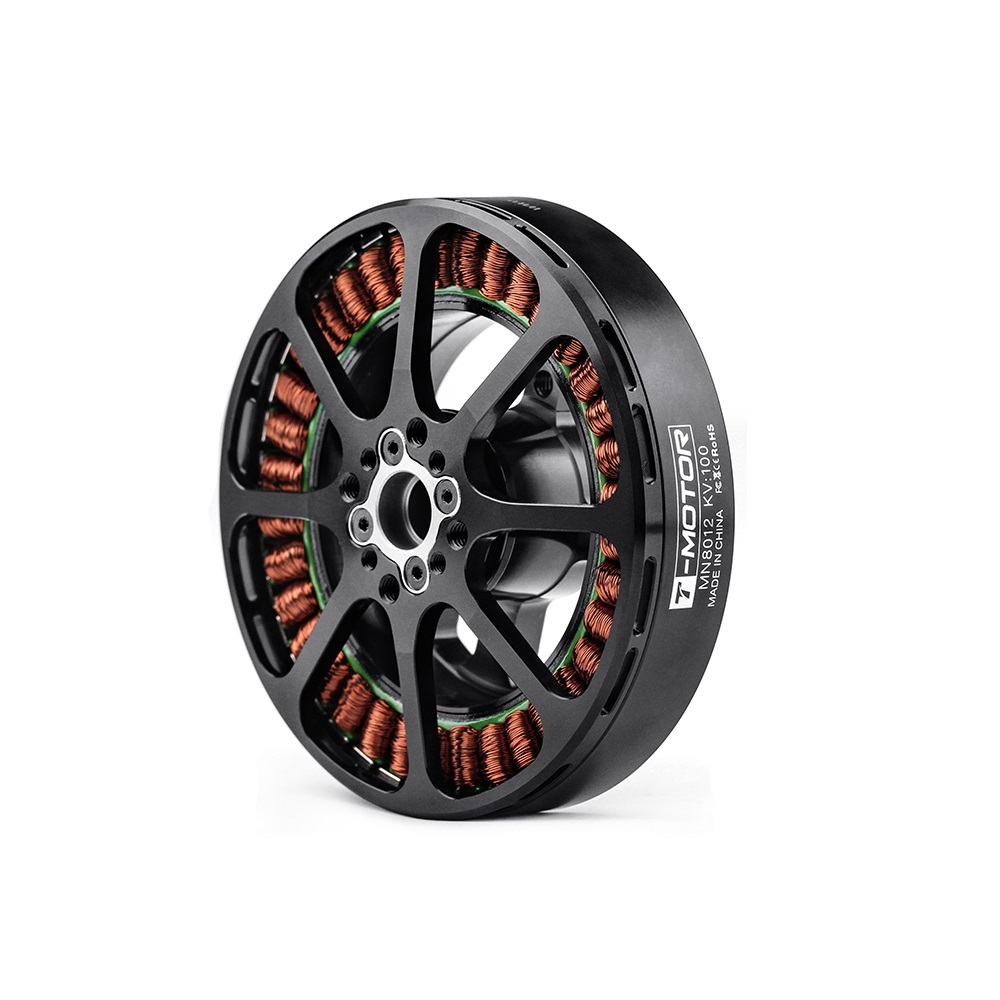

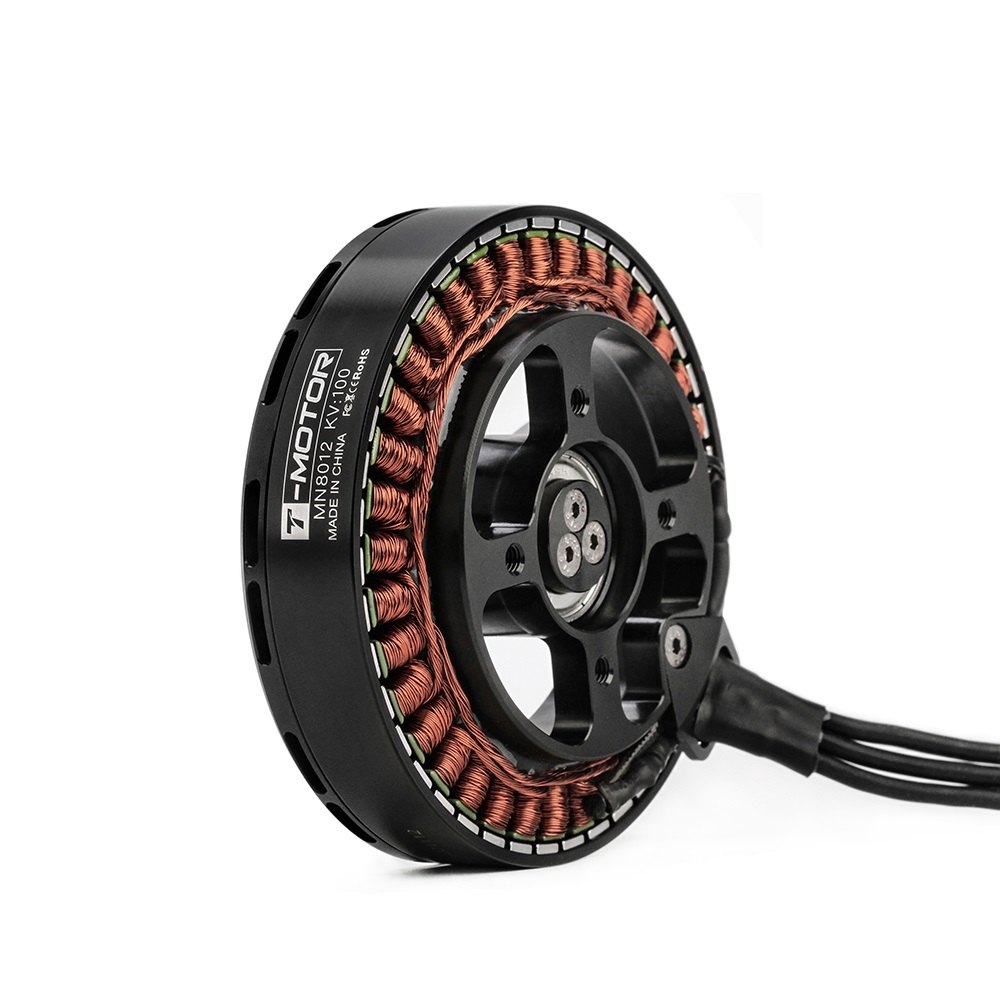

T-Motor Antigravity MN8012 KV100 Brushless Motor
The T-Motor Antigravity MN8012 KV100 is a high-power, ultra-lightweight brushless motor engineered for heavy-lift and industrial drone applications, featuring a 12S voltage rating and a 36N42P stator configuration for exceptional torque and efficiency.
Features
- Ultra-lightweight high-efficiency design with a power-to-weight ratio of 34.
- Delivers a maximum thrust of 11.8kg, optimized for heavy-lift platforms.
- Rated for 12S LiPo voltage input, supporting high-power propulsion systems.
- Features a 36N42P stator configuration and 16AWG high-temperature silicone wires.
- Constructed with anti-rust stator coatings and imported 6901ZZ bearings for durability.
Out of stock
The T-Motor Antigravity MN8012 KV100 brushless motor is engineered for demanding UAV applications requiring high thrust and precise control. Its 36N42P stator configuration and low KV rating of 100 RPM/V are optimized for generating immense torque on large propellers, making it ideal for heavy-lift cinematography, agricultural spraying, and industrial inspection drones operating on 12S battery packs.
Built with a focus on thermal management and structural integrity, the motor features stator windings insulated to withstand 220°C, protected by high-temperature-resistant coatings. The precision dynamic balancing of the rotor to a standard of 15mg ensures smooth, vibration-free operation, which is critical for flight stability and the longevity of onboard electronics. The IP35 rating provides a degree of protection against solid foreign objects and water ingress.
Additional Information
| Weight | 0.6 kg |
|---|---|
| Dimensions | 15 × 10 × 6 cm |
