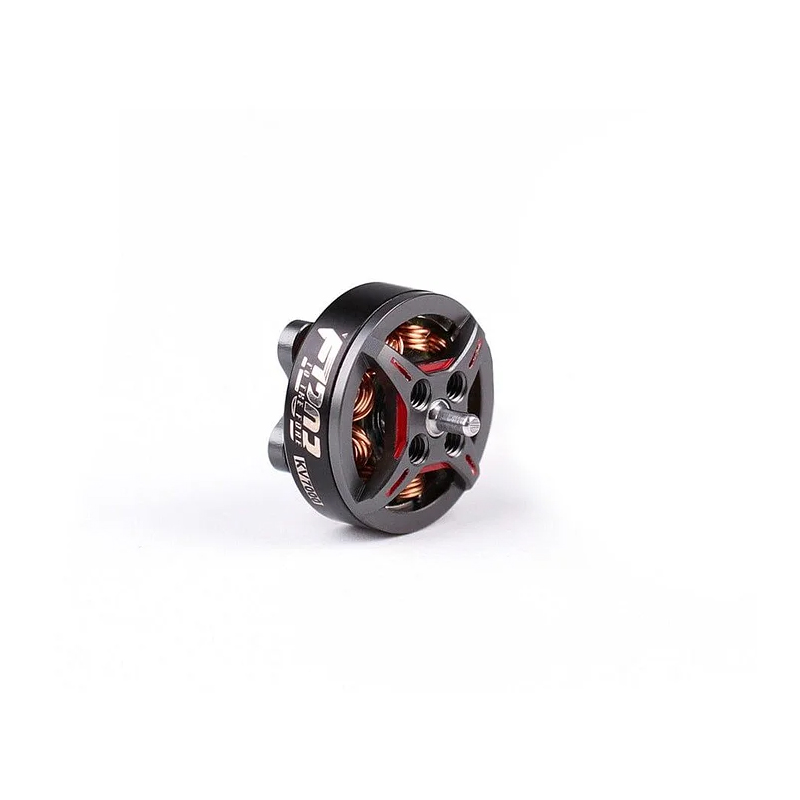

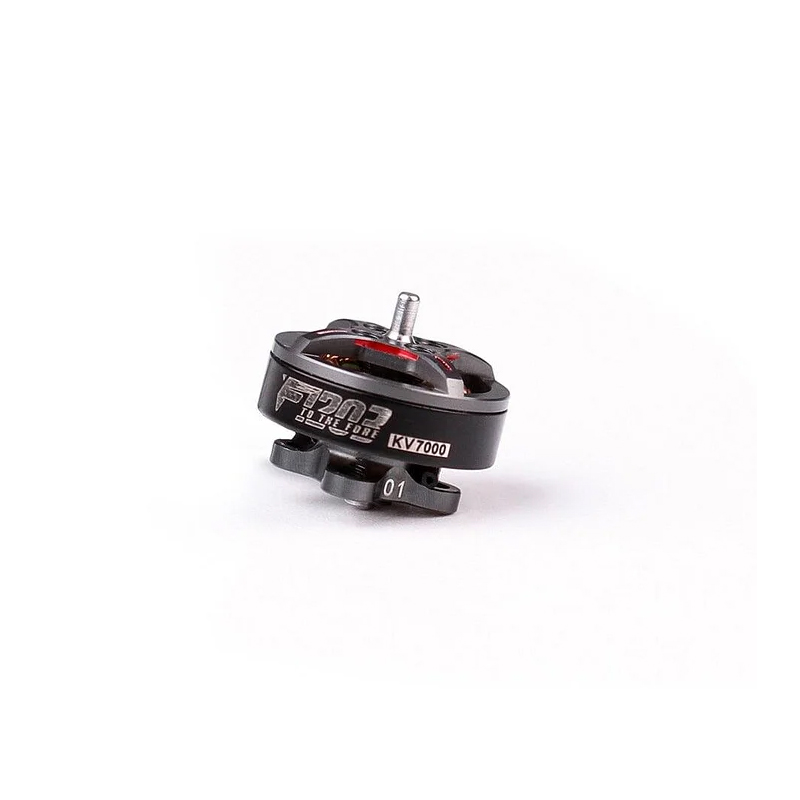

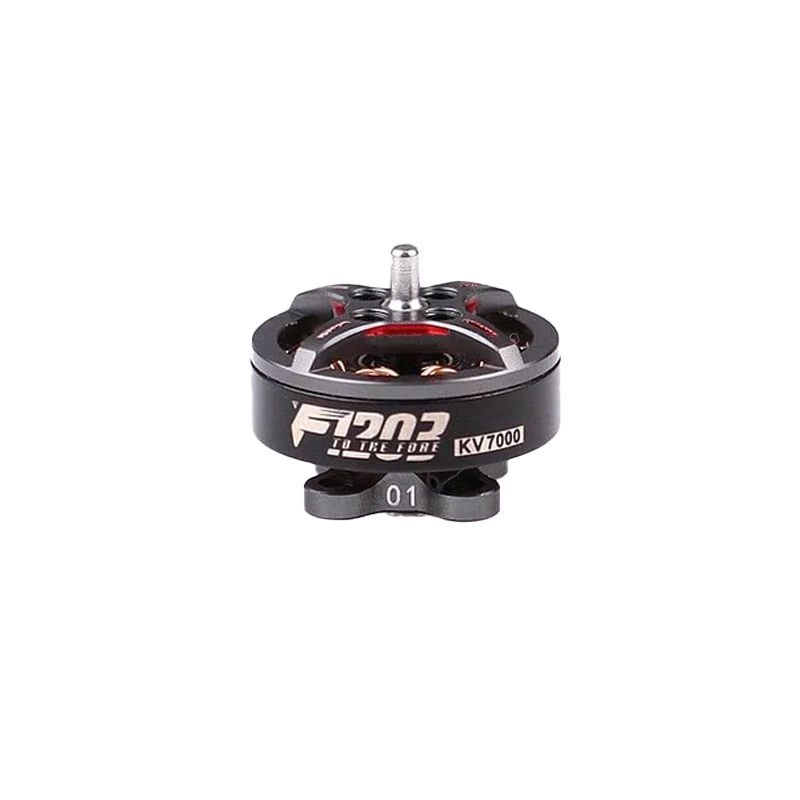

T-Motor F1203 7000KV Brushless Motor - 2-3S Ultralight FPV
The T-Motor F1203 is a 7000KV brushless motor engineered for 2-3S ultralight FPV racing and freestyle drones. Featuring a 1.5mm shaft and a 9x9mm mounting pattern, it delivers high-RPM performance optimized for 2-3 inch propellers and sub-140g quadcopter builds.
Features
- High-speed 7000KV winding optimized for 2-3S LiPo voltage (7.4V-11.1V).
- Ultralight 4.45g (excluding wire) construction for maximum thrust-to-weight ratio.
- 1.5mm shaft diameter and 9x9mm (M1.4) mounting pattern for broad frame compatibility.
- 9N12P stator configuration with high-efficiency arc magnets for smooth, responsive throttle control.
- Peak power of 192W and a 60-second burst current rating of 10.85A.
Out of stock
The T-Motor F1203 7000KV motor is a precision component designed for the demanding environment of micro and ultralight FPV drones. Its compact Φ15.5mm x 14.05mm form factor houses a robust 9N12P stator and magnet configuration, engineered to convert electrical energy from 2-3S LiPo packs into exceptional rotational speed and instantaneous torque. This makes it ideal for rapid throttle punches and precise maneuvering in tight racing circuits or acrobatic freestyle sessions.
Constructed with a focus on durability and thermal management, the motor’s internal design minimizes resistance (198 mΩ) and idle current (0.64A @ 10V) to reduce operational heat buildup. The integrated 1.5mm hardened steel shaft and secure bell housing ensure reliable performance even under the high vibrational loads typical of aggressive flying. It is the propulsion cornerstone for builders targeting sub-140g all-up weights without sacrificing power.
Additional Information
| Weight | 0.00525 kg |
|---|---|
| Dimensions | 1.55 × 1.55 × 1.405 cm |
