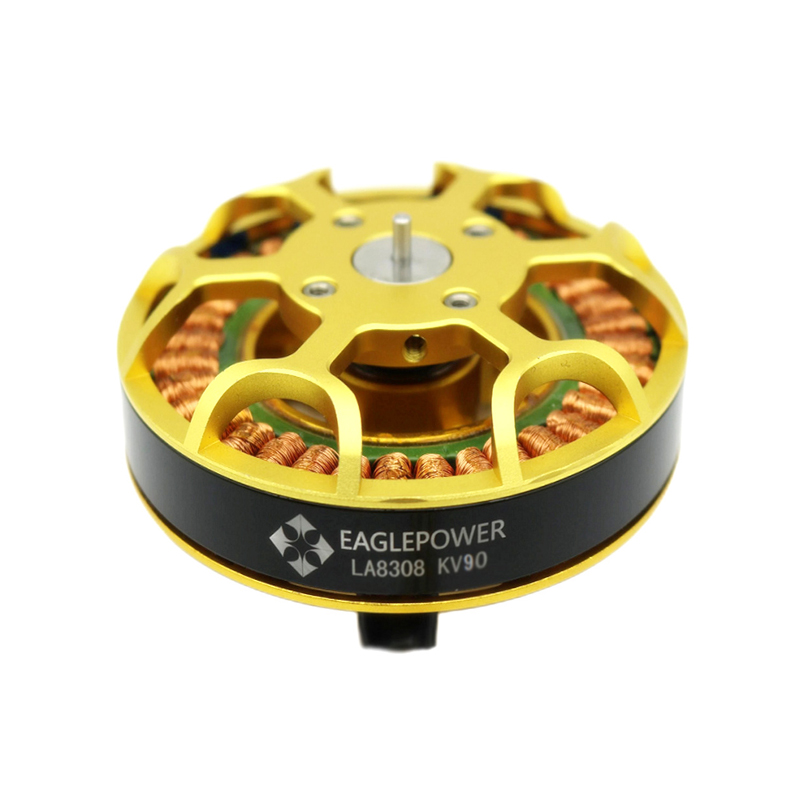

Eaglepower LA 8308 KV90 Brushless Motor
The Eaglepower LA 8308 KV90 is a high-power, low-KV brushless motor designed for heavy-lift and large-scale multirotor applications, compatible with 6S to 12S LiPo battery systems.
Features
- 8308 stator size with a low 90 KV rating for high-torque, low-RPM operation.
- Handles up to 22A continuous current and 900W continuous power output.
- Constructed with a durable metal housing and internal components for robust performance.
- Designed for compatibility with 6S to 12S LiPo battery packs (22.2V to 50.4V).
- Features a low internal resistance of 0.186Ω for efficient power delivery and reduced heat generation.
Out of stock
The Eaglepower LA 8308 KV90 motor is engineered for demanding aerial platforms requiring substantial thrust and torque. Its large 8308 stator and exceptionally low KV rating of 90 make it ideal for driving large-diameter propellers on heavy-lift drones, agricultural sprayer UAVs, and custom multirotor builds. The motor’s design prioritizes thermal management and mechanical durability under continuous high-load conditions.
With a maximum continuous current rating of 22A and power handling of 900W, this motor is built to operate reliably on high-voltage battery systems from 6S to 12S. The low internal resistance contributes to overall system efficiency, translating battery energy more effectively into rotational force while minimizing losses. The all-metal construction ensures the motor can withstand the vibrations and stresses inherent in professional-grade UAV operations.
Additional Information
| Weight | 0.59 kg |
|---|---|
| Dimensions | 18 × 12 × 6 cm |
