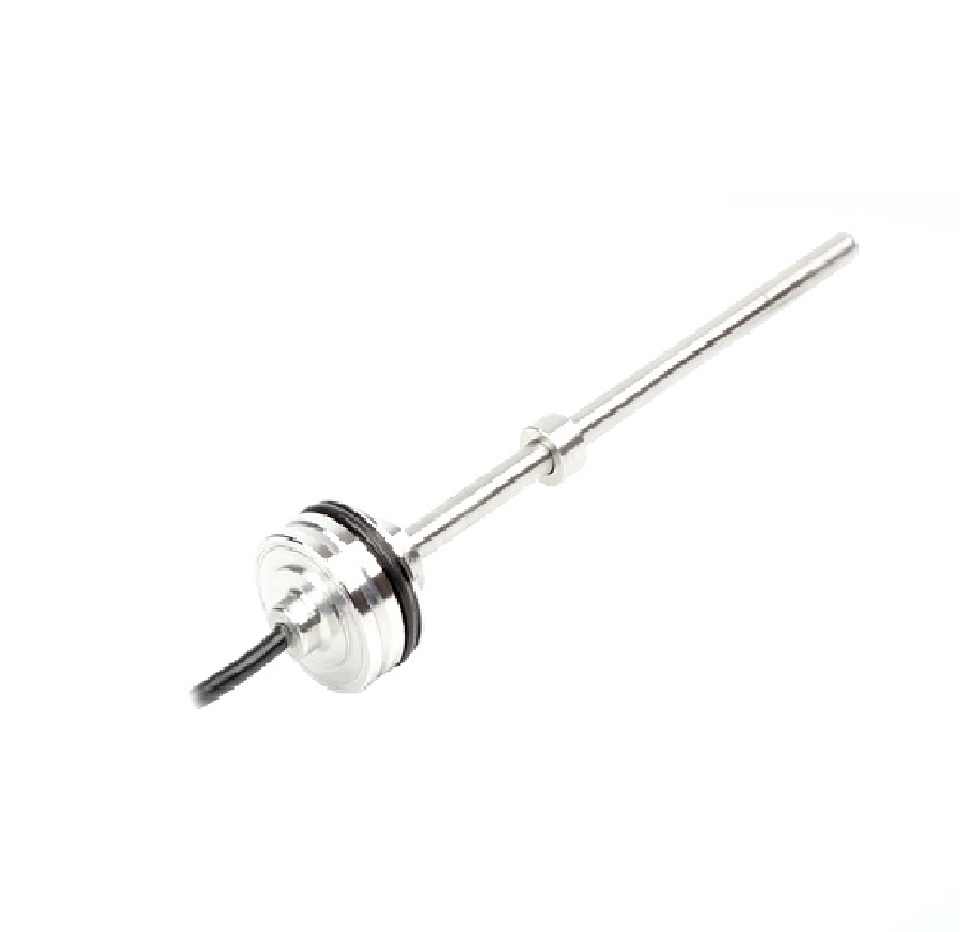

FirstRate FST400-3000 Magnetostrictive Displacement Sensor, Range 950-1000mm, 4-20mA Output, 24VDC, Built-In Cylinder Rod Type
The FirstRate FST400-3000 is a high-precision, non-contact magnetostrictive displacement sensor with a 950-1000mm range and 4-20mA analog output. Designed for direct integration into hydraulic cylinders and industrial machinery, it operates on a 24VDC supply and provides absolute position feedback for PLCs and control systems.
Features
- High-precision magnetostrictive sensing with ±0.1%FS accuracy.
- Non-contact, wear-free design ensures long-term reliability.
- 4-20mA two-wire analog output for robust industrial communication.
- Built-in cylinder rod type (M18) for direct hydraulic cylinder integration.
- IP67-rated housing with oil and dirt resistance for harsh environments.
Out of stock
The FST400-3000 utilizes a magnetostrictive sensing principle, where a current pulse interacts with the magnetic field of a moving ring magnet to determine absolute position with high resolution. This non-contact method eliminates mechanical wear, providing exceptional long-term stability and repeatability for critical displacement feedback.
Engineered for industrial durability, the sensor features an IP67-protected, oil-resistant housing capable of operating in temperatures from -40°C to +85°C. Its built-in cylinder rod form factor (M18 thread) allows for seamless installation directly into servo hydraulic cylinders, making it ideal for closed-loop position control systems.
Additional Information
| Weight | 1.45 kg |
|---|---|
| Dimensions | 122 × 8 × 8 cm |
