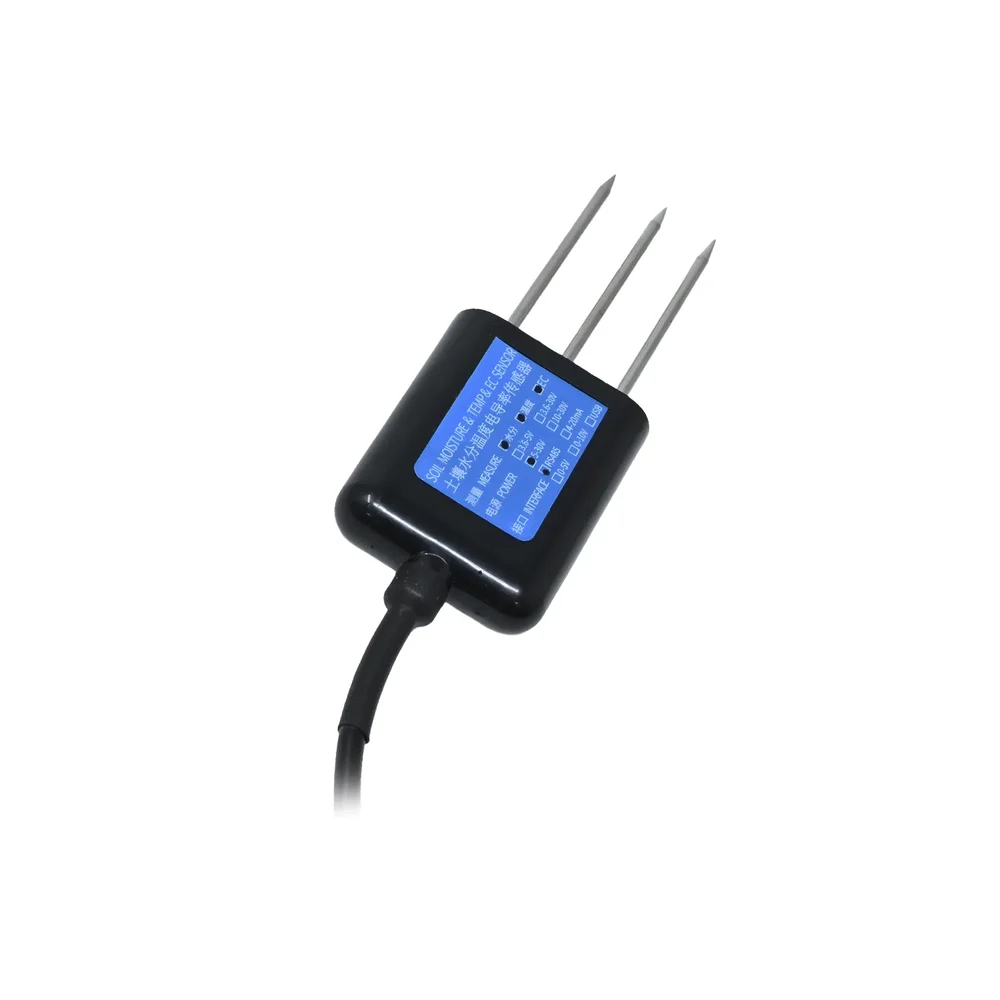

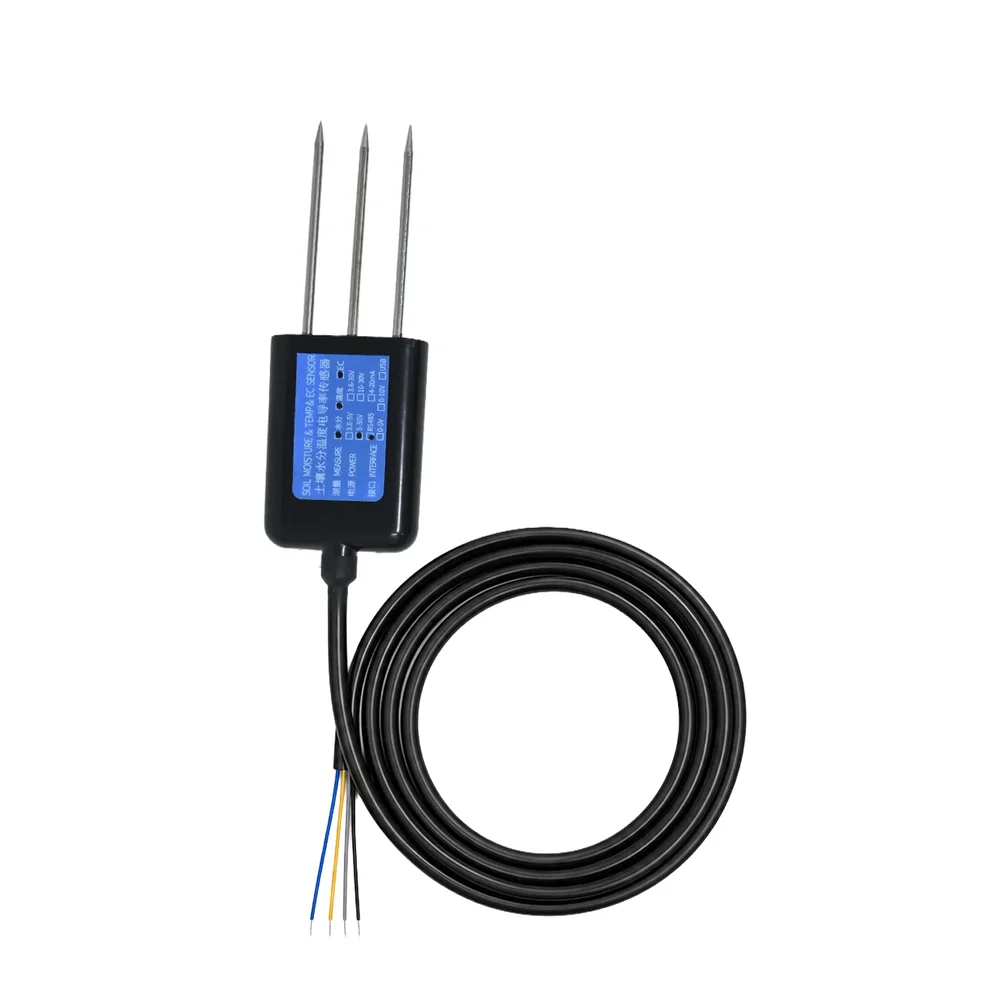

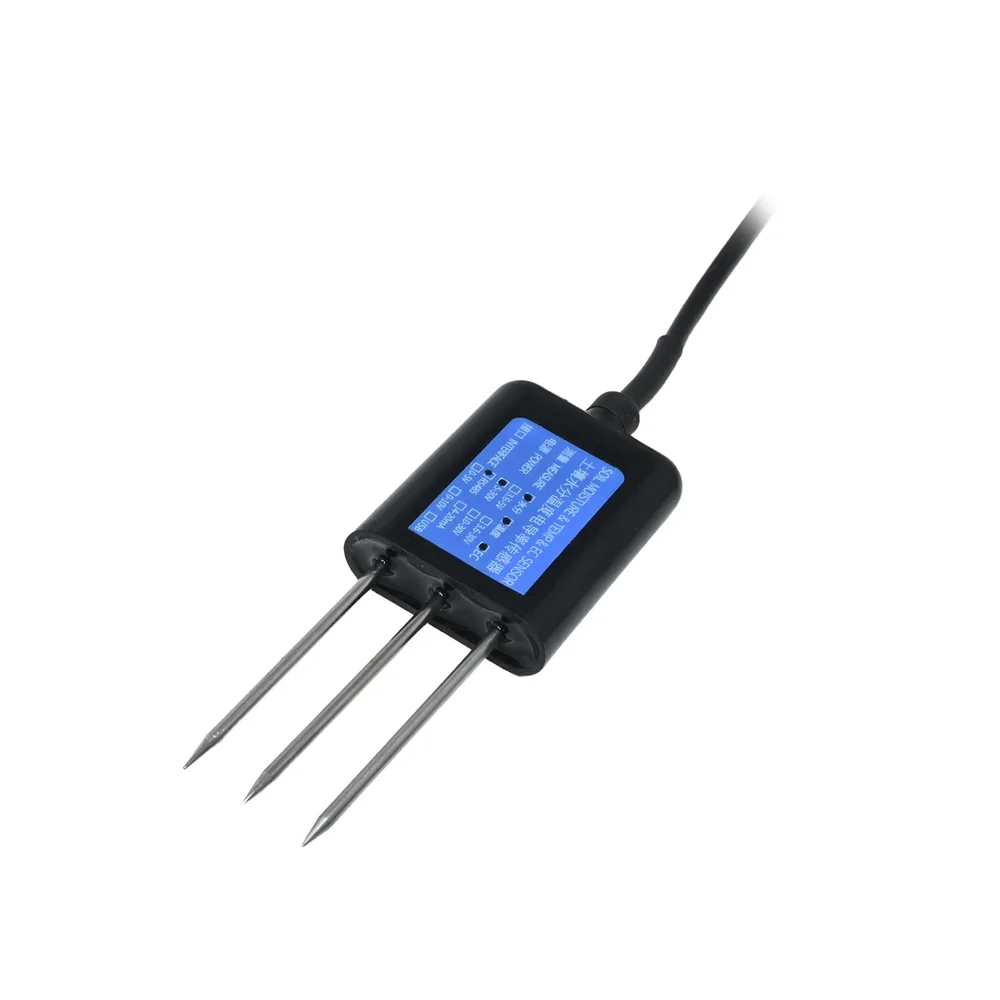

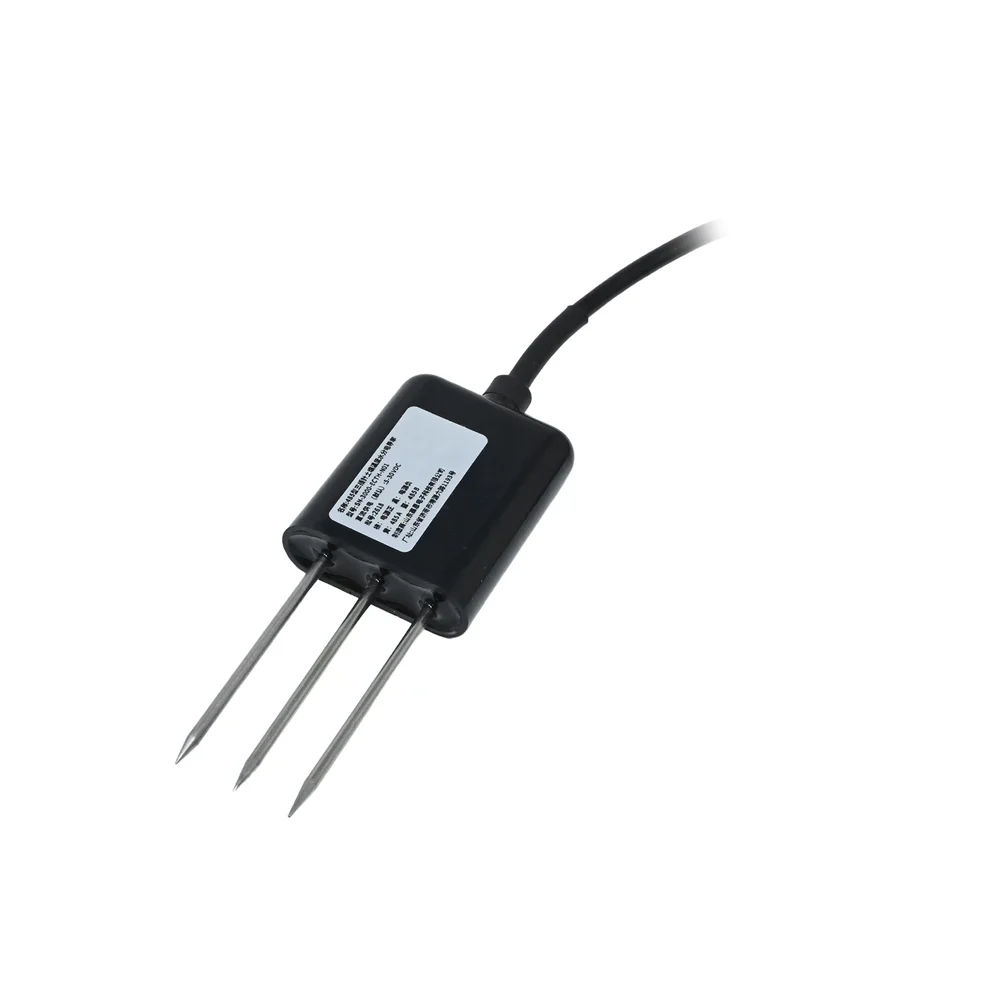

SN-3000-TR-ECTH-N01 Soil Temperature, Humidity & Conductivity Sensor - RS485, 4-20mA, 0-10V Output, IP68 Waterproof
The SN-3000-TR-ECTH-N01 is a professional-grade soil sensor providing simultaneous measurement of moisture, temperature, and electrical conductivity (EC). Featuring an IP68 waterproof stainless steel probe and supporting RS485 (Modbus-RTU), 4-20mA, and 0-10V outputs, it is designed for seamless integration with industrial PLCs, data loggers, and agricultural control systems.
Features
- Triple-Parameter Sensing: Measures soil moisture (0–100%), temperature (–40 to 80°C), and electrical conductivity (EC).
- Multi-Interface Output: Configurable for RS485 Modbus-RTU, 4-20mA current loop, or 0-10V analog voltage signals.
- Rugged IP68 Construction: 316L stainless steel probe ensures long-term durability in harsh, wet soil environments.
- High Measurement Accuracy: ±2% for soil moisture and ±0.5°C for temperature with a fast <3 second response.
- Wide Supply Voltage: Operates from 4.5 to 30V DC, suitable for both field and industrial power systems.
Out of stock
The SN-3000-TR-ECTH-N01 employs high-frequency dielectric constant measurement for soil moisture and integrated temperature and conductivity sensing elements. This principle ensures stable, real-time data unaffected by soil salinity variations, providing reliable insights for precision agriculture and environmental monitoring.
Engineered for harsh field conditions, its 316L stainless steel probe body and IP68 rating guarantee corrosion resistance and full waterproofing. The sensor outputs calibrated digital (Modbus) or analog signals, enabling direct connection to SCADA systems, IoT gateways, and automated irrigation controllers without additional signal conditioning.
Additional Information
| Weight | 0.234 kg |
|---|---|
| Dimensions | 12 × 4 cm |
