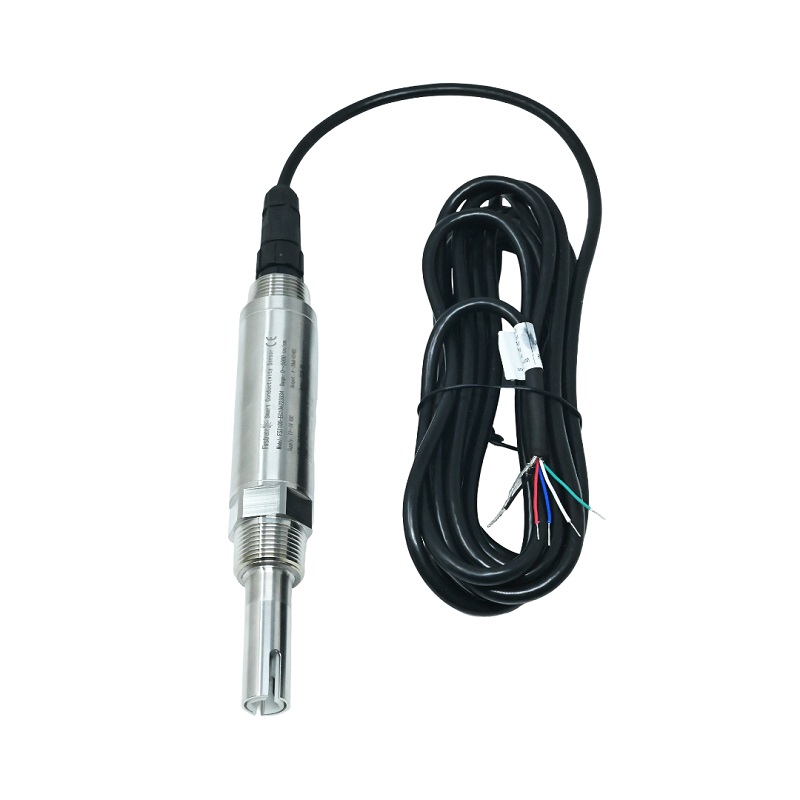

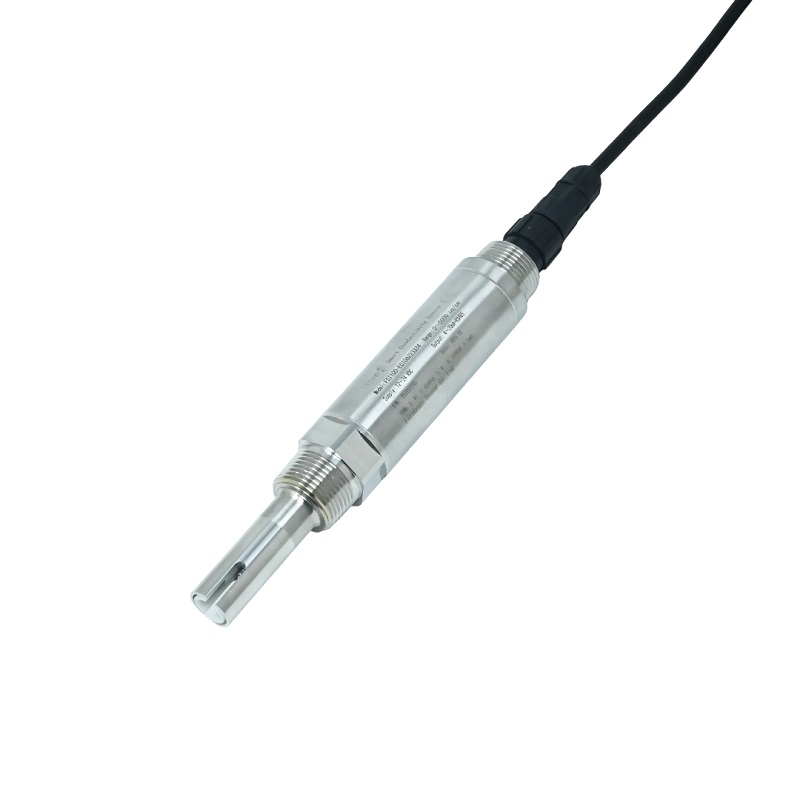

FirstRate FST100-EC106 Electrical Conductivity Sensor, Range: 0-5000uS/cm, RS485 Modbus, 4-20mA, Stainless Steel, IP68, 5m Cable
The FirstRate FST100-EC106 is a high-precision electrical conductivity sensor with dual RS485 Modbus RTU and 4-20mA analog outputs, designed for seamless integration into industrial PLCs, DCS, and data acquisition systems. It provides accurate online measurement from 0 to 5000 µS/cm with automatic temperature compensation via an integrated Pt1000 sensor.
Features
- Dual Output: RS485 Modbus RTU and 4-20mA analog signal for flexible industrial integration.
- High Accuracy: ±1.5% FS conductivity measurement with ±0.3°C temperature compensation.
- Robust Construction: IP68-rated stainless steel housing with 3/4″ NPT pressure port for submerged or inline mounting.
- Wide Compatibility: 12-24V DC power supply and 5-meter direct lead cable for versatile installation.
- Fast & Stable Response: Utilizes dual high-impedance differential amplifiers for reliable, quick readings.
Out of stock
The FST100-EC106 sensor employs a high-precision electrode cell to measure the electrical conductivity of a solution, which correlates directly with its ion concentration. An integrated Pt1000 temperature sensor provides automatic compensation, ensuring readings remain accurate across the 0 to 65°C operating range. The sensor’s stainless steel body and IP68 rating guarantee long-term reliability in demanding environments, including fully submerged applications or pressurized pipelines.
Signal conditioning is handled internally, providing both a digital RS485 interface using the Modbus RTU protocol for networked systems and a standard 4-20mA analog output for direct connection to controllers and meters. This dual-output design offers maximum flexibility for water quality monitoring, process control, and environmental data logging.
Additional Information
| Weight | 0.555 kg |
|---|---|
| Dimensions | 33 × 15 × 10 cm |
