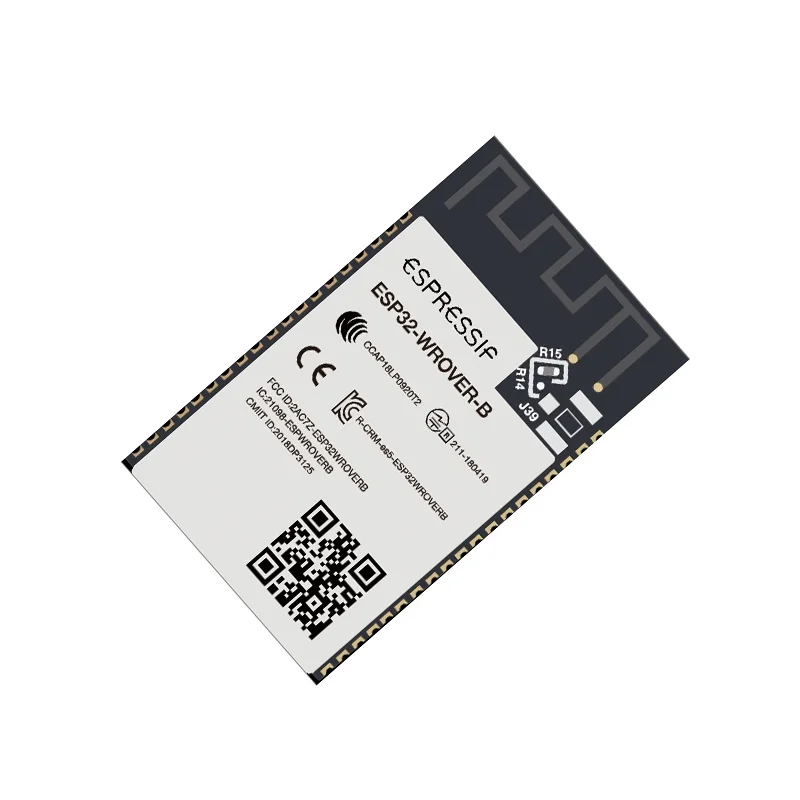

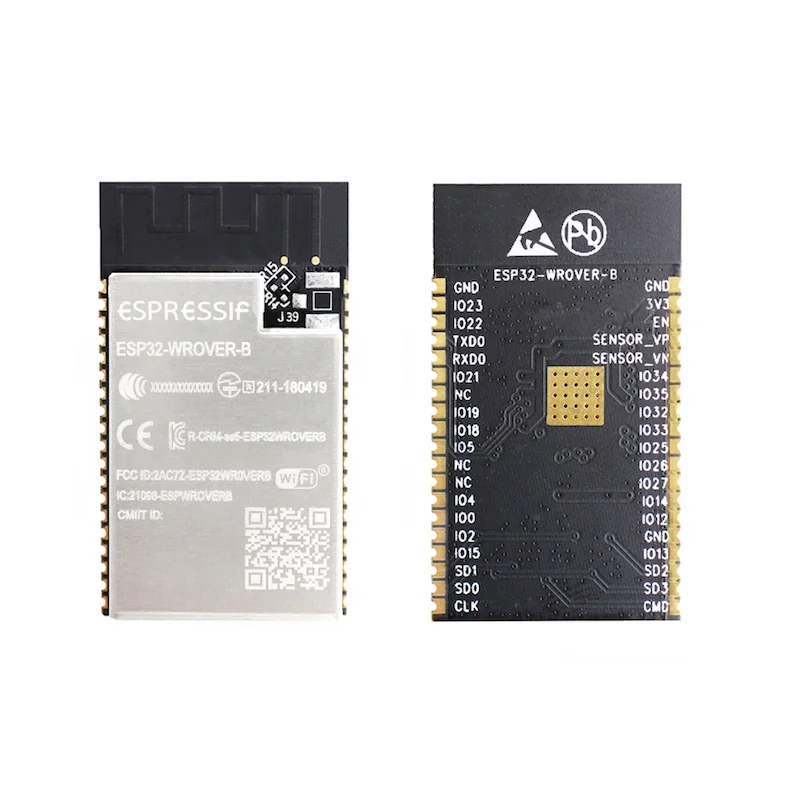

ESP32-WROVER-B Module 16MB Flash 128MB PSRAM WiFi Bluetooth

The 128MB of external Pseudo Static RAM (PSRAM) provides a large, fast memory space for data-intensive tasks where the internal SRAM is insufficient. It is essential for buffering audio streams, storing image frames for computer vision, handling large network packets, or managing complex data structures in applications like speech recognition or high-resolution display buffers, enabling more advanced firmware without external memory chips.

Supply the module with 3.3V (3.0V to 3.6V range) via the VCC and GND pins, ensuring adequate current capability for peak RF transmission. Programming is done via the serial UART interface (TX/RX pins) using a USB-to-serial adapter. You can use the Arduino IDE with the ESP32 board package, Espressif's official ESP-IDF framework, or PlatformIO. The GPIO0 pin must be pulled low during reset to enter the bootloader mode for flashing new firmware.

The standard ESP32-WROVER-B variant comes with an integrated PCB antenna for compact designs. For applications requiring extended range or specific antenna placement, you would need the ESP32-WROVER-IB variant, which features an IPEX (U.FL) connector for connecting an external 2.4GHz antenna. Impedance matching is critical; use a 50-ohm antenna designed for 2.4GHz Wi-Fi/Bluetooth frequencies to maintain optimal RF performance and regulatory compliance.

The module supports both Bluetooth Classic (BR/EDR) for higher-throughput, continuous data connections like A2DP audio streaming and Bluetooth Low Energy (BLE) for intermittent, low-power communication with peripherals like sensors or beacons. Classic is ideal for audio profiles and sustained data transfer, while BLE is optimized for minimal power consumption in applications like sensor telemetry, where devices advertise data periodically and maintain very low average current draw.
