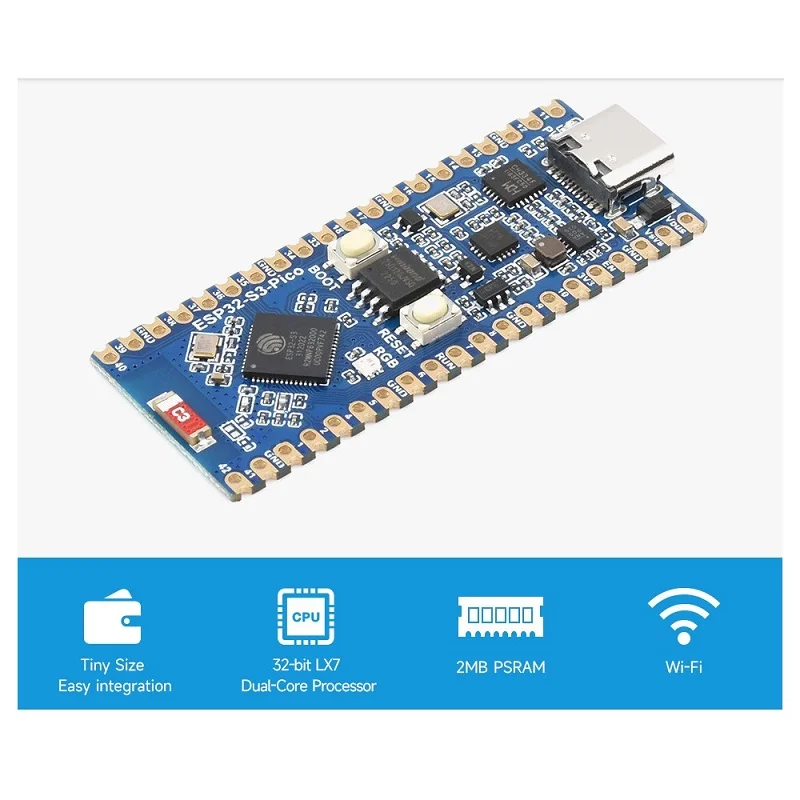

Waveshare ESP32-S3 Microcontroller Development Board

First, install the ESP32 board support via the Arduino Boards Manager using the Espressif repository URL. Select 'ESP32S3 Dev Module' as your target. Connect the board via the USB Type-C port; the onboard CH343 chip should create a serial COM port automatically. You can then upload sketches directly. Ensure you have the correct USB drivers installed if the COM port is not detected. The board is fully compatible with standard Arduino libraries for Wi-Fi and BLE.

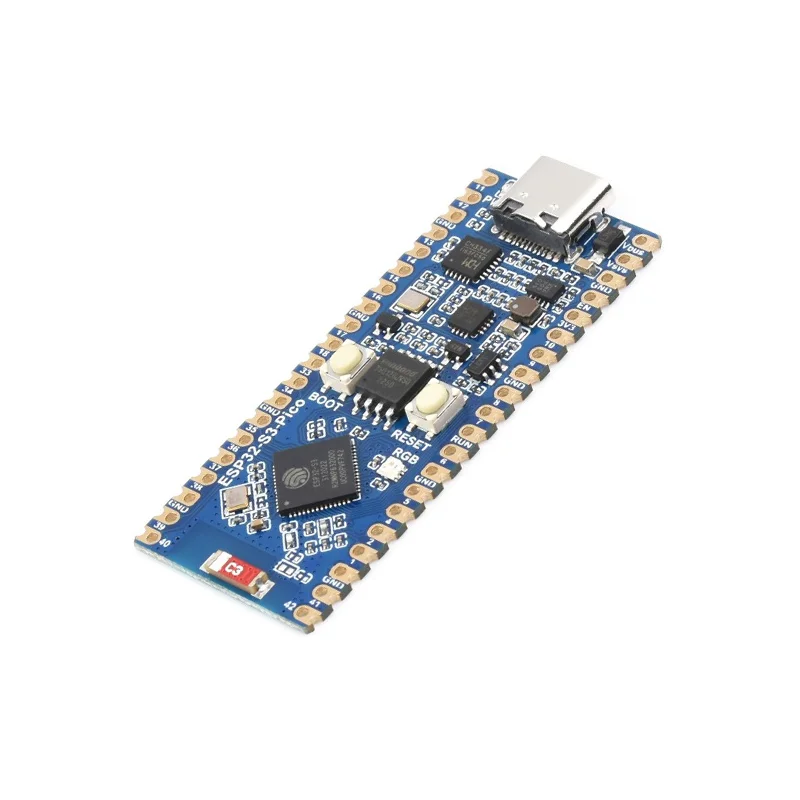

The castellated (half-hole) edges allow you to solder the module directly onto a custom PCB or carrier board, integrating it as a system-on-module (SoM) in a final product design. This bypasses the need for headers and saves vertical space. When soldering, use a reflow oven or careful hand-soldering with flux to ensure all pads connect properly. This feature makes the board suitable for transitioning from a breadboard prototype to a compact, manufactured device.

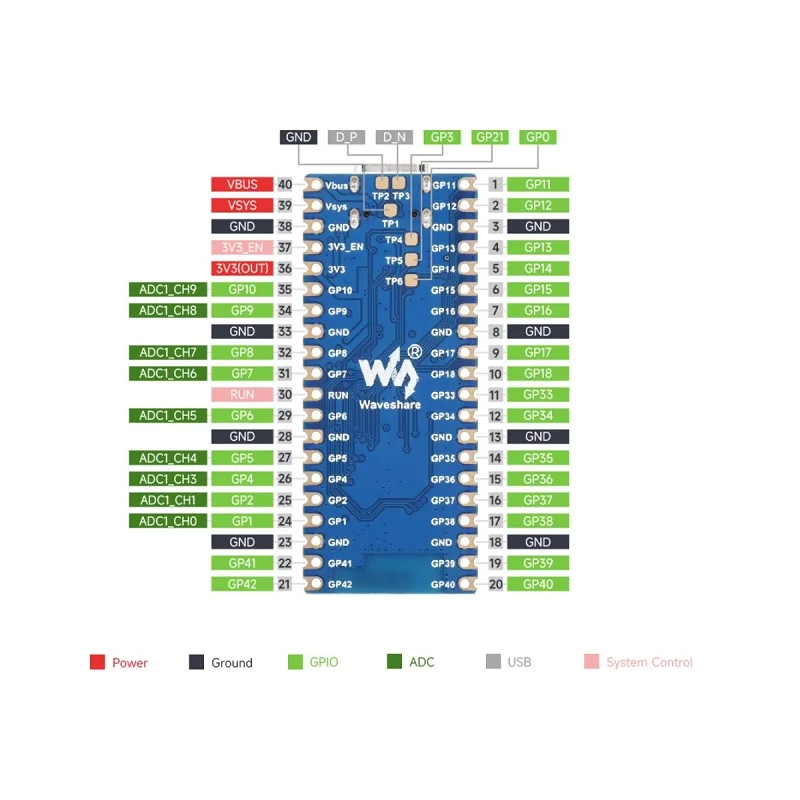

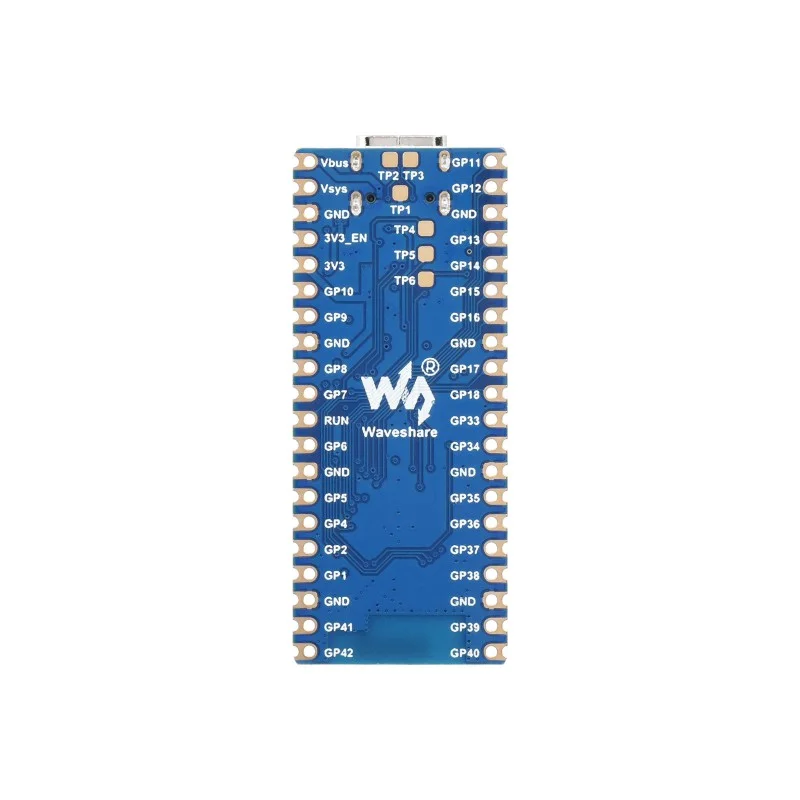

Yes, the board supports an 8-bit to 16-bit DVP (Digital Video Port) parallel camera interface, compatible with modules like OV2640. For displays, it offers 8-bit to 16-bit parallel RGB, I8080, and MOTO6800 LCD interfaces. You will need to connect the camera or display's data and control lines to the corresponding GPIO pins as defined in the board's pinout diagram. Libraries such as ESP32-CAM or TFT_eSPI can be used with the ESP-IDF or Arduino framework to drive these peripherals.

The board is powered via the USB Type-C port at 5V. The onboard MP28164 DC-DC converter regulates this to the required core voltages. Current draw varies significantly with CPU load and radio activity. In active mode with Wi-Fi connected, expect 80-150mA. Using deep sleep modes with the RTC and ULP co-processor active can reduce consumption to microamps, enabling long-term battery operation. Always measure current in your specific application to size batteries appropriately.
