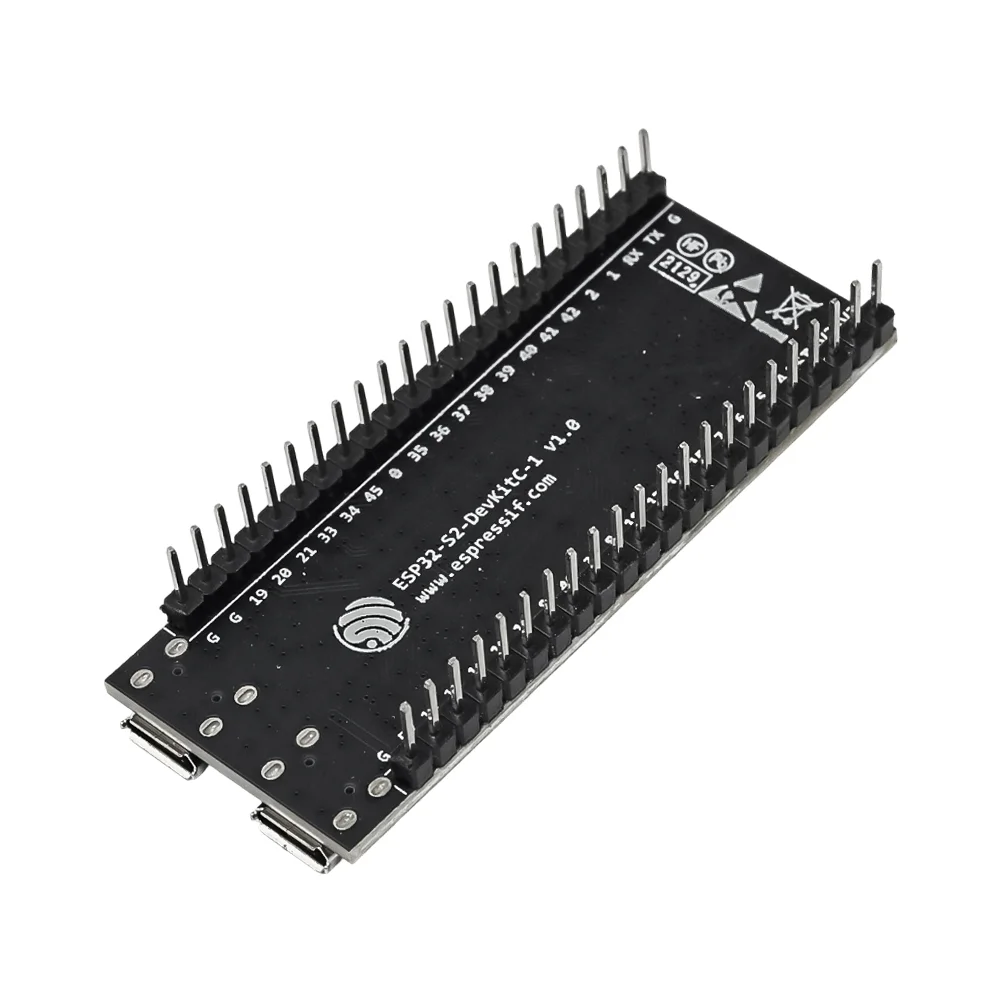

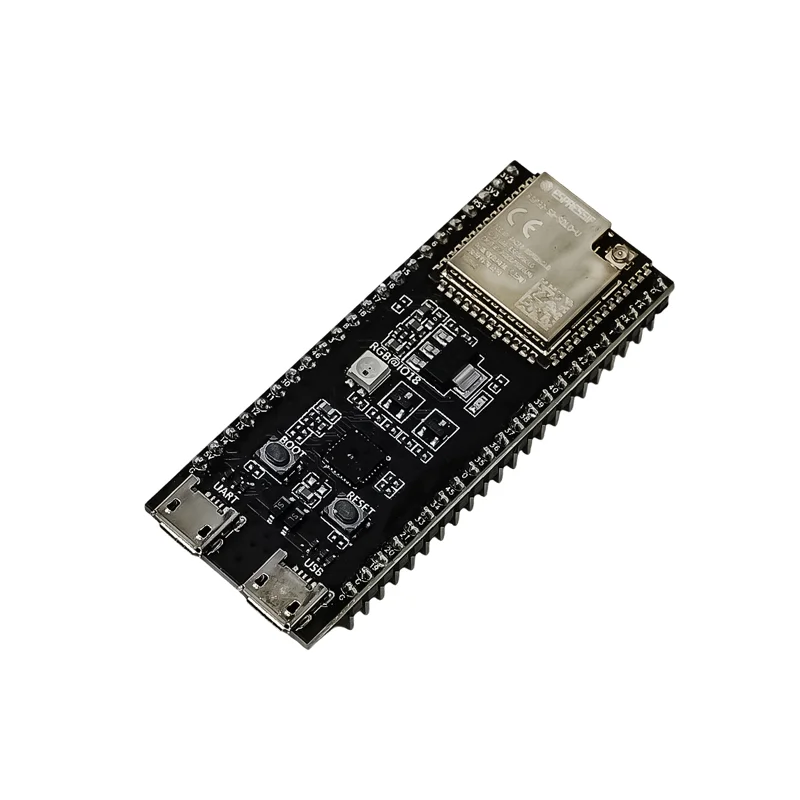

Espressif ESP32-S2-DevKitC-1U-N8R2 Wi-Fi Development Board

The board is primarily supported by Espressif's official ESP-IDF framework, offering full access to chip features. It is also compatible with the community-maintained Arduino core for ESP32-S2 and can run MicroPython, providing flexibility for developers of all skill levels. You can program it via the Arduino IDE or PlatformIO using the appropriate board definitions.

Connect the board's USB-C port to your computer. The integrated USB-to-serial converter provides both power and a communication channel. No external programmers are needed. For deployment, you can power it via the 3.3V pin using a regulated external supply, ensuring you observe the board's maximum current specifications for connected peripherals.

The 2MB of pseudo-static RAM (PSRAM) is used for dynamic memory allocation, buffering network data, handling graphics, or managing large data structures in applications like web servers or audio processing. It supplements the internal SRAM of the ESP32-S2, preventing memory fragmentation and enabling more complex firmware without external memory chips.

Yes, the ESP32-S2 chip features advanced low-power modes, including deep sleep with current draw in the microamp range. You can design your firmware to wake periodically, transmit sensor data via Wi-Fi, and return to sleep. Ensure you use a suitable 3.3V regulator for your battery and manage the power consumption of any connected peripherals.
