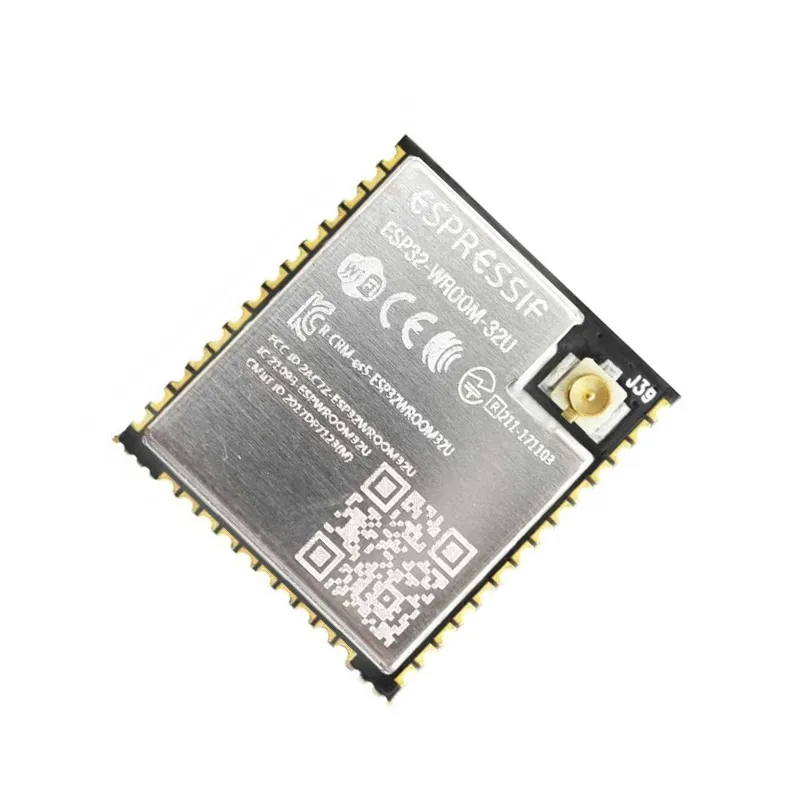

ESP32-WROOM-32U 8M 64Mbit WiFi Bluetooth Module w/ U.FL Connector

The primary difference is the integrated antenna connector. The ESP32-WROOM-32U includes a U.FL (IPEX) connector for attaching an external antenna, while the ESP32-WROOM-32D uses a PCB trace antenna. The U.FL connector on the -32U variant allows for improved range and signal reliability by connecting a higher-gain external antenna, which is beneficial in environments with signal interference or longer distance requirements. Both modules share identical core specifications, including the dual-core processor, memory, and wireless capabilities.

To connect an external antenna, you will need a compatible 2.4GHz antenna with a U.FL (IPEX) male connector. Gently press the antenna connector onto the module's onboard U.FL port until it clicks into place. Ensure the antenna impedance is 50 ohms for optimal performance. It is critical to avoid using the module's internal PCB trace antenna simultaneously; the external antenna connection automatically disables the internal one. For permanent installations, consider using a U.FL to SMA pigtail cable to route the antenna connection to an enclosure panel.

The module is fully supported by Espressif's official ESP-IDF framework, which provides low-level control and access to all hardware features. For rapid prototyping, it is also compatible with the Arduino Core for ESP32 via the Arduino IDE. Additionally, you can use MicroPython or PlatformIO for development. The programming and debugging interface is via the module's serial/UART pins. You will need a USB-to-serial adapter (like an FTDI board) connected to the GPIO1 (TX) and GPIO3 (RX) pins, along with proper boot mode pin configuration (GPIO0 pulled low for flashing).
