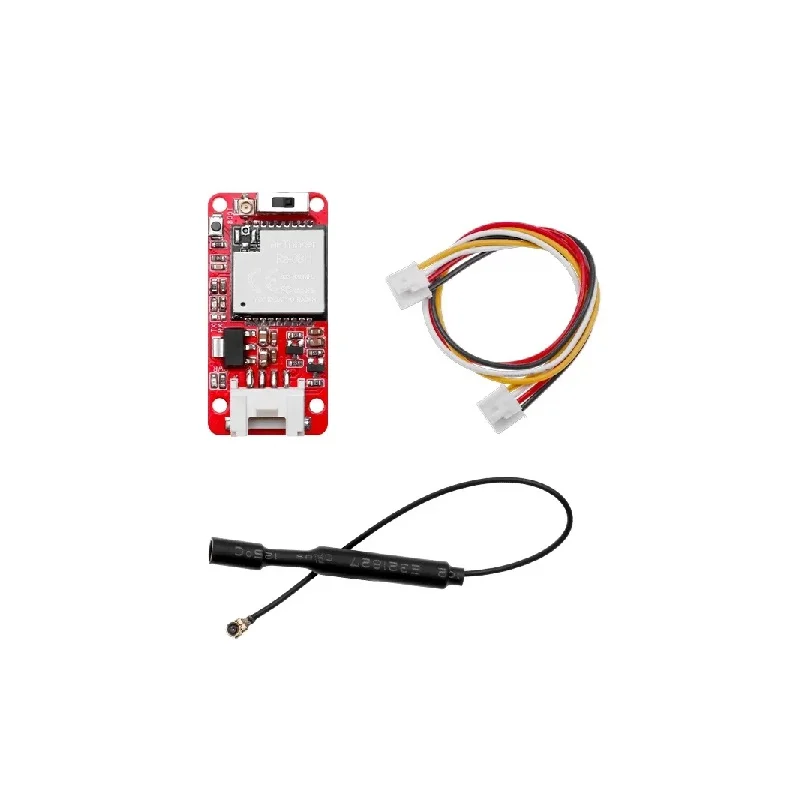

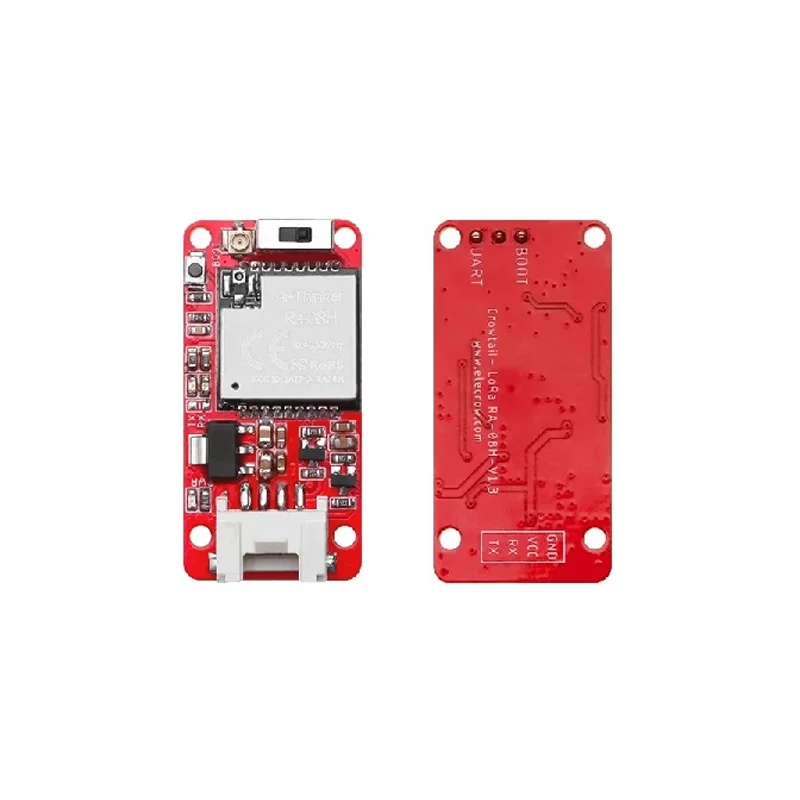

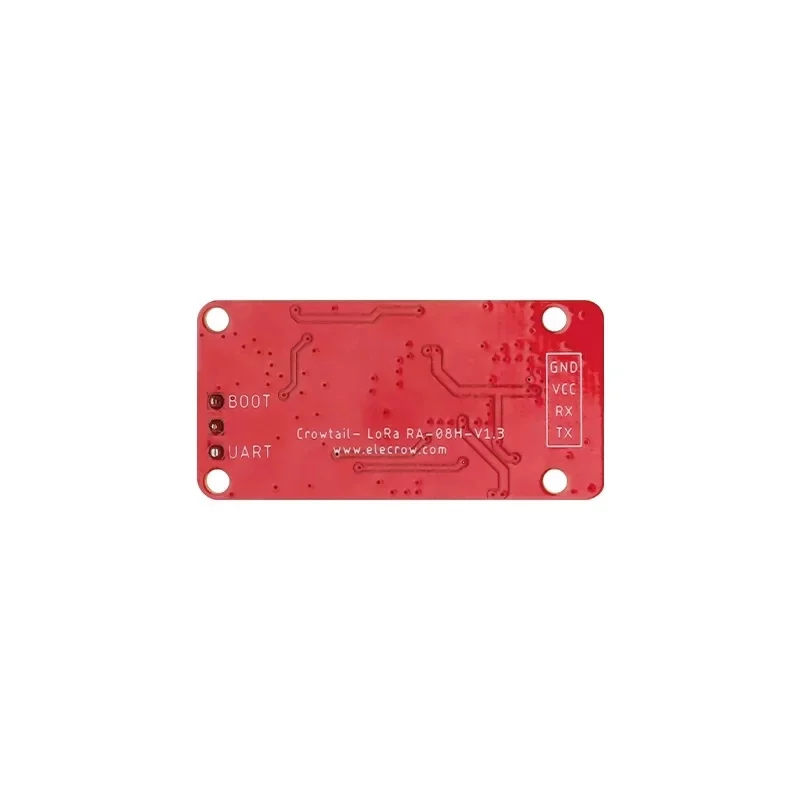

Elecrow Crowtail LoRa RA-08H Module (803-930MHz)
The Elecrow Crowtail LoRa RA-08H module is a Crowtail-compatible, long-range wireless transceiver based on the ASR6601 SoC, supporting LoRa, (G)FSK, BPSK, and (G)MSK modulation for LPWAN applications from 803-930MHz.
Features
- Based on the ASR6601 SoC integrating a 32-bit RISC MCU, RF transceiver, and modem for flexible LPWAN development.
- Supports ultra-long-range LoRa communication with +22dBm output power and high sensitivity down to -138dBm.
- Operates across the 803-930MHz frequency band, compatible with regional ISM allocations for global deployments.
- Features ultra-low power consumption with deep sleep modes drawing as low as 0.9µA for battery-powered IoT nodes.
- Crowtail form factor with a 3.3-5V operating range for easy plug-and-play integration with Elecrow base shields and Arduino.
Out of stock
The Crowtail LoRa RA-08H module leverages the ASR6601 system-on-chip, a highly integrated LPWAN solution combining a 32-bit RISC microcontroller, memory, and a multi-modulation RF front-end. This integration allows developers to implement custom firmware for sensor data acquisition, processing, and wireless transmission without an external MCU, simplifying node design and reducing BOM cost.
Its RF performance is tailored for challenging environments, offering configurable spreading factors from SF5 to SF12 and supporting both modern LoRa modulation and legacy protocols like (G)FSK. The module’s power architecture is optimized for field deployments, balancing a high +22dBm transmit power for maximum link budget with sophisticated sleep modes that extend battery life in periodic reporting scenarios, making it suitable for remote telemetry and industrial monitoring.
Additional Information
| Weight | 0.007 kg |
|---|
