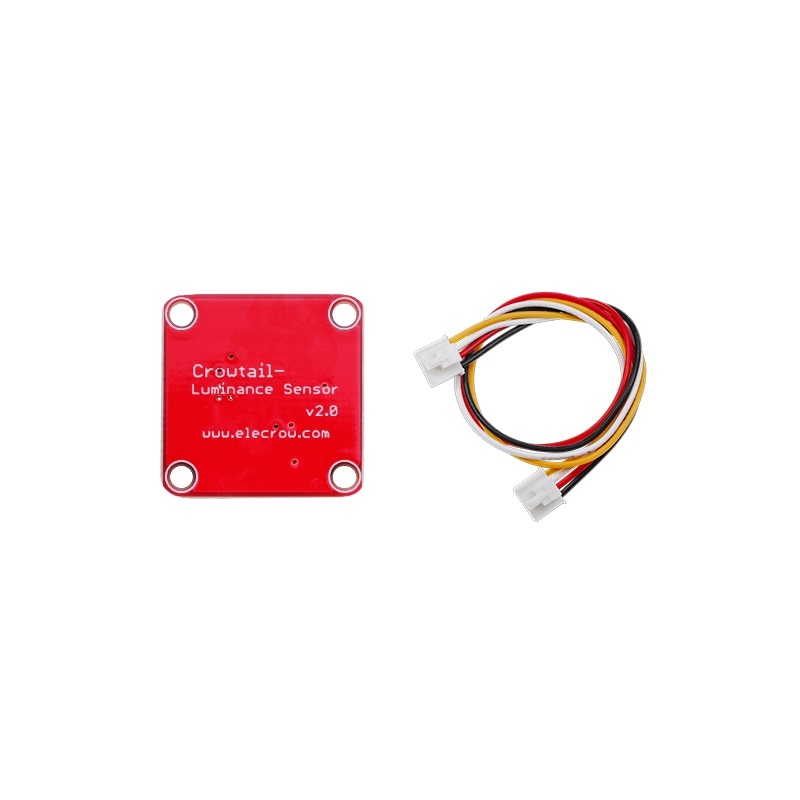

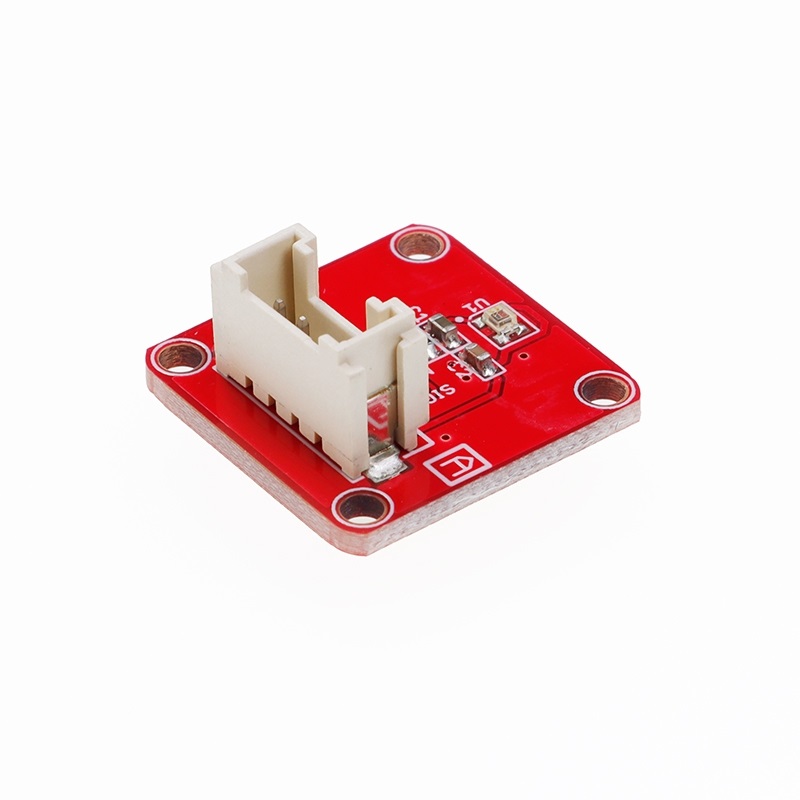

Elecrow Crowtail Luminance Sensor 2.0 Module w/ APDS-9002 - 3.3V/5V
The Elecrow Crowtail Luminance Sensor 2.0 is a plug-and-play ambient light sensor module based on the APDS-9002 photodiode, providing a linear analog output voltage proportional to light intensity. Compatible with 3.3V and 5V logic systems like Arduino, Raspberry Pi, and ESP32, it features a spectral response closely matched to the human eye for accurate environmental brightness measurement.
Features
- APDS-9002 photodiode sensor with human-eye matched spectral response for accurate lux measurement.
- Linear analog voltage output directly proportional to ambient light intensity.
- Wide operating voltage range from 3.3V to 5V DC for flexible microcontroller integration.
- Extended operating temperature range from -40°C to +80°C for robust environmental performance.

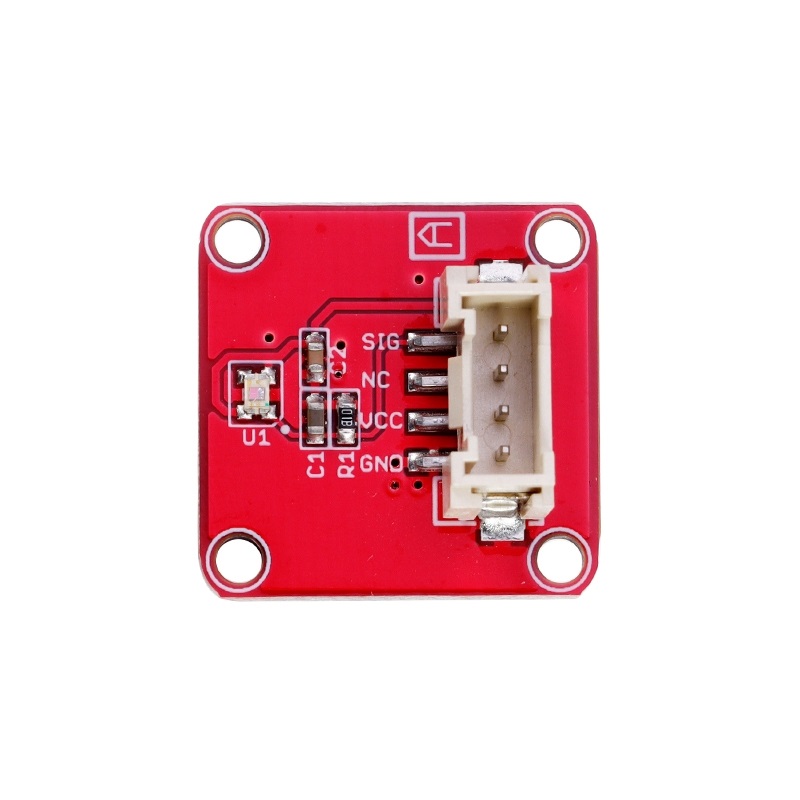

- Crowtail 4-pin connector system for quick, solderless prototyping and connection.
Out of stock
The Crowtail Luminance Sensor 2.0 utilizes the APDS-9002 ambient light sensor, a silicon photodiode with an integrated amplifier. Its output provides a linear voltage signal that directly correlates to the luminous flux in the environment, enabling precise monitoring of light level changes without complex signal conditioning. The sensor’s spectral sensitivity is engineered to closely approximate the photopic response of the human eye, making its readings perceptually relevant for lighting control and analysis.
Designed for seamless integration into electronic prototypes and IoT systems, the module operates across a broad temperature range and is supplied with a standard 4-pin Crowtail cable for immediate connection to compatible development boards. This makes it an ideal, high-value component for applications requiring reliable and accurate ambient light sensing.
Additional Information
| Weight | 0.025 kg |
|---|---|
| Dimensions | 12 × 8 × 2 cm |
