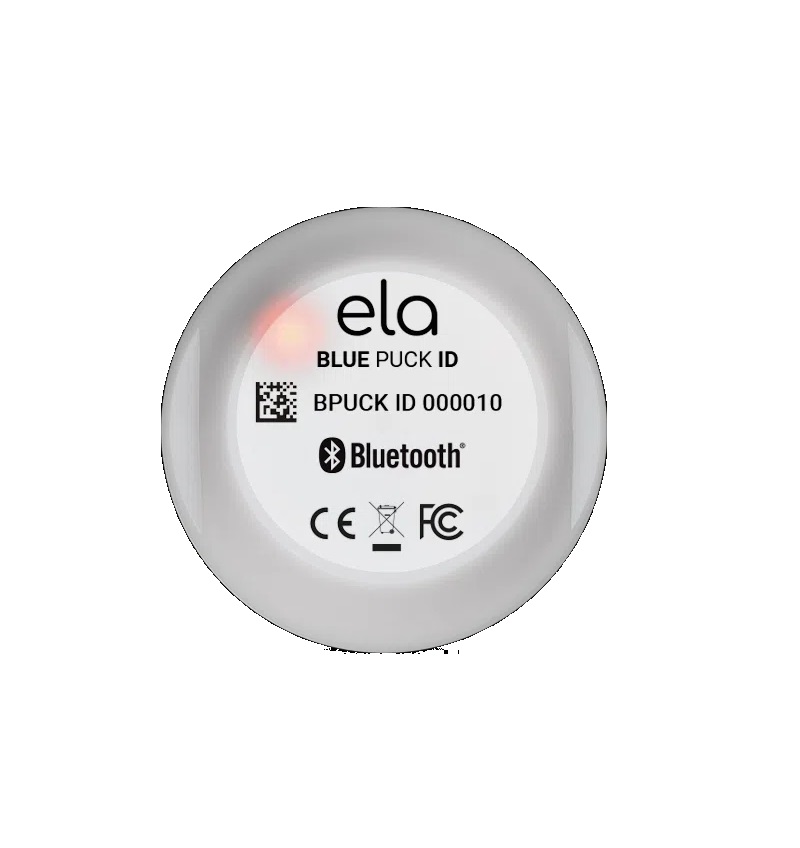

ELA Innovation Blue PUCK ID (IDF2524001A) Bluetooth Beacon - IP69K Waterproof, 500m Range, 20-Year Battery
ELA Innovation Blue PUCK ID (IDF2524001A) Bluetooth Beacon - IP69K Waterproof, 500m Range, 20-Year Battery - Image 2
SKU: SENS-3419
📋 GST Invoice Available

ELA Innovation Blue PUCK ID (IDF2524001A) Bluetooth Beacon - IP69K Waterproof, 500m Range, 20-Year Battery

₹3,539.00 (Inclusive of all taxes)
Out of Stock

The ELA Innovation Blue PUCK ID is a rugged, industrial-grade Bluetooth Low Energy (BLE) beacon designed for long-range asset identification and pick-to-light applications. Featuring an IP69K waterproof rating and an operating temperature from -40°C to +85°C, it is built for harsh environments and integrates seamlessly with industrial IoT systems via Bluetooth 4.0/4.2.

Features

  • Ultra-long 20-year battery life from an internal lithium cell.
  • Extended 500-meter Bluetooth LE range in open-field conditions.
  • IP69K-rated waterproof and dustproof construction for harsh industrial use.
  • Integrated high-power LED for visual pick-to-light system feedback.
  • Wide operating temperature range from -40°C to +85°C.

Out of stock

Description

The ELA Innovation Blue PUCK ID beacon is engineered for robust industrial identification and tracking. It utilizes Bluetooth Low Energy technology to broadcast a unique identifier over a range of up to 500 meters, enabling precise asset location and management in warehouses, factories, and outdoor yards. Its compact, sealed housing withstands high-pressure washdowns and extreme temperatures.

Advanced programmability via NFC and Over-the-Air Programming (OTAP) allows for flexible configuration of advertising intervals, transmission power, and data payloads without physical access. The integrated high-intensity LED provides immediate visual confirmation for pick-to-light and inventory verification tasks, enhancing operational accuracy.

Key Features

  • Extended Operational Lifespan: Powered by a non-replaceable internal lithium battery engineered for up to 20 years of continuous service.
  • Long-Range Wireless Connectivity: Bluetooth 4.0/4.2 (BLE) provides a reliable communication range of up to 500 meters in line-of-sight conditions.
  • Extreme Environment Durability: IP69K certification ensures protection against high-pressure, high-temperature water jets and dust ingress.
  • Integrated Visual Indicator: A high-power LED enables the device to function as a wireless trigger for pick-to-light and status indication systems.
  • Dynamic & Flexible Configuration: Supports NFC tap-to-configure and OTAP for remote management of advertising intervals (0.1 sec to 24 hrs) and other parameters.
  • Global Regulatory Compliance: Certified for CE, FCC, UKCA, ISED (Canada), TELEC (Japan), and RoHS standards.
  • Wide Thermal Tolerance: Operates reliably across an industrial temperature spectrum from -40°C to +85°C.

Applications

  • Industrial asset tracking and identification in warehouses, manufacturing floors, and logistics yards.
  • Pick-to-light and put-to-light systems for warehouse automation and inventory management.
  • Condition monitoring and tool tracking in harsh environments like automotive plants and food processing facilities.
  • Outdoor equipment and container localization for ports, construction sites, and agriculture.
  • Process verification and work-in-progress tracking in high-bay storage and assembly lines.

Technical Specifications

Manufacturer Part NumberIDF2524001A
Wireless TechnologyBluetooth Low Energy (BLE 4.0/4.2)
Maximum Range500 m (open field)
Battery LifeUp to 20 years
Power SourceInternal Lithium Battery
Operating Frequency2.4 GHz
Operating Temperature-40°C to +85°C
Ingress ProtectionIP69K
Special FeatureIntegrated High-Power LED
Programming InterfaceNFC, Over-the-Air Programming (OTAP)
CertificationsCE, FCC, UKCA, ISED, TELEC, RoHS

Frequently Asked Questions

What is the power source for the ELA Innovation Blue PUCK ID beacon?

The beacon is powered by a sealed, non-replaceable internal lithium battery designed for ultra-long-term operation. Under typical use with configurable advertising intervals, this battery can provide up to 20 years of service life, eliminating the need for frequent maintenance or replacement.

How is the Blue PUCK ID beacon configured and programmed?

Configuration is achieved through two primary methods: Near Field Communication (NFC) for tap-to-configure setup using a compatible smartphone or programmer, and Over-the-Air Programming (OTAP) for remote wireless updates. Parameters such as advertising interval (from 0.1 seconds to 24 hours), transmission power, and beacon identifier can be modified.

What does the IP69K rating mean for this device's durability?

The IP69K rating signifies the highest level of protection against environmental factors. It is dust-tight (IP6X) and protected against close-range, high-pressure, high-temperature water jets from any direction (IPX9K). This makes the beacon suitable for washdown areas in food processing, chemical plants, and other harsh industrial settings.

What is the purpose of the integrated high-power LED?

The integrated high-power LED enables the beacon to function as a wireless trigger in pick-to-light or put-to-light systems. When activated via its Bluetooth signal, the LED illuminates to provide a clear visual cue for warehouse operators, guiding them to the correct bin or location for order fulfillment, thereby improving accuracy and efficiency.

Package Includes

  • 1 x ELA Innovation Blue PUCK ID Beacon (IDF2524001A)

Additional Information

Weight 0.035 kg
Dimensions 13 × 10 × 4 cm
