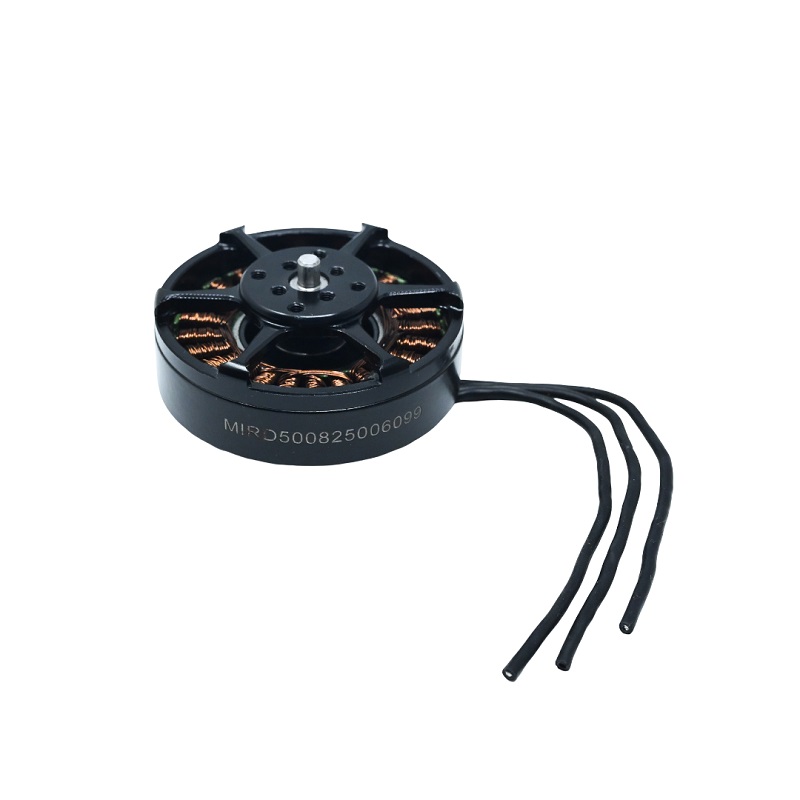

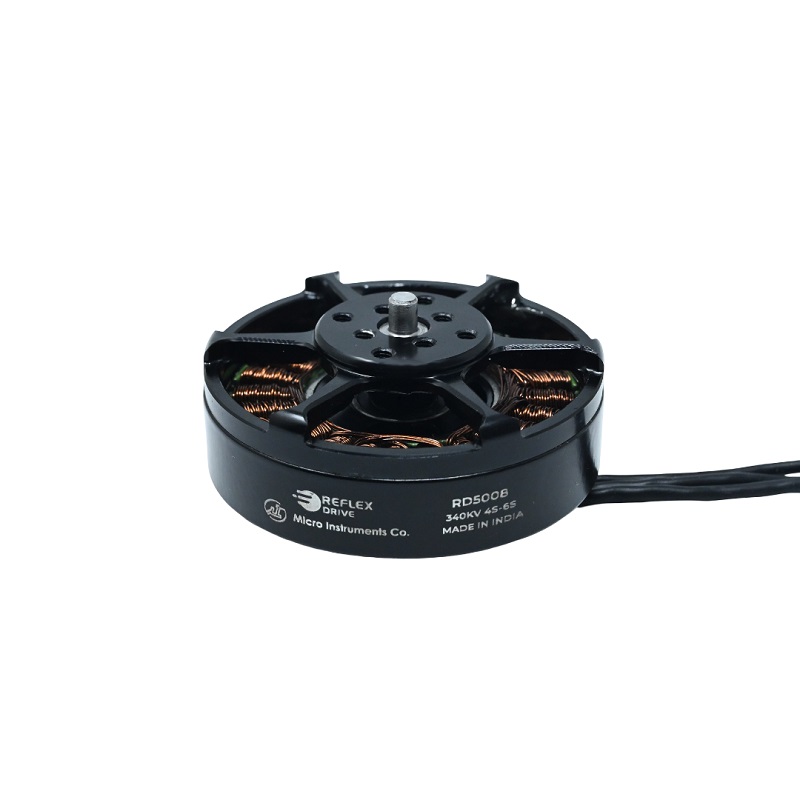

Reflex Drive 5008 KV340 UAV Brushless Motor
The Reflex Drive 5008 KV340 is a high-efficiency, 6S-compatible brushless outrunner motor engineered for heavy-lift multirotor and VTOL applications, supporting 15 to 18-inch propellers for demanding aerial operations.
Features
- High-efficiency 5008 outrunner design delivering 90.99% efficiency for extended flight times.
- Optimized for 6S LiPo systems, providing a maximum continuous power rating of 1224W at 51A.
- Engineered for large 15″ to 18″ propellers, ideal for heavy-lift quadcopter, hexacopter, and octocopter frames.
- Features advanced internal cooling and an IP34 ingress protection rating for operation in demanding environments.
- Lightweight 137g construction with 15 AWG silicone cables for robust power delivery and installation flexibility.
Out of stock
The Reflex Drive 5008 KV340 UAV Brushless Motor is a precision-engineered outrunner designed for high-thrust, heavy-lift multirotor platforms. Its 24-slot stator and 100% copper windings are optimized for 6S voltage input, delivering a peak torque of 2.88 n.cm to efficiently drive large-diameter propellers up to 18 inches. The motor’s advanced thermal management system ensures stable performance under continuous high-load conditions, preventing efficiency drop-off during prolonged flight operations.
Built with durability for professional UAV applications, the motor features a robust IP34-rated housing that protects against dust and water splashes, making it suitable for agricultural, surveying, and cinematic drone builds. The integrated 80mm 15 AWG power leads provide secure, high-current connections to compatible ESCs, such as the recommended RD D-Pro 40A. This motor represents a high-value solution for pilots requiring reliable propulsion for frames with take-off weights exceeding 7.5 kg on a quadcopter configuration.
Additional Information
| Weight | 0.19 kg |
|---|---|
| Dimensions | 11 × 12 × 6 cm |
