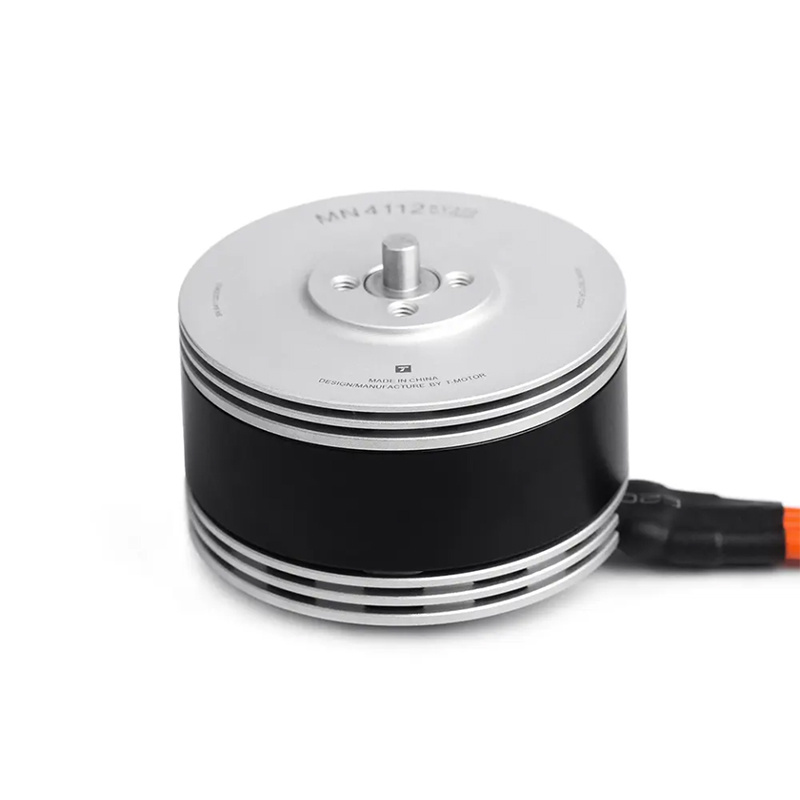

T-Motor MN4112 KV420 Antigravity Motor
The T-Motor MN4112 KV420 is a high-performance Antigravity series brushless motor engineered for heavy-lift cinematic drones and VTOL platforms. Designed for 6S LiPo operation with a 420KV rating, it delivers up to 2.3kg of thrust per motor and integrates a centrifugal cooling system for sustained high-power output.
Features
- 420KV rating optimized for 6S LiPo voltage on large multirotors.
- Delivers up to 2.3kg of thrust with a peak current handling of 54A.
- Features a centrifugal cooling design and high-temperature 220°C copper windings for thermal durability.
- Precision dynamic balancing (<5mg) ensures smooth operation for vibration-sensitive camera platforms.
- Robust construction with 6mm inner shaft diameter and 686ZZ/696ZZ bearings.
Out of stock
The MN4112 motor from T-Motor’s Antigravity series represents a high-efficiency powerplant for demanding aerial cinematography and heavy-lift applications. Its design prioritizes a high thrust-to-weight ratio while maintaining exceptional thermal management through a proprietary centrifugal cooling architecture that directly ventilates the stator windings.
Built with a single thick 16AWG copper wire per tooth, the motor minimizes resistive losses (60mΩ internal resistance) and is insulated to a 220°C Class C temperature rating. The rotor is precision-balanced to under 5mg, drastically reducing harmonic vibrations that can interfere with gimbal and camera performance. The motor’s 12N14P magnetic configuration provides smooth torque delivery suitable for large propellers up to 15×5 inches.
Additional Information
| Weight | 0.334 kg |
|---|---|
| Dimensions | 13 × 11 × 5 cm |
