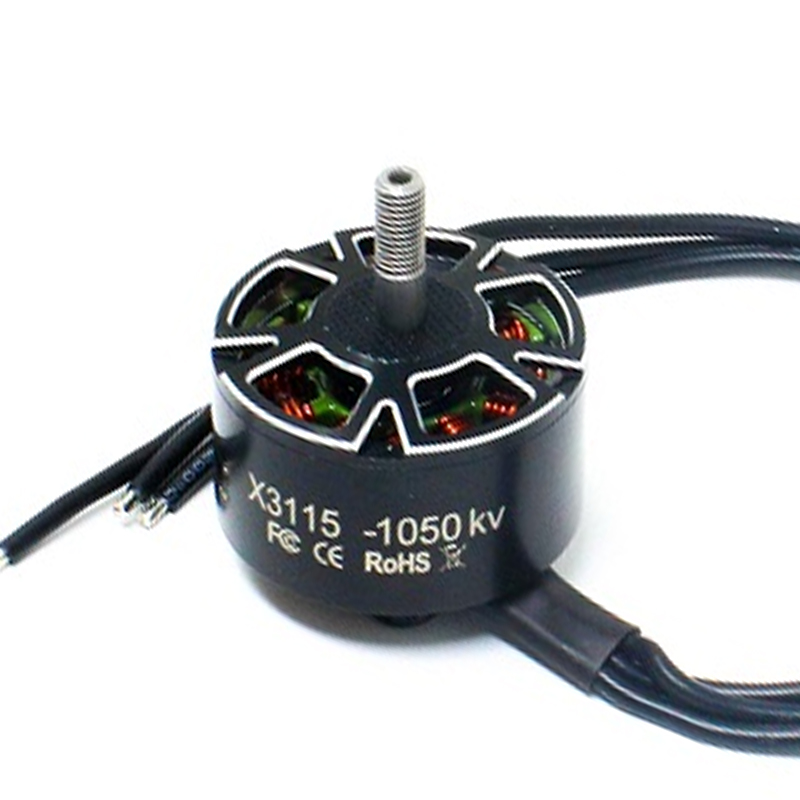

DYS X3115 1050KV FPV Motor
The DYS X3115 is a 1050KV brushless motor engineered for high-thrust, long-range, and endurance FPV drone applications. Featuring a 31x15mm stator size and N52H magnets, it delivers 1450W of peak power on 6S LiPo systems, optimized for large 9-inch propellers.
Features
- 1050KV rating optimized for 6S LiPo voltage and high-efficiency flight.
- 31x15mm stator (X3115) with N52H magnets for high torque and thermal capacity.
- Rated for up to 58A continuous current and 1450W peak power.
- 5mm hardened steel shaft for durability with large prop adapters.
- Low 33mΩ internal resistance for improved efficiency and cooler operation.
Out of stock
The DYS X3115 1050KV motor is designed for pilots requiring sustained power and efficiency for long-range cruising, aerial cinematography, and heavy-lift multirotor platforms. Its 31mm stator diameter and 15mm height provide an optimal magnetic circuit for generating high torque at moderate RPMs, making it exceptionally well-suited for large-diameter propellers on 6S power systems.
Constructed with a 12N14P winding configuration and premium bearings, the motor ensures smooth, vibration-free operation essential for stable video footage and reliable endurance flights. The robust 5mm shaft and 150g weight reflect a build quality focused on handling the inertial loads of 9-inch or larger propellers without compromising longevity.
Additional Information
| Weight | 0.135 kg |
|---|---|
| Dimensions | 8 × 5 × 5 cm |
