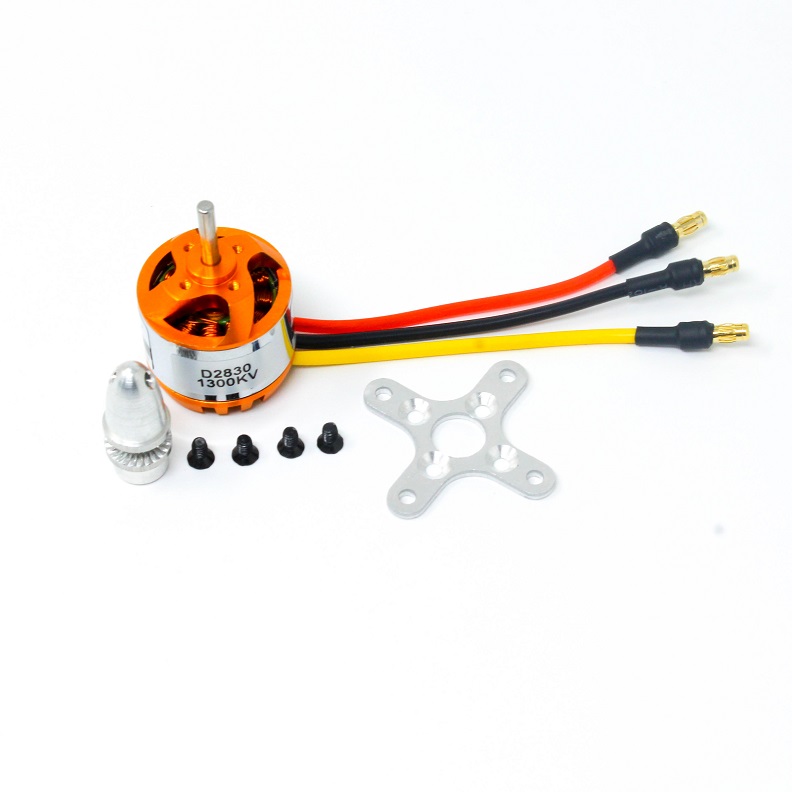

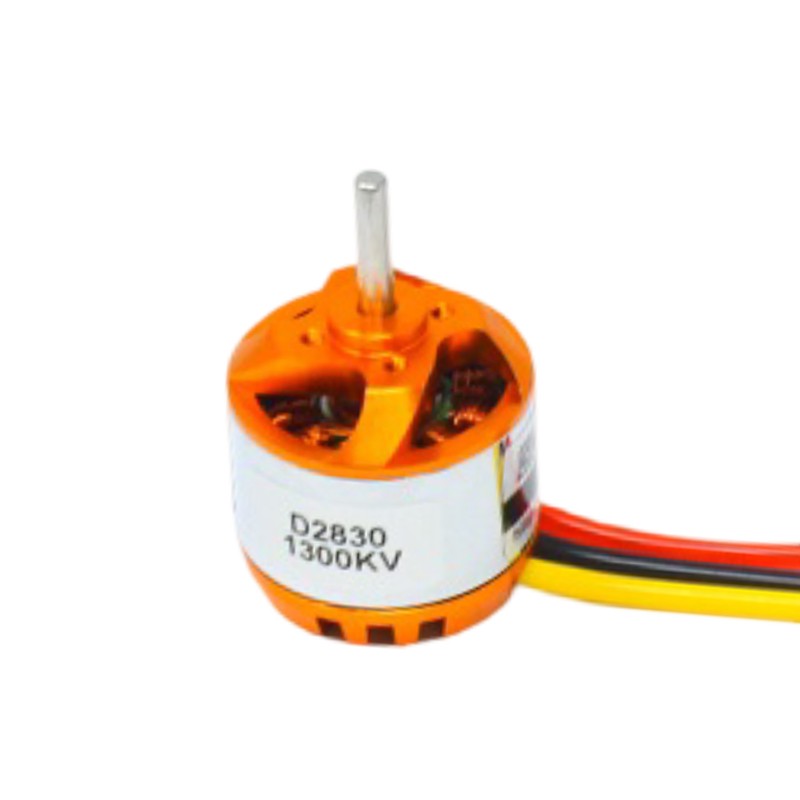

DYS D2830 1300KV 2-4S Brushless Motor
The DYS D2830 is a 1300KV brushless motor engineered for 2-4S LiPo systems, delivering reliable thrust for medium-sized multirotor drones and RC aircraft. Its 3.175mm shaft and 30A ESC requirement ensure compatibility with a wide range of aerial platforms.
Features
- 1300KV rating optimized for 2-4S LiPo battery configurations.
- 3.175mm (Φ3.175) shaft diameter for secure propeller mounting.
- Requires a 30A Electronic Speed Controller (ESC) for optimal performance.
- Maximum power handling of 275W for demanding flight maneuvers.
- Low internal resistance of 0.075mΩ for efficient power delivery and cooler operation.
Out of stock
The DYS D2830 brushless motor is a precision-engineered propulsion unit designed for endurance and versatility in aerial applications. Its 28mm stator diameter and 30mm height provide a balanced power-to-weight ratio, making it suitable for medium-sized FPV drones, long-range platforms, and fixed-wing aircraft. The motor’s construction prioritizes thermal management and mechanical durability for consistent performance.
Compatible with 9×6 or 7×3-inch propellers, the D2830 offers pilots flexibility in tuning for either high-thrust efficiency or responsive aerobatics. The low internal resistance minimizes electrical losses, translating battery power directly into rotational force and extended flight times. This motor integrates seamlessly into Betaflight and ArduPilot flight stacks when paired with a compatible ESC.
Additional Information
| Weight | 0.075 kg |
|---|---|
| Dimensions | 11 × 6 × 6 cm |
