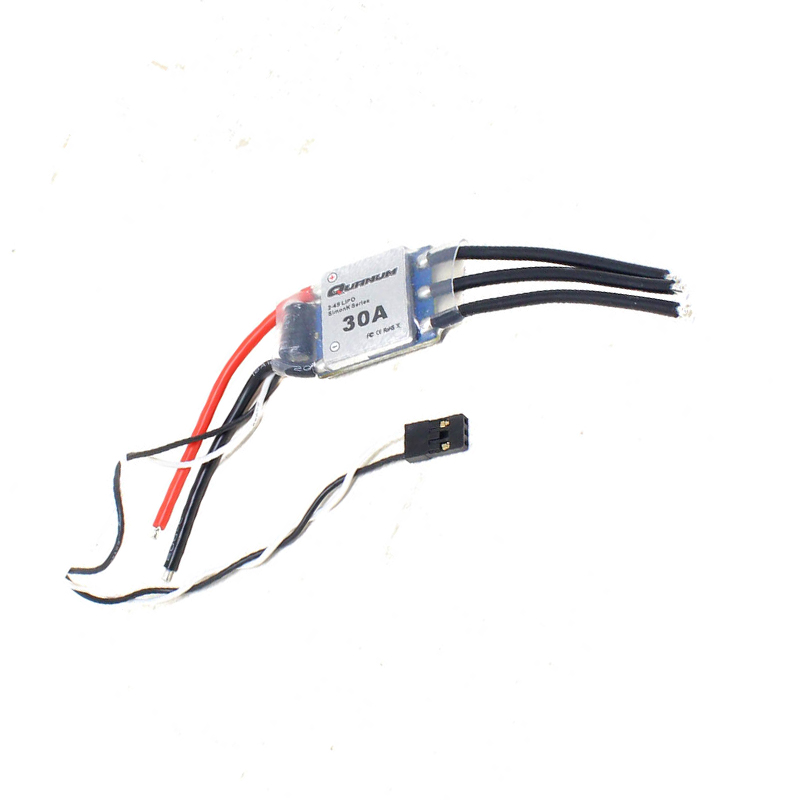

DYS Quanum 30A Multi-Copter Brushless ESC w/ 5V/3A BEC
SKU: DRFC-0198
📋 GST Invoice Available

DYS Quanum 30A Multi-Copter Brushless ESC w/ 5V/3A BEC

₹1,089.00 (Inclusive of all taxes)
Out of Stock

This DYS Quanum 30A Multi-Copter Brushless Speed Controller provides reliable power delivery for multi-rotor aircraft, supporting 2-4S LiPo input and featuring SimonK firmware for precise motor control. It includes an integrated 5V/3A BEC to power your flight controller and other onboard electronics.

Features

  • Continuous 30A current handling with 40A burst capability.
  • Supports 2-4S LiPo input (DC 6-16.8V) for versatile power setups.
  • Integrated 5V/3A BEC for auxiliary power to flight controllers and peripherals.
  • Pre-loaded with SimonK firmware, optimized for multi-copter specific control.
  • Utilizes a high stability crystal oscillator for precise motor timing and efficiency.

Out of stock

Description

The DYS Quanum 30A Multi-Copter Brushless Speed Controller is engineered for robust and reliable performance in multi-rotor applications. Its power input circuit features extremely low output resistance, which significantly enhances overall power stability and offers a protective effect for your battery. A dedicated voltage regulator IC isolates the microprocessor, ensuring excellent anti-jamming capabilities for uninterrupted signal integrity.

Equipped with SimonK’s specialized multi-copter program, tgy_debug, and a master chip driven by a high-stability crystal oscillator, this ESC delivers exceptionally precise motor control. This precision is critical for maintaining stable flight characteristics and responsive handling, making it a dependable choice for both recreational and performance-oriented drone builds. The design emphasizes durability and consistent operation under demanding flight conditions.

Key Features

  • Utilizes robust drive tubes and high-power MOSFETs, with each MOSFET supplemented by a separate heat sink for superior thermal management.
  • Features an extremely low output resistance PCB (printed circuit board) design, ensuring outstanding current endurance and efficiency.
  • Incorporates a safety electrical function that prevents immediate motor startup upon power-on, regardless of throttle stick position, mitigating personal injury risks.
  • Employs a separate voltage regulator IC for the microprocessor, significantly enhancing anti-jamming capability and signal stability.
  • Supports high motor speeds: up to 210,000 RPM for 2-pole motors, 70,000 RPM for 6-pole motors, and 35,000 RPM for 12-pole motors.
  • Pre-loaded with SimonK's dedicated multi-copter program, tgy_debug, and a master chip with a high-stability crystal oscillator for highly precise motor control.

Applications

  • FPV racing drones and freestyle quadcopters.
  • Recreational multi-rotor aircraft requiring reliable 30A ESCs.
  • DIY drone builds where SimonK firmware is preferred for motor control.
  • Small to medium multi-copters needing an integrated 5V BEC for flight controller power.

Technical Specifications

Running CurrentContinuous 30A, Burst 40A (up to 10s)
Input VoltageDC 6-16.8V (2-4S LiPo)
BEC Output5V/3A
FirmwareSimonK tgy_debug
Max RPM (2-pole)210,000 RPM
Max RPM (6-pole)70,000 RPM
Max RPM (12-pole)35,000 RPM
Weight23g

Frequently Asked Questions

What input voltage does the DYS Quanum 30A ESC support?

This DYS Quanum 30A ESC is designed to operate within a DC input voltage range of 6-16.8V, which corresponds to 2-4S LiPo battery configurations. This ensures broad compatibility with various multi-copter power systems, offering flexibility for your drone build while maintaining optimal performance and safety.

What firmware is pre-loaded on this ESC, and what are its benefits?

The DYS Quanum 30A ESC comes pre-loaded with SimonK tgy_debug firmware, specifically optimized for multi-copter applications. This firmware provides highly precise motor control and rapid throttle response, crucial for stable and agile flight performance. Its dedicated architecture ensures efficient communication and reliability during dynamic maneuvers.

Can this ESC power a flight controller or other accessories?

Yes, this DYS Quanum 30A ESC features an integrated 5V/3A BEC (Battery Eliminator Circuit). This onboard regulator efficiently steps down the main battery voltage to a stable 5V, capable of supplying up to 3 Amps. This power output is typically sufficient for flight controllers, LED lights, and other low-power accessories.

Package Includes

  • 1 x DYS Quanum 30A Multi-Copter Brushless Speed Controller Programmable with 5V/3A

Additional Information

Dimensions 9 × 6 × 1 cm
