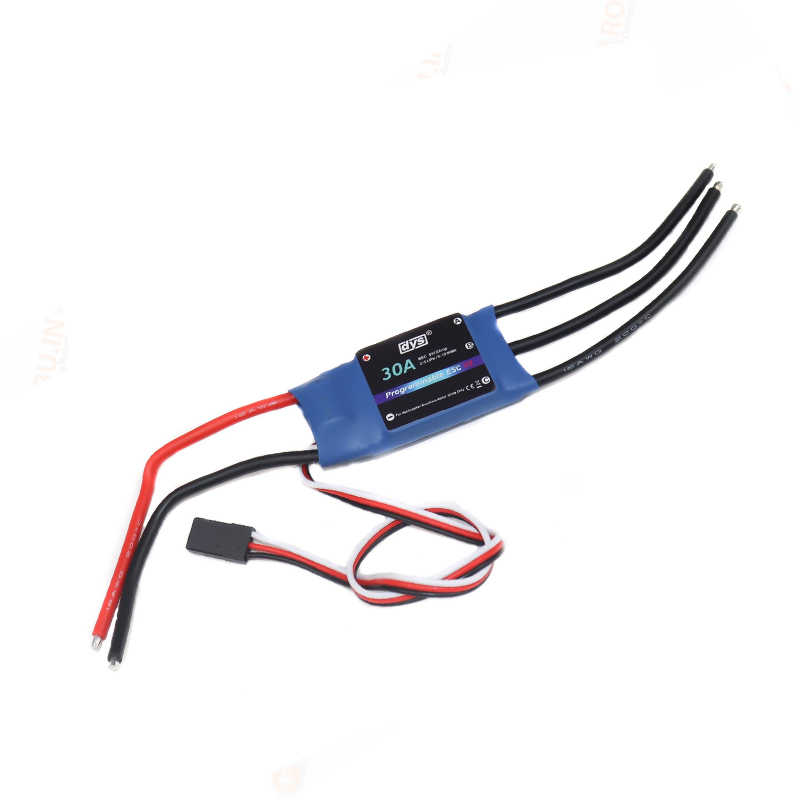

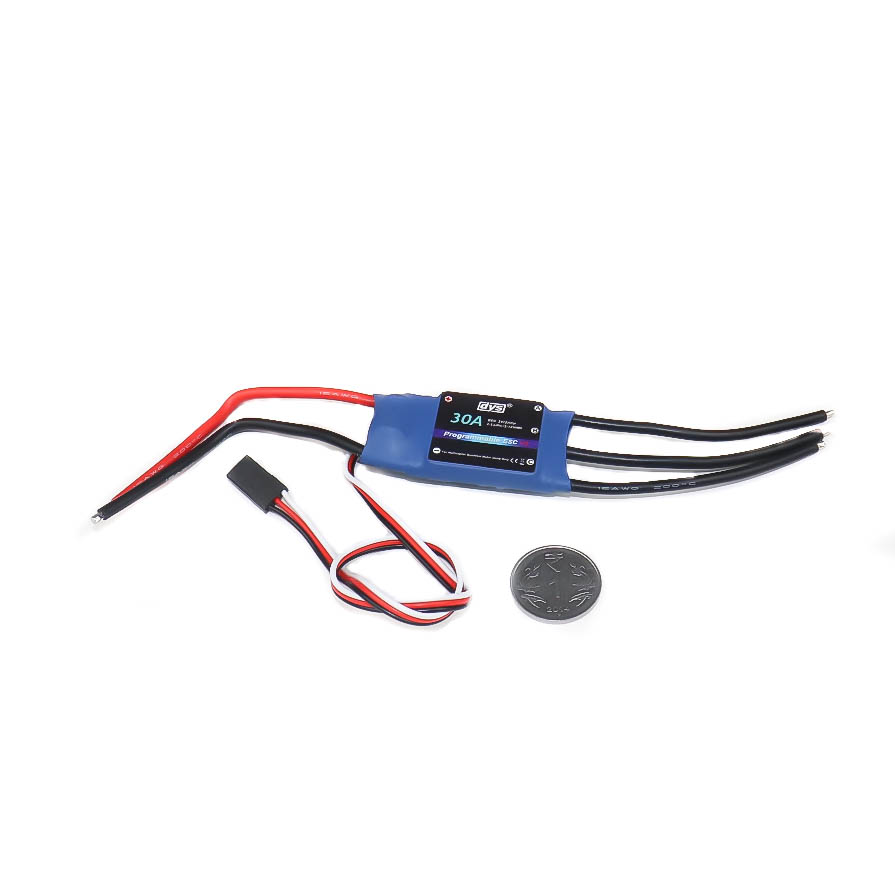

DYS SimonK 30A Brushless ESC for Quadcopter
The DYS SimonK 30A Brushless ESC is engineered for reliable performance in drones and multi-copters, offering stable 30A continuous current and a built-in 5V/2A BEC. Compatible with 2-4S LiPo batteries, it features SimonK firmware for precise and responsive motor control, crucial for agile flight.
Features
- Robust 30A continuous current with 40A burst capability for demanding applications.
- Integrated 5V/2A Battery Eliminator Circuit (BEC) for powering flight controllers.
- Supports a versatile 2S to 4S LiPo input voltage range for various setups.
- Utilizes SimonK firmware, optimized for precise multi-copter motor control.
- Enhanced power stability with extreme low output resistance PCB design.
Out of stock
This DYS SimonK 30A Brushless Speed Controller (ESC) is designed to deliver consistent and stable power to brushless motors in drones, multi-copters, and RC planes. Featuring the dedicated multi-copter SimonK (tgy_debug) firmware, it ensures highly precise motor control and a responsive throttle curve, which is essential for dynamic flight performance and accurate maneuvering. The master chip is equipped with a high-stability crystal oscillator, further contributing to control precision.
The ESC’s power input utilizes extreme low output resistance, significantly enhancing power stability and offering a protective effect on the connected battery. A separate voltage regulator IC for the microprocessor ensures good anti-jamming capabilities, maintaining signal integrity in noisy electrical environments. Safety is paramount, with a built-in electrical function that prevents immediate motor startup upon power-on, regardless of the throttle stick position, safeguarding against accidental injury during initial power-up sequences.
Additional Information
| Dimensions | 4.6 × 2.6 × 5 cm |
|---|
