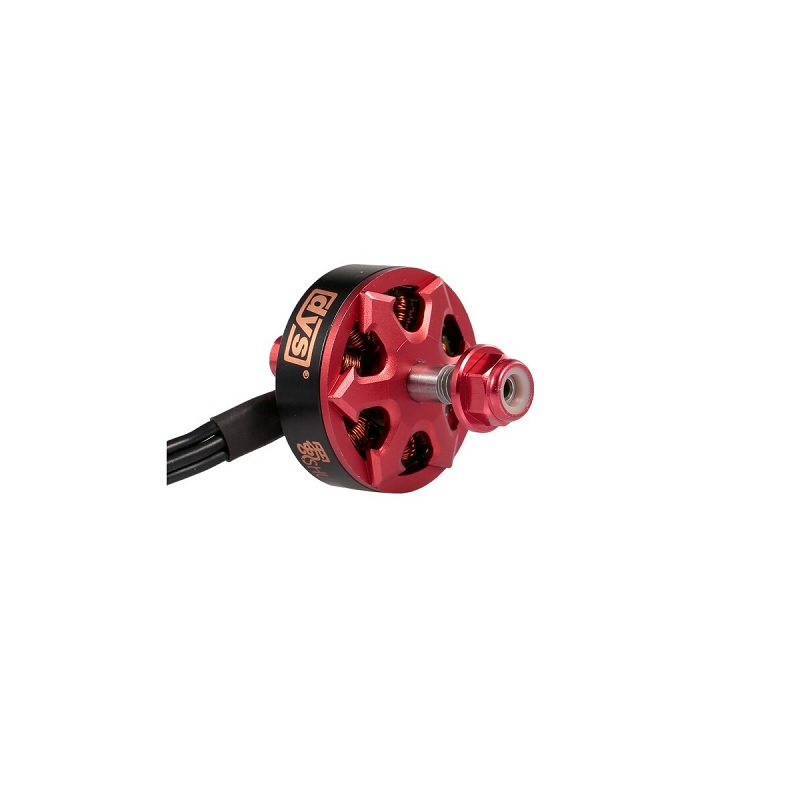

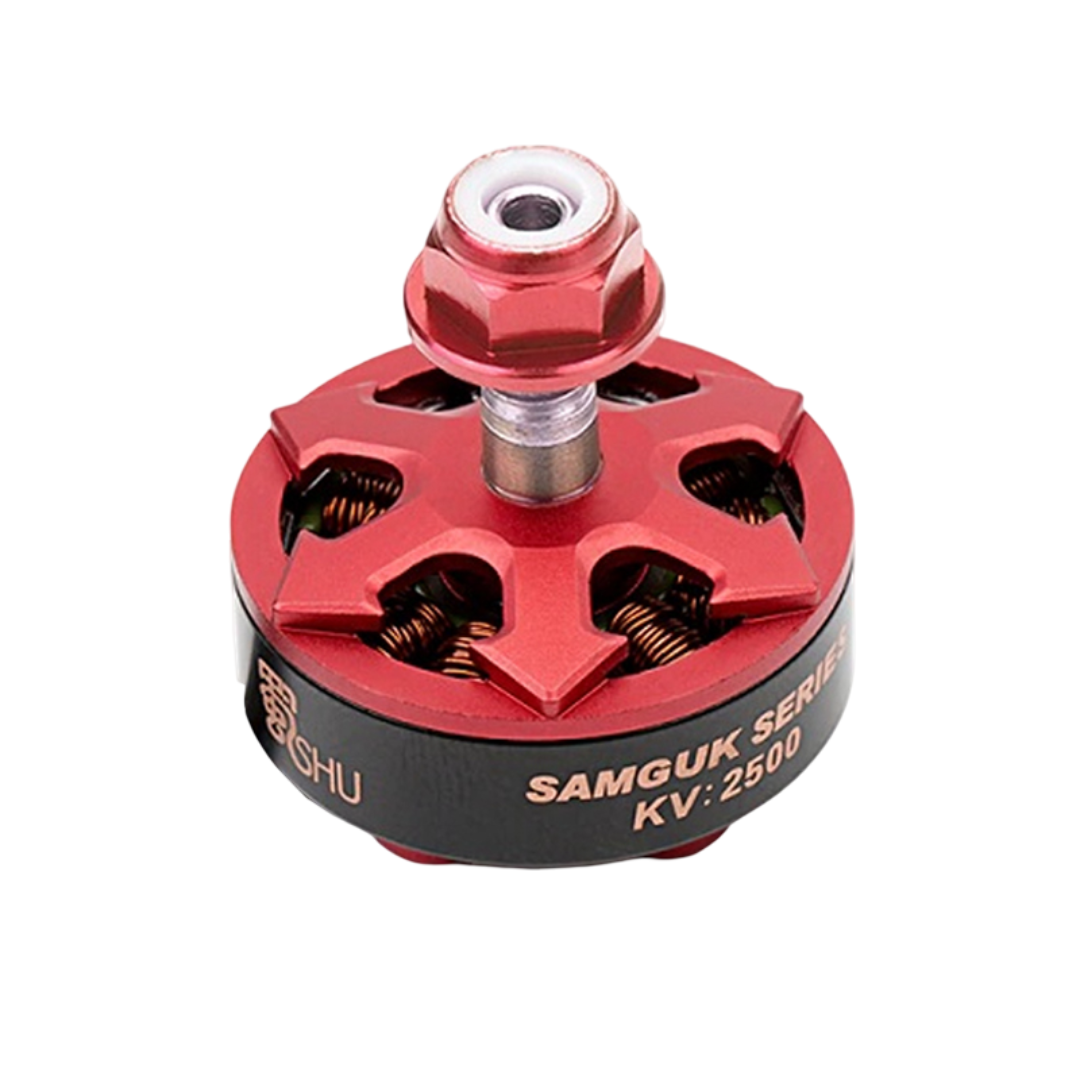

DYS Samguk Series SHU D2306 2500Kv BLDC Motor
The DYS Samguk Series SHU D2306 2500Kv brushless motor is engineered for high-performance FPV racing and freestyle drones, offering a robust M5 shaft and a power-to-weight ratio optimized for 4S to 6S LiPo systems.
Features
- High-torque 2306 stator size with 2500Kv rating for aggressive 5-inch racing.
- M5 threaded shaft with CW nut for secure propeller mounting.
- Lightweight 31g design maximizes power-to-weight efficiency.
- High-purity copper windings for efficient power delivery and reduced heat.
- Balanced construction ensures smooth, vibration-free operation.
Out of stock
The SHU D2306 motor from DYS’s Samguk Series is built around a 2306 stator configuration, delivering high torque and rapid throttle response essential for competitive FPV racing. Its 2500Kv rating provides an optimal balance of RPM and current draw, making it suitable for 4S to 6S LiPo power systems.
Engineered for durability, the motor features a robust M5 steel shaft and precision-machined bell housing to maintain balance at high rotational speeds. The high-purity copper windings and optimized magnetic circuit minimize electrical losses and thermal buildup during sustained high-power maneuvers.
Additional Information
| Weight | 0.031 kg |
|---|---|
| Dimensions | 2.8 cm |
