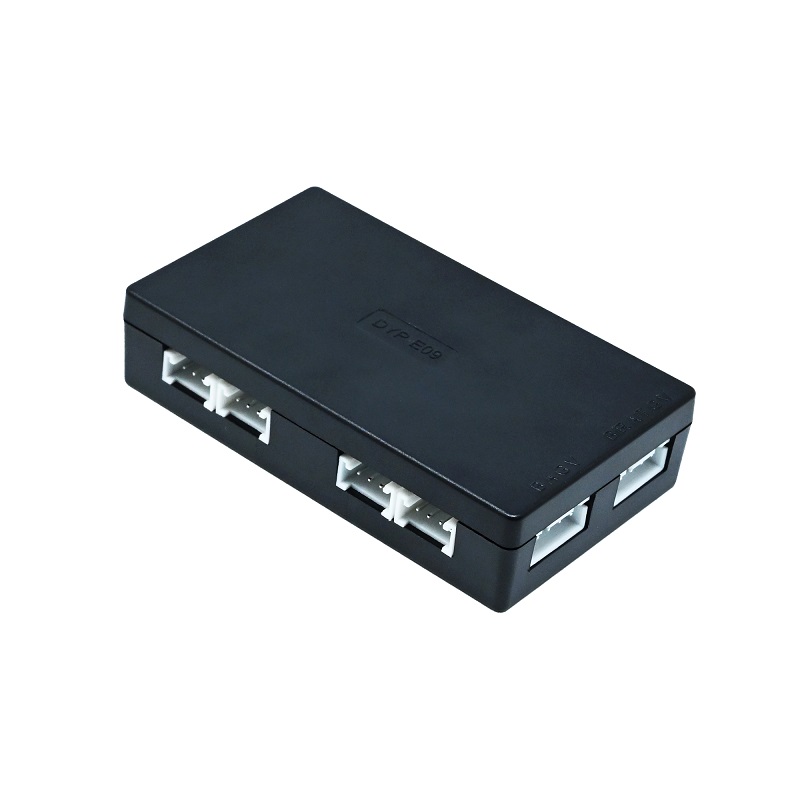

DYP E09TF-V1.0 8-in-1 Converter Module - UART TTL / RS485 Interface

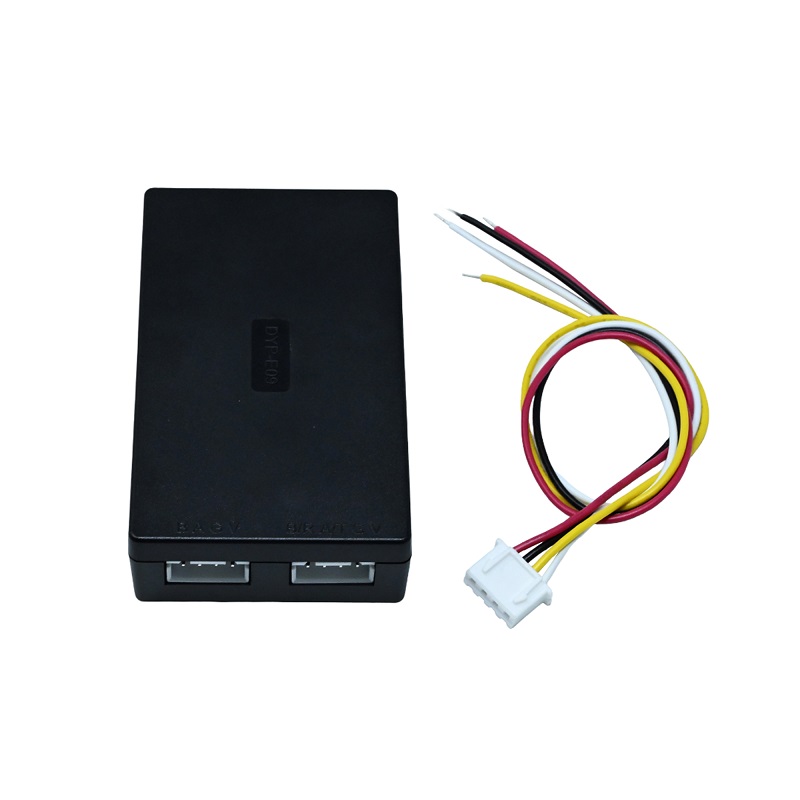

DYP E09TF-V1.0 8-in-1 Converter Module - UART TTL / RS485 Interface - Image 2
SKU: SENS-2883
📋 GST Invoice Available

DYP E09TF-V1.0 8-in-1 Converter Module - UART TTL / RS485 Interface

₹1,739.00 (Inclusive of all taxes)
Out of Stock

The DYP-E09TF-V1.0 is an 8-in-1 converter module designed to interface and manage up to eight ranging sensors via UART TTL or RS485 Modbus protocol, providing centralized data acquisition for industrial automation, robotics, and multi-sensor systems.

Features

  • Centralized control for up to 8 ultrasonic or ranging sensor modules via polling or simultaneous operation.
  • Dual communication interfaces: UART TTL (3.3V/5V logic) and RS485 Modbus for flexible system integration.
  • 12V DC power input with low operating current (≤130mA) for energy-efficient industrial deployments.
  • Robust electrostatic protection compliant with IEC61000-4-2 standards for harsh electrical environments.
  • Compact PCB design (72.8mm x 43mm) for easy integration into control cabinets and embedded systems.

Out of stock

Description

The DYP-E09TF-V1.0 converter module acts as a communication hub, aggregating data from multiple ranging sensors into a single, manageable data stream. It utilizes a master-slave architecture over its RS485 bus or direct UART TTL connections, enabling scalable distance monitoring setups without overloading the host microcontroller or PLC. The module handles protocol conversion and signal conditioning, delivering stable, reliable sensor readings.

Engineered for industrial durability, the module operates reliably across a -10°C to +60°C temperature range and incorporates electrostatic discharge (ESD) protection per IEC61000-4-2. Its 12V DC power requirement and low current draw make it suitable for centralized power distribution in multi-sensor applications, from warehouse automation and robotic navigation to smart parking systems and level monitoring.

Key Features

  • Multi-Sensor Hub: Manages up to eight independent ranging modules (e.g., ultrasonic sensors) on a single communication bus, reducing wiring complexity and host controller I/O requirements.
  • Dual-Protocol Interface: Provides both 3.3V/5V UART TTL for direct microcontroller connection and RS485 with Modbus RTU for long-distance, noise-immune industrial networks.
  • Industrial-Grade Protection: Integrated ESD protection circuitry safeguards the module and connected sensors from electrostatic discharges, ensuring long-term reliability.
  • Wide Operating Temperature: Functions consistently in environments from -10°C to +60°C, suitable for both indoor and sheltered outdoor installations.
  • Optimized Power Design: 12V DC input with ≤130mA current consumption allows for efficient power sourcing from standard industrial power supplies or battery packs.
  • Compact Form Factor: The small PCB footprint facilitates installation in space-constrained control panels, robotic platforms, and custom enclosures.

Applications

  • Centralized distance monitoring systems in automated warehouses and logistics centers.
  • Multi-sensor navigation and obstacle avoidance arrays for autonomous mobile robots (AMRs) and AGVs.
  • Industrial level measurement and tank monitoring using multiple ultrasonic sensors.
  • Smart parking system infrastructure for managing multiple vehicle detection sensors.
  • Building automation for occupancy detection and space utilization analytics.

Technical Specifications

Item TypeConverter Module
Model NumberDYP E09TF V1.0
Operating Voltage12V DC
Operating Current≤130 mA
Communication InterfacesUART TTL, RS485 (Modbus Protocol)
Maximum Sensor Capacity8 Modules
Operating Temperature-10°C to +60°C
ESD ProtectionIEC61000-4-2 Compliant
Length72.8 mm
Width43 mm
Weight34 g

Frequently Asked Questions

What is the primary function of the DYP-E09TF-V1.0 module?

The DYP-E09TF-V1.0 is a communication converter and hub designed to centrally manage up to eight compatible ranging sensor modules. It aggregates their data and outputs it via either a UART TTL serial interface for direct microcontroller connection or an RS485 bus using the Modbus RTU protocol for industrial network integration, simplifying wiring and data acquisition.

What types of sensors can be connected to this converter module?

This module is designed to interface with ultrasonic ranging or distance sensor modules that communicate via UART TTL, typically from the same manufacturer (DYP) or others with compatible 3.3V/5V logic-level serial protocols. It is not intended for analog, I2C, or SPI-based sensors unless an additional protocol converter is used.

How do I power the module and what are the voltage requirements?

The module requires a 12V DC power supply, with a typical operating current of ≤130mA. Ensure your power source is stable and can deliver sufficient current for the module itself plus any connected sensors that may draw power through the hub's ports. The logic-level UART TTL interface operates at 3.3V or 5V, set by the host controller.

Can I use both the UART TTL and RS485 outputs simultaneously?

No, the UART TTL and RS485 interfaces are typically alternative output paths for the same aggregated sensor data. You select one interface based on your system architecture. The UART TTL is for short-range, direct connections to a microcontroller, while the RS485 is for long-distance, multi-drop communication in noisy industrial environments.

What is the communication protocol and how do I address individual sensors?

The module uses the Modbus RTU protocol over RS485. Each connected ranging sensor module is assigned a unique Modbus slave address (typically 0x01 to 0x08). Over the UART TTL interface, it outputs a structured serial data frame. You must configure the sensor addresses via the module's setup procedure or dedicated configuration commands as per the manufacturer's datasheet.

Package Includes

  • 1 x DYP-E09TF-V1.0 8-in-1 Converter Module
  • 1 x 4-Pin Connecting Cable

Additional Information

Weight 0.034 kg
Dimensions 7.28 × 4.3 cm
