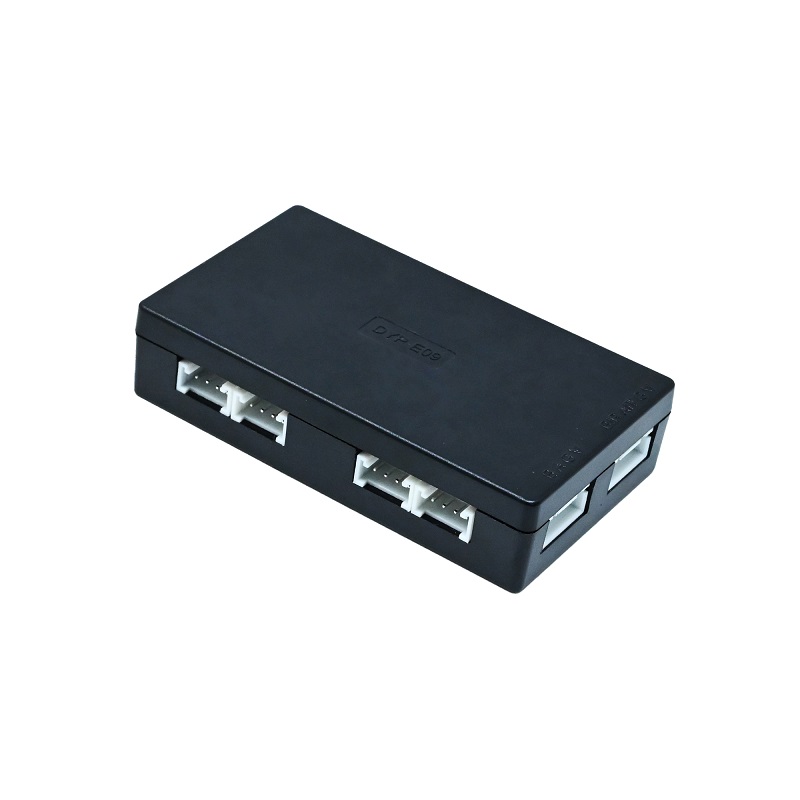

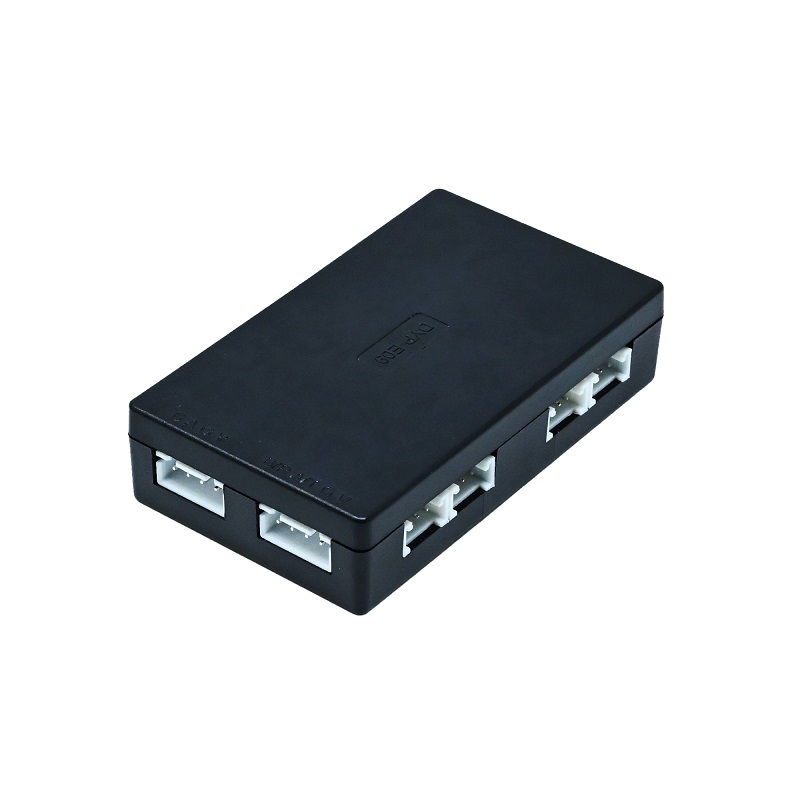

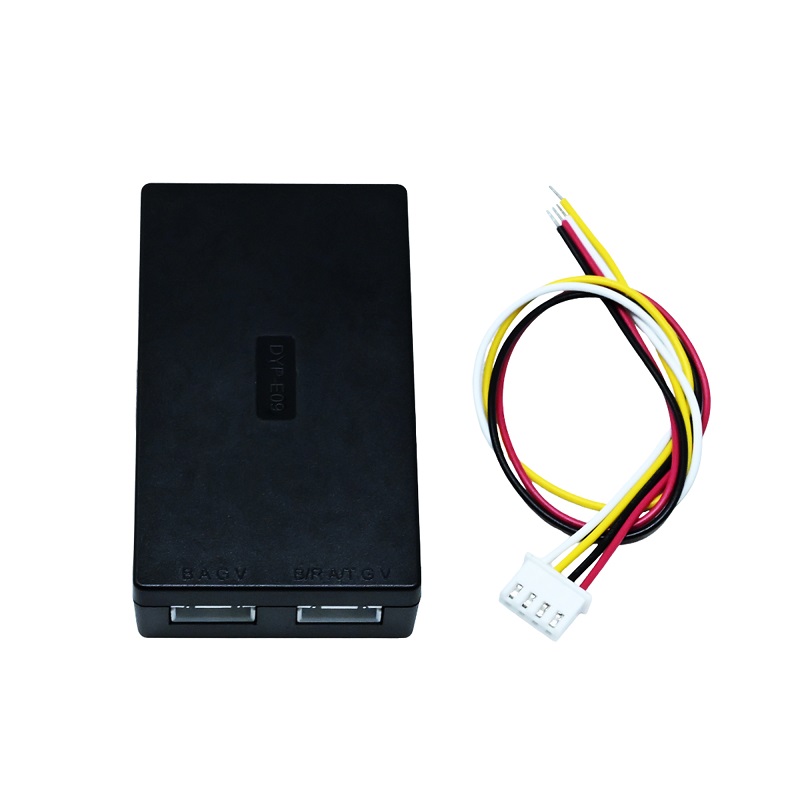

DYP DYP-E094F-V1.0 8-in-1 Converter Module - RS485 Interface

The DYP-E094F-V1.0 is an RS485 communication hub designed to interface with and manage data from up to eight separate ranging sensors. It consolidates multiple sensor inputs onto a single Modbus network, simplifying wiring and centralizing data acquisition for systems like multi-zone monitoring or robotic navigation.

This module requires a stable 12V DC power supply, drawing a maximum of 130 mA. Compatible ranging sensors (typically ultrasonic modules with RS485 output) connect to its dedicated input ports. All communication with a host controller (like a PLC or Raspberry Pi) is then handled via the module's single RS485 output port using the Modbus protocol.

Yes, the module supports two primary operational modes. In 'combined' mode, it can output pre-processed data from all connected sensors in a single packet. Alternatively, the 'polling' mode allows a host controller to sequentially request data from each individual sensor address, providing finer control over the data acquisition timing and bandwidth.

Yes, it is designed for industrial use. Key features include operation across a -15°C to +60°C temperature range and integrated electrostatic discharge (ESD) protection on its communication interfaces, compliant with the IEC61000-4-2 standard. This makes it resilient against electrical noise and transients common in factory settings.
