JXBS-3001-YL-RS-JC Stainless Steel Rain Sensor - RS485 Output

Name: JXBS-3001-YL-RS-JC Stainless Steel Rain Sensor - RS485 Output
Brand: Generic
SKU: SENS-0218
Price: 8349.00 INR
Availability: OutOfStock

₹8,349.00 (Inclusive of all taxes)

Out of Stock

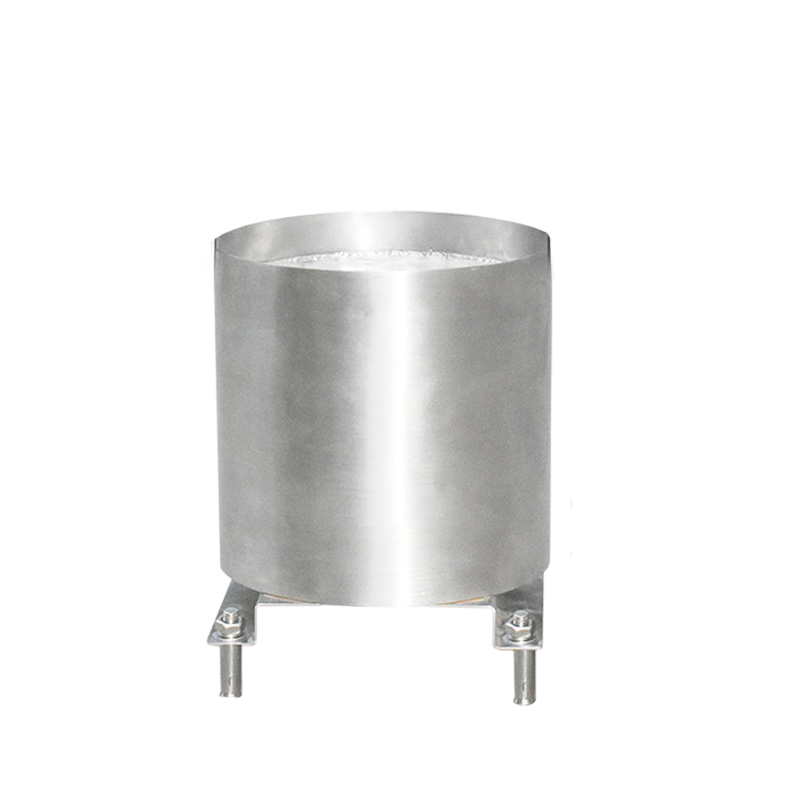

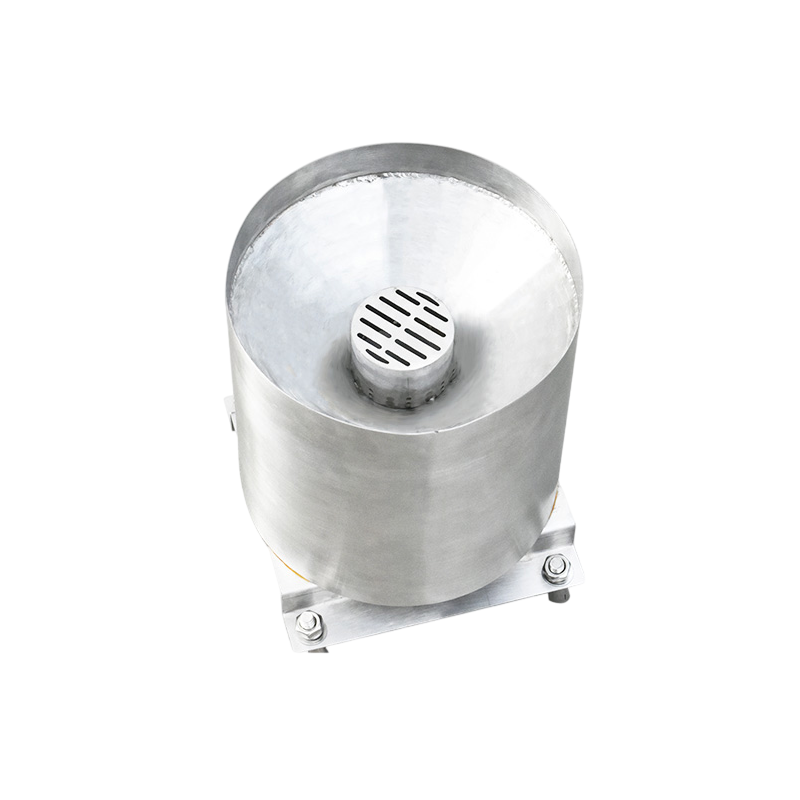

The JXBS-3001-YL-RS-JC is a stainless steel tipping bucket rain gauge with RS485 Modbus output, designed for integration into weather stations, IoT environmental monitoring systems, and industrial PLCs for precise, real-time rainfall measurement.

Features

High-precision tipping bucket mechanism for accurate rainfall measurement.
Corrosion-resistant 304 stainless steel housing for long-term outdoor durability.
RS485 Modbus communication interface for stable, long-distance data transmission.
Low power consumption (<20mA) suitable for solar-powered or remote installations.
Fast response time (≤2 seconds) for real-time precipitation monitoring.

Out of stock

Get Notified When Available

Description

The JXBS-3001-YL-RS-JC rain sensor employs a precision-engineered tipping bucket mechanism to measure liquid precipitation. Each tip corresponds to a calibrated volume of rainfall, providing a direct digital count for accurate data logging. The sensor’s robust stainless steel construction ensures reliable operation in harsh environmental conditions, resisting corrosion from rain, humidity, and temperature extremes.

Its integrated RS485 interface supports Modbus RTU protocol, enabling seamless connection to data loggers, PLCs, and IoT gateways for remote monitoring networks. The sensor’s low operating current and stable signal conditioning make it ideal for continuous, unattended operation in agricultural irrigation control, hydrological research, flood warning systems, and smart city infrastructure.

Key Features

Durable All-Weather Housing: Constructed from 304-grade stainless steel for superior corrosion resistance and mechanical strength.
Digital RS485 Modbus Output: Provides noise-immune, long-range communication compatible with industrial control systems.
High-Value Build: Optimized performance-to-cost ratio with a maintenance-free tipping bucket design.
Wide Voltage Input: Compatible with 12V DC or 24V DC power supplies for flexible system integration.
Fast-Response Sensing: Delivers real-time rainfall data with a response time of less than 2 seconds per tip.
Low Power Operation: Consumes under 20mA, making it suitable for battery or solar-powered remote stations.
Easy Mounting & Installation: Features a standard form factor with pre-drilled holes for straightforward field deployment.

Applications

Agricultural irrigation scheduling and smart farm water management systems.
Hydrological monitoring stations for river basin and watershed analysis.
Urban flood early warning and stormwater drainage network monitoring.
Integration into professional weather stations and climate research networks.
Construction site and infrastructure project environmental compliance monitoring.

Technical Specifications

Item Type	Rainfall Sensor
Model Number	JXBS-3001-YL-RS-JC
Operating Voltage	12V DC / 24V DC
Working Current	<20 mA
Response Time	≤2 seconds
Communication Interface	RS485 (Modbus RTU)
Housing Material	Stainless Steel
Length	203 mm
Width	203 mm
Weight	4000 g (4.0 kg)

Frequently Asked Questions

What is the operating voltage range for the JXBS-3001 rain sensor?

The sensor is designed to operate on a nominal 12V DC or 24V DC power supply. Ensure your power source is stable and within this specified range for correct operation and to protect the internal electronics.

How do I communicate with this sensor and what protocol does it use?

The sensor communicates via an RS485 interface, typically using the Modbus RTU protocol. You will need an RS485 to USB or RS485 to TTL converter to connect it to a computer or microcontroller. Consult the sensor's datasheet for the specific Modbus register map for reading rainfall data.

Is this sensor suitable for permanent outdoor installation?

Yes, its housing is constructed from corrosion-resistant stainless steel, making it durable for long-term, all-weather outdoor deployment. For optimal performance, mount it in an open area away from obstructions like trees or buildings that could affect rainfall collection.

What does the 'tipping bucket' mechanism mean and how is rainfall measured?

A tipping bucket is a mechanical assembly with two small buckets on a pivot. Rainwater fills one bucket, causing it to tip and empty, while the other bucket moves into place. Each tip represents a specific, calibrated volume of rainfall (e.g., 0.2mm), which is counted electronically to calculate total precipitation.
